CHIME/FRBPublic data
Repeater
FRB20180916B
Arrival, 400 MHz
2018-11-20 05:56:06.222 UTC
Right ascension
29.503°
Declination
65.717°

Loading

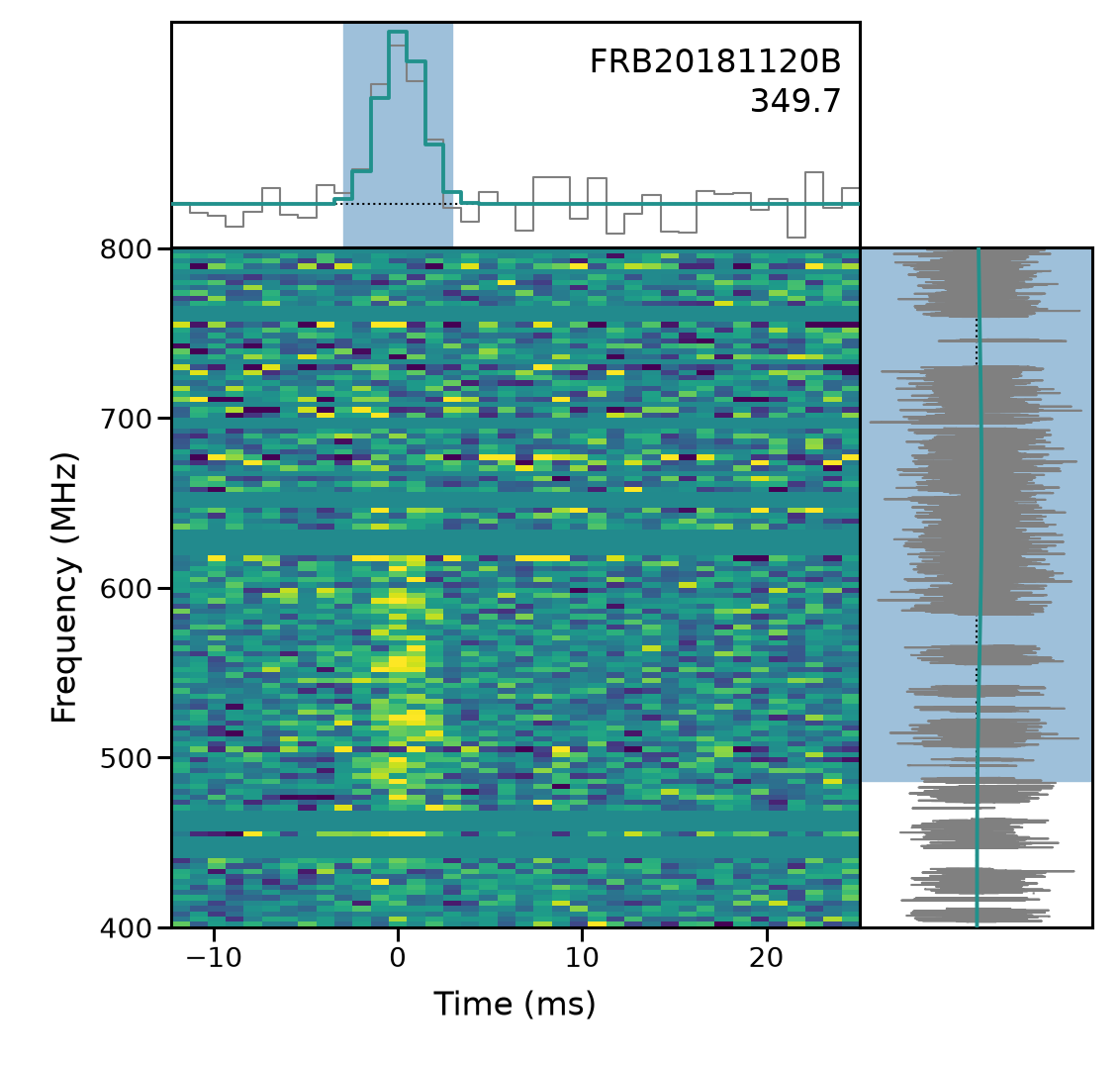

Waterfall

Notes

  • Right ascension. RA from Marcote et al. (2020)
  • Declination. Dec from Marcote et al. (2020)
  • Upper transit exposure. No error on exposure due to precise position. See Section 2.2.

Position

ra
29.503± 0.000degrees
dec
65.717± 0.000degrees
gl
129.71degrees
gb
3.73degrees

Detection and dispersion

bonsai_snr
13.4
snr_fitb
22.1
bonsai_dm
351.0pc cm⁻³
dm_fitb
349.7360± 0.04800pc cm⁻³
dm_exc_ne2001
150.8pc cm⁻³
dm_exc_ymw16
24.9pc cm⁻³

Arrival time

mjd_400
58442.2472942316± 9.00 × 10⁻⁹MJD
mjd_inf
58442.247189358± 1.70 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.001156± 0.0000870s
scat_time
<0.0013s

Flux and spectrum

flux
1.04± 0.36Jy
fluence
2.74± 0.76Jy ms
peak_freq
653.5MHz
low_freq
486.0MHz
high_freq
800.2MHz
sp_idx
25.80± 4.70
sp_run
-26.30± 4.70

Exposure and fluence thresholds

exp_up
46.06± 0.00hour
exp_low
—
low_ft_68
0.0Jy ms
up_ft_68
6.8Jy ms
low_ft_95
0.0Jy ms
up_ft_95
26.1Jy ms

Fit quality

chi_sq
321299.003
dof
321018
flag_frac
0.484
