CHIME/FRBPublic data
Repeater
FRB20180916B
Arrival, 400 MHz
2019-05-19 18:10:50.194 UTC
Right ascension
29.503°
Declination
65.717°

Loading

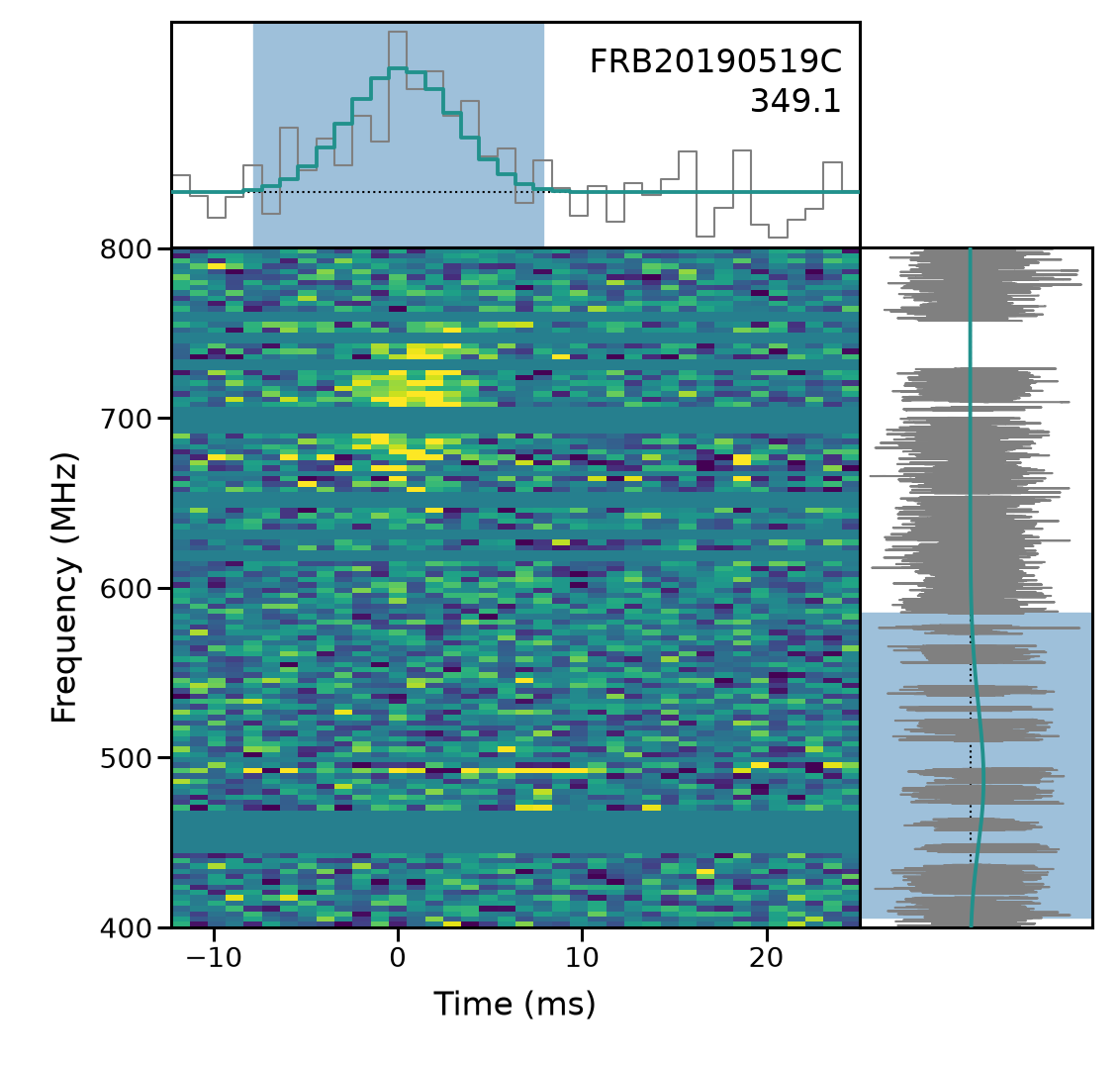

Waterfall

Notes

  • Right ascension. RA from Marcote et al. (2020)
  • Declination. Dec from Marcote et al. (2020)
  • Upper transit exposure. No error on exposure due to precise position. See Section 2.2.

Position

ra
29.503± 0.000degrees
dec
65.717± 0.000degrees
gl
129.71degrees
gb
3.73degrees

Detection and dispersion

bonsai_snr
16.4
snr_fitb
27.1
bonsai_dm
346.1pc cm⁻³
dm_fitb
349.0640± 0.01900pc cm⁻³
dm_exc_ne2001
150.1pc cm⁻³
dm_exc_ymw16
24.2pc cm⁻³

Arrival time

mjd_400
58622.7575253922± 3.90 × 10⁻⁹MJD
mjd_inf
58622.7574207202± 6.80 × 10⁻⁹MJD

Burst shape

bc_width
0.01180s
width_fitb
0.002880± 0.0001700s
scat_time
<0.0032s

Flux and spectrum

flux
0.64± 0.27Jy
fluence
4.00± 1.40Jy ms
peak_freq
487.5MHz
low_freq
405.8MHz
high_freq
585.5MHz
sp_idx
27.10± 2.90
sp_run
-68.60± 7.30

Exposure and fluence thresholds

exp_up
46.06± 0.00hour
exp_low
—
low_ft_68
0.0Jy ms
up_ft_68
6.8Jy ms
low_ft_95
0.0Jy ms
up_ft_95
26.1Jy ms

Fit quality

chi_sq
357659.801
dof
358106
flag_frac
0.425
