CHIME/FRBPublic data
Repeater
FRB20180814A
Event ID
16180649
Arrival, 400 MHz
2018-09-19 12:36:11.866 UTC
Right ascension
65.697°
Declination
73.645°

Loading

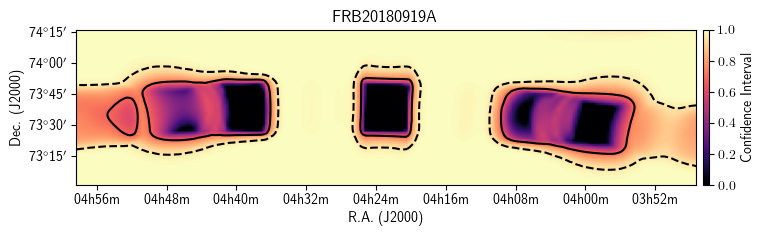

Localization

Loading

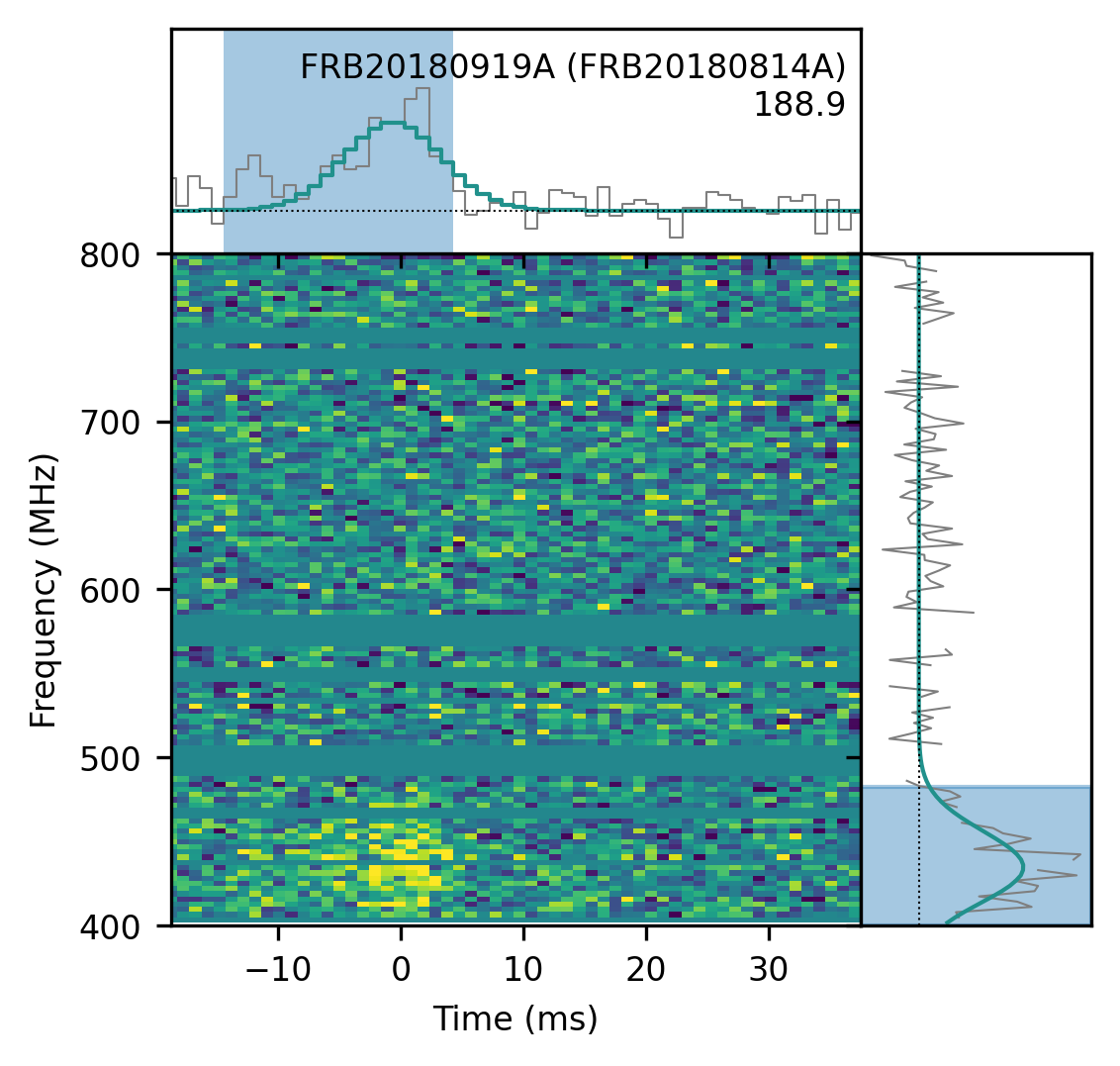

Waterfall

Notes

  • This event was included in Catalog 1.
  • The pulse emission region was extended during fluence estimation.

Position

ra
65.697± 0.211degrees
dec
73.645± 0.237degrees
gl
136.48degrees
gb
16.63degrees

Detection and dispersion

bonsai_snr
13.4
snr_fitb
19.2
bonsai_dm
190.9pc cm⁻³
dm_fitb
188.9012± 0.18327pc cm⁻³
dm_exc_ne2001
101.1pc cm⁻³
dm_exc_ymw16
80.2pc cm⁻³

Arrival time

mjd_400
58380.52513733837± 9.22 × 10⁻⁹MJD
mjd_inf
58380.52508069359± 5.57 × 10⁻⁸MJD

Burst shape

bc_width
0.01868s
width_fitb
0.003980± 0.0004225s
scat_time
0.000000s

Flux and spectrum

flux
0.49± 0.18Jy
fluence
1.85± 0.34Jy ms
peak_freq
434.7MHz
low_freq
400.2MHz
high_freq
482.8MHz
sp_idx
34.66± 6.48
sp_run
-209.38± 36.08

Exposure and fluence thresholds

exp_up
269.43± 151.42hour
exp_low
262.11± 61.08hour
low_ft_68
45.8Jy ms
up_ft_68
7.4Jy ms
low_ft_95
147.3Jy ms
up_ft_95
23.7Jy ms

Fit quality

chi_sq
1451797.674
dof
1452162
flag_frac
0.453
