CHIME/FRBPublic data

FRB 20190720A

One-off burst

Event ID
44961057
Arrival, 400 MHz
2019-07-20 12:21:31.651 UTC
Right ascension
3.480°
Declination
49.596°

Loading

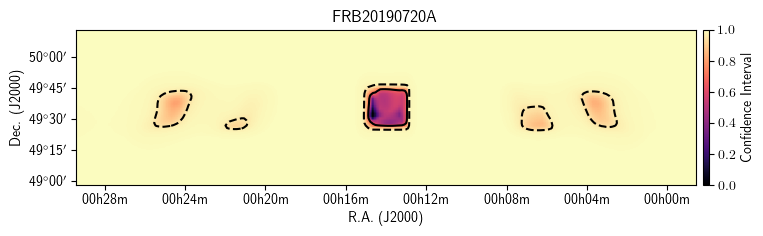

Localization

Loading

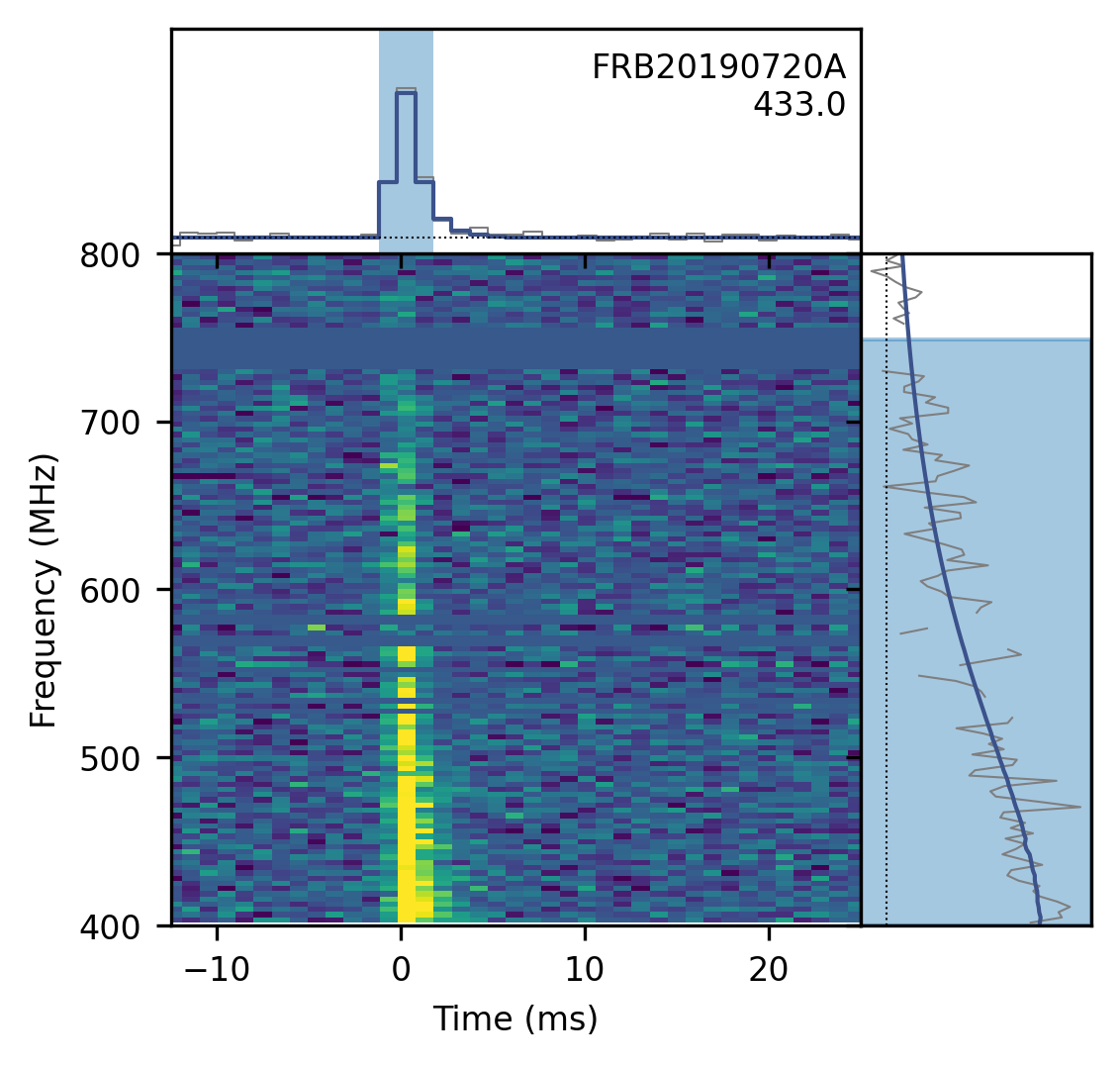

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
3.480± 0.157degrees
dec
49.596± 0.148degrees
gl
116.71degrees
gb
-12.82degrees

Detection and dispersion

bonsai_snr
51.7
snr_fitb
66.8
bonsai_dm
431.9pc cm⁻³
dm_fitb
432.9964± 0.00153pc cm⁻³
dm_exc_ne2001
324.6pc cm⁻³
dm_exc_ymw16
323.5pc cm⁻³

Arrival time

mjd_400
58684.51494966619± 2.26 × 10⁻¹⁰MJD
mjd_inf
58684.51481982589± 5.11 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000257± 0.0000077s
scat_time
0.001588± 0.0000520s

Flux and spectrum

flux
2.71± 0.82Jy
fluence
6.60± 1.98Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
748.4MHz
sp_idx
-2.26± 0.32
sp_run
-2.26± 0.57

Exposure and fluence thresholds

exp_up
155.34± 39.38hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.2Jy ms
low_ft_95
—
up_ft_95
2.1Jy ms

Fit quality

chi_sq
2075128.931
dof
2079587
flag_frac
0.216
