FRB 20190820B

One-off burst

Event ID
50248267
Arrival, 400 MHz
2019-08-20 04:02:41.805 UTC
Right ascension
268.920°
Declination
37.611°

Loading

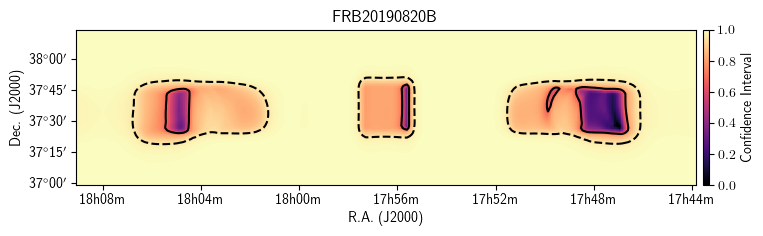

Localization

Loading

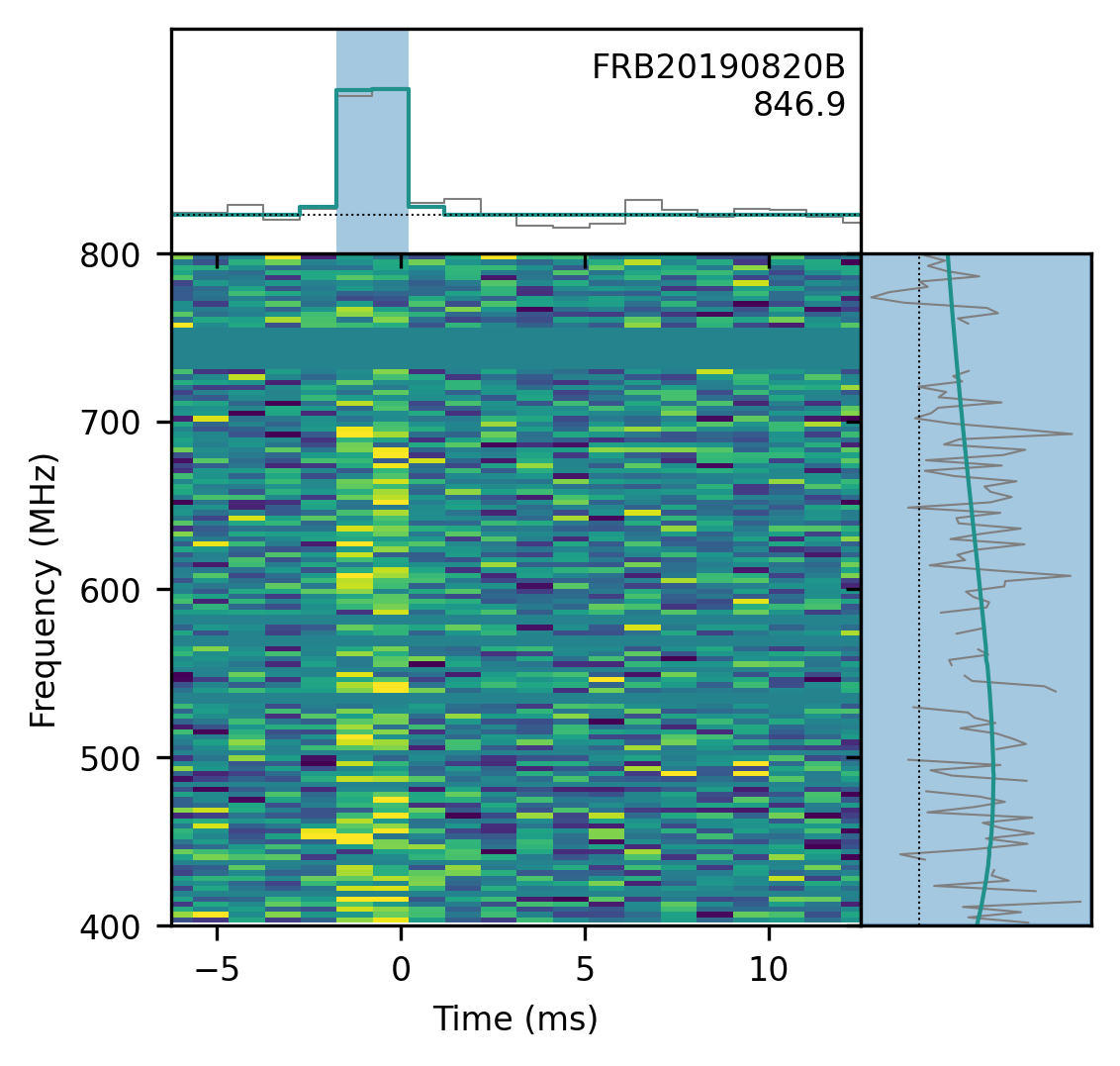

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
268.920± 0.031degrees
dec
37.611± 0.183degrees
gl
63.61degrees
gb
26.62degrees

Detection and dispersion

bonsai_snr
15.0
snr_fitb
20.3
bonsai_dm
846.0pc cm⁻³
dm_fitb
846.9124± 0.00112pc cm⁻³
dm_exc_ne2001
791.7pc cm⁻³
dm_exc_ymw16
801.8pc cm⁻³

Arrival time

mjd_400
58715.16853941097± 1.35 × 10⁻¹⁰MJD
mjd_inf
58715.1682854519± 3.61 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000224± 0.0000023s
scat_time
0.000000s

Flux and spectrum

flux
1.10± 0.30Jy
fluence
1.73± 0.37Jy ms
peak_freq
436.7MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
0.50± 1.09
sp_run
-2.89± 1.51

Exposure and fluence thresholds

exp_up
104.61± 50.18hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.8Jy ms
low_ft_95
—
up_ft_95
3.0Jy ms

Fit quality

chi_sq
2058444.362
dof
2058852
flag_frac
0.224
