FRB 20200106C

One-off burst

Event ID
67811622
Arrival, 400 MHz
2020-01-06 06:08:49.869 UTC
Right ascension
78.803°
Declination
74.955°

Loading

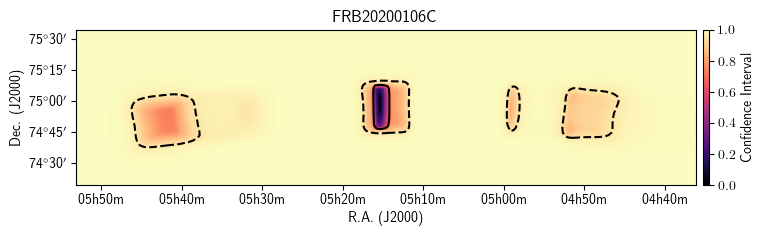

Localization

Loading

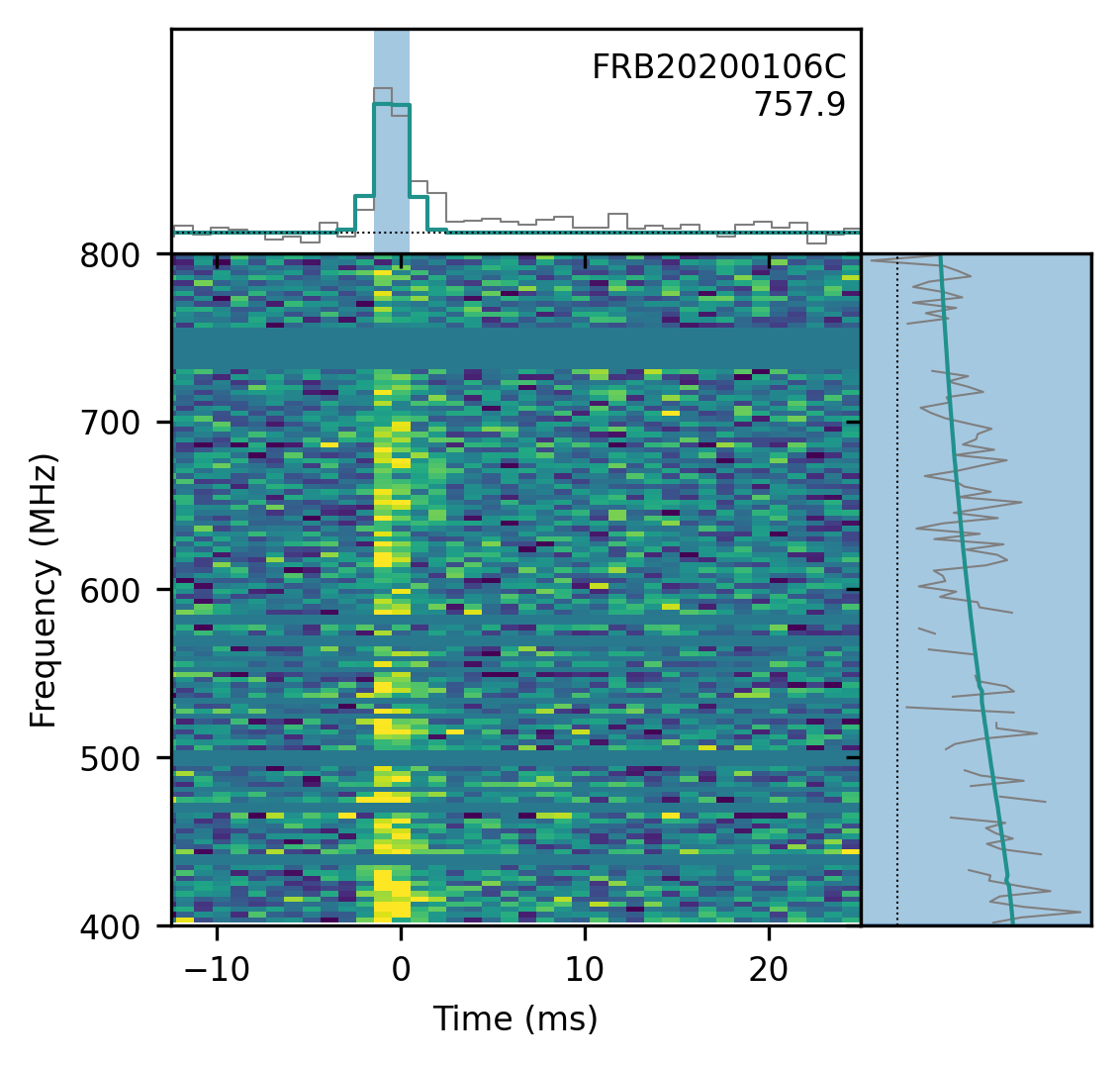

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
78.803± 0.065degrees
dec
74.955± 0.178degrees
gl
137.57degrees
gb
20.25degrees

Detection and dispersion

bonsai_snr
28.8
snr_fitb
36.3
bonsai_dm
758.6pc cm⁻³
dm_fitb
757.8576± 0.00370pc cm⁻³
dm_exc_ne2001
684.2pc cm⁻³
dm_exc_ymw16
674.0pc cm⁻³

Arrival time

mjd_400
58854.256132743096± 4.64 × 10⁻¹⁰MJD
mjd_inf
58854.255905488426± 1.20 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000688± 0.0000208s
scat_time
0.000000s

Flux and spectrum

flux
1.24± 0.40Jy
fluence
4.46± 1.28Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-1.69± 0.51
sp_run
-0.07± 0.77

Exposure and fluence thresholds

exp_up
331.39± 144.81hour
exp_low
274.48± 90.72hour
low_ft_68
9.2Jy ms
up_ft_68
1.5Jy ms
low_ft_95
15.6Jy ms
up_ft_95
2.7Jy ms

Fit quality

chi_sq
2068879.428
dof
2070192
flag_frac
0.220
