FRB 20200114B

One-off burst

Event ID
68829117
Arrival, 400 MHz
2020-01-14 10:07:08.480 UTC
Right ascension
144.363°
Declination
39.990°

Loading

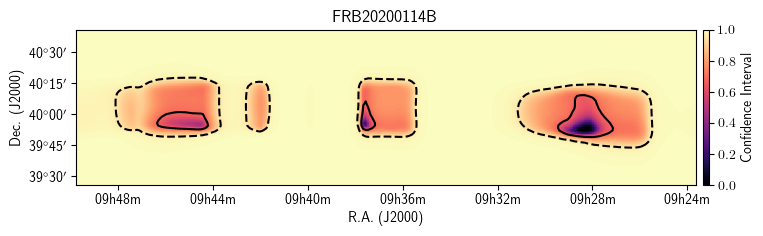

Localization

Loading

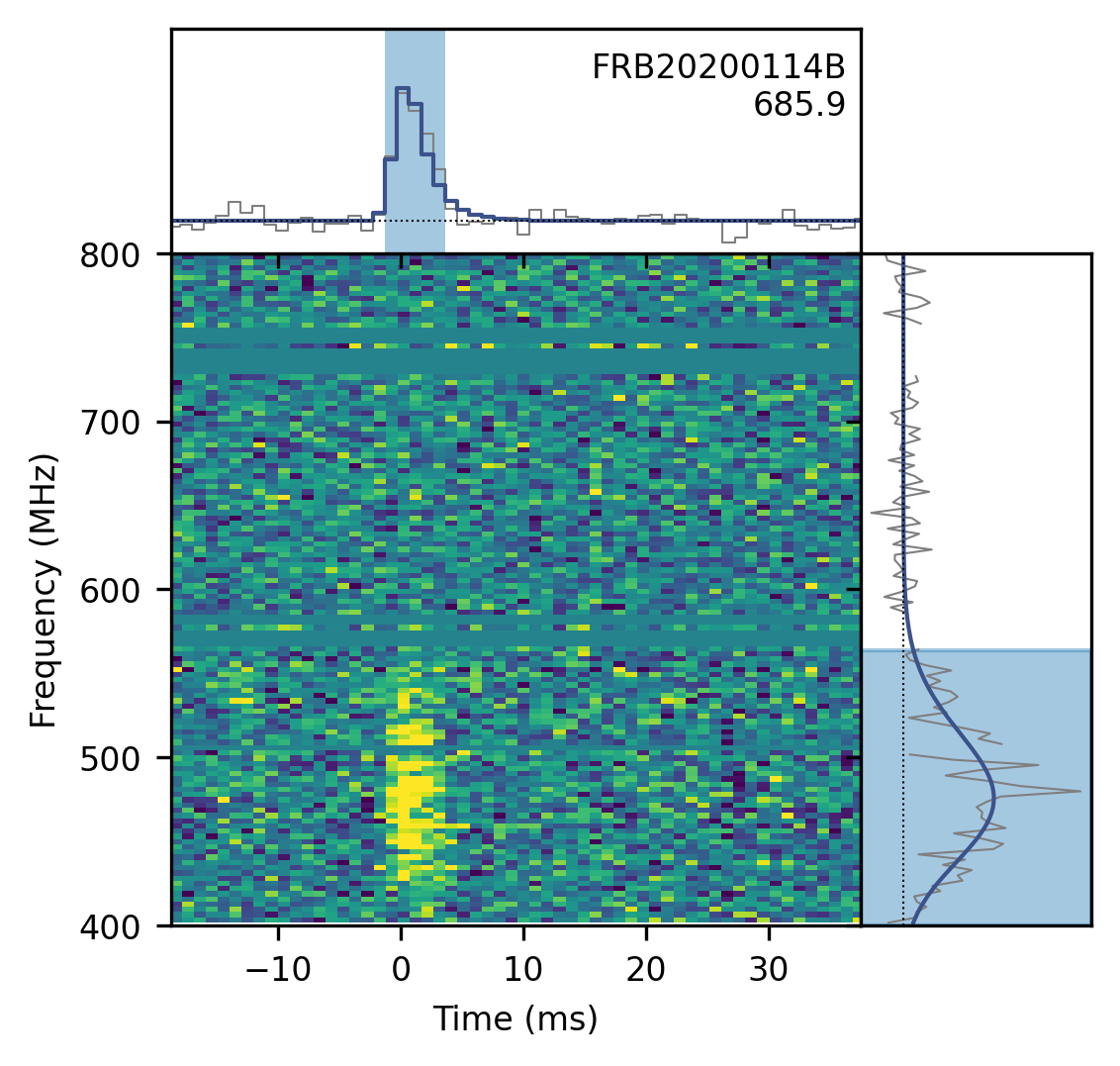

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
144.363± 0.056degrees
dec
39.990± 0.115degrees
gl
182.25degrees
gb
48.15degrees

Detection and dispersion

bonsai_snr
22.9
snr_fitb
33.0
bonsai_dm
684.2pc cm⁻³
dm_fitb
685.9483± 0.01956pc cm⁻³
dm_exc_ne2001
646.5pc cm⁻³
dm_exc_ymw16
659.4pc cm⁻³

Arrival time

mjd_400
58862.4216259207± 1.93 × 10⁻⁹MJD
mjd_inf
58862.4214202291± 6.18 × 10⁻⁹MJD

Burst shape

bc_width
0.00492s
width_fitb
0.000597± 0.0000491s
scat_time
0.003072± 0.0002452s

Flux and spectrum

flux
0.35± 0.16Jy
fluence
1.37± 0.42Jy ms
peak_freq
472.9MHz
low_freq
400.2MHz
high_freq
564.0MHz
sp_idx
24.73± 2.33
sp_run
-74.12± 6.44

Exposure and fluence thresholds

exp_up
93.86± 55.80hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.6Jy ms
low_ft_95
—
up_ft_95
1.0Jy ms

Fit quality

chi_sq
2195144.156
dof
2196227
flag_frac
0.173
