FRB 20200115D

One-off burst

Event ID
68932250
Arrival, 400 MHz
2020-01-15 06:16:41.844 UTC
Right ascension
87.964°
Declination
30.952°

Loading

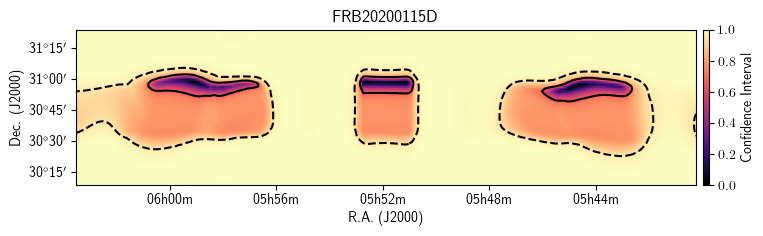

Localization

Loading

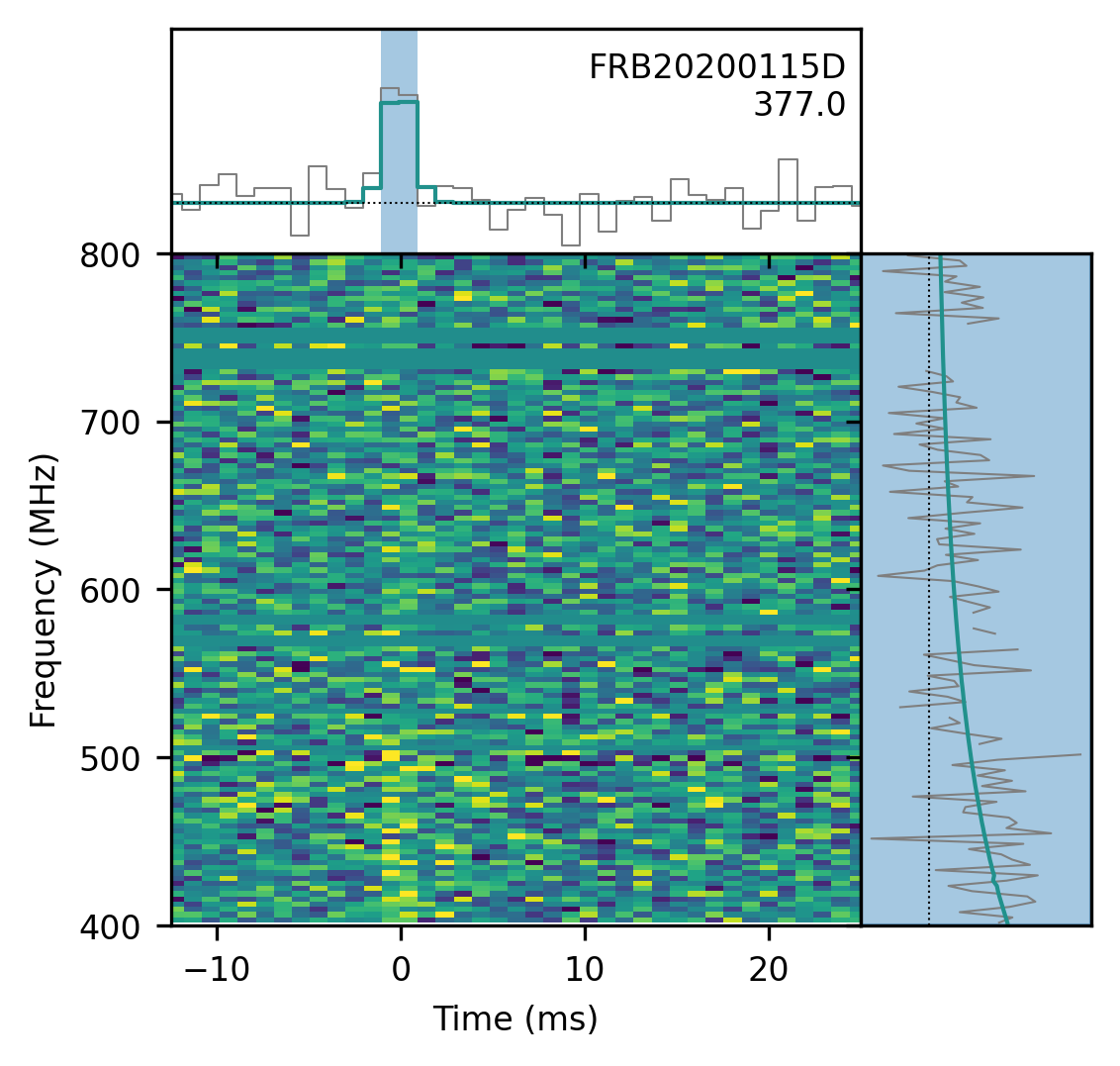

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
87.964± 0.215degrees
dec
30.952± 0.069degrees
gl
178.97degrees
gb
2.20degrees

Detection and dispersion

bonsai_snr
9.2
snr_fitb
10.8
bonsai_dm
376.9pc cm⁻³
dm_fitb
376.9750± 0.01226pc cm⁻³
dm_exc_ne2001
194.3pc cm⁻³
dm_exc_ymw16
99.9pc cm⁻³

Arrival time

mjd_400
58863.2615954143± 1.15 × 10⁻⁹MJD
mjd_inf
58863.26148237283± 3.85 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000559± 0.0000475s
scat_time
0.000000s

Flux and spectrum

flux
0.50± 0.22Jy
fluence
1.44± 0.42Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-3.15± 1.91
sp_run
0.28± 3.49

Exposure and fluence thresholds

exp_up
65.09± 52.77hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.1Jy ms
low_ft_95
—
up_ft_95
1.9Jy ms

Fit quality

chi_sq
2172628.396
dof
2172738
flag_frac
0.181
