CHIME/FRBPublic data

FRB 20200122K

One-off burst

Event ID
69833291
Arrival, 400 MHz
2020-01-22 09:34:59.137 UTC
Right ascension
144.382°
Declination
49.802°

Loading

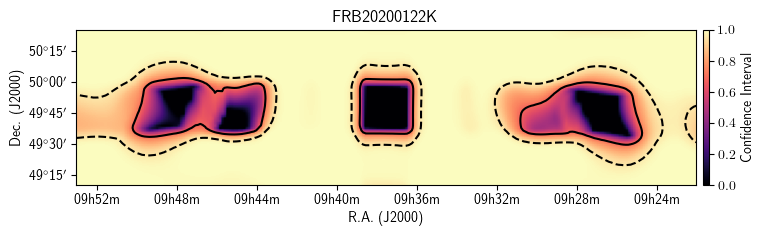

Localization

Loading

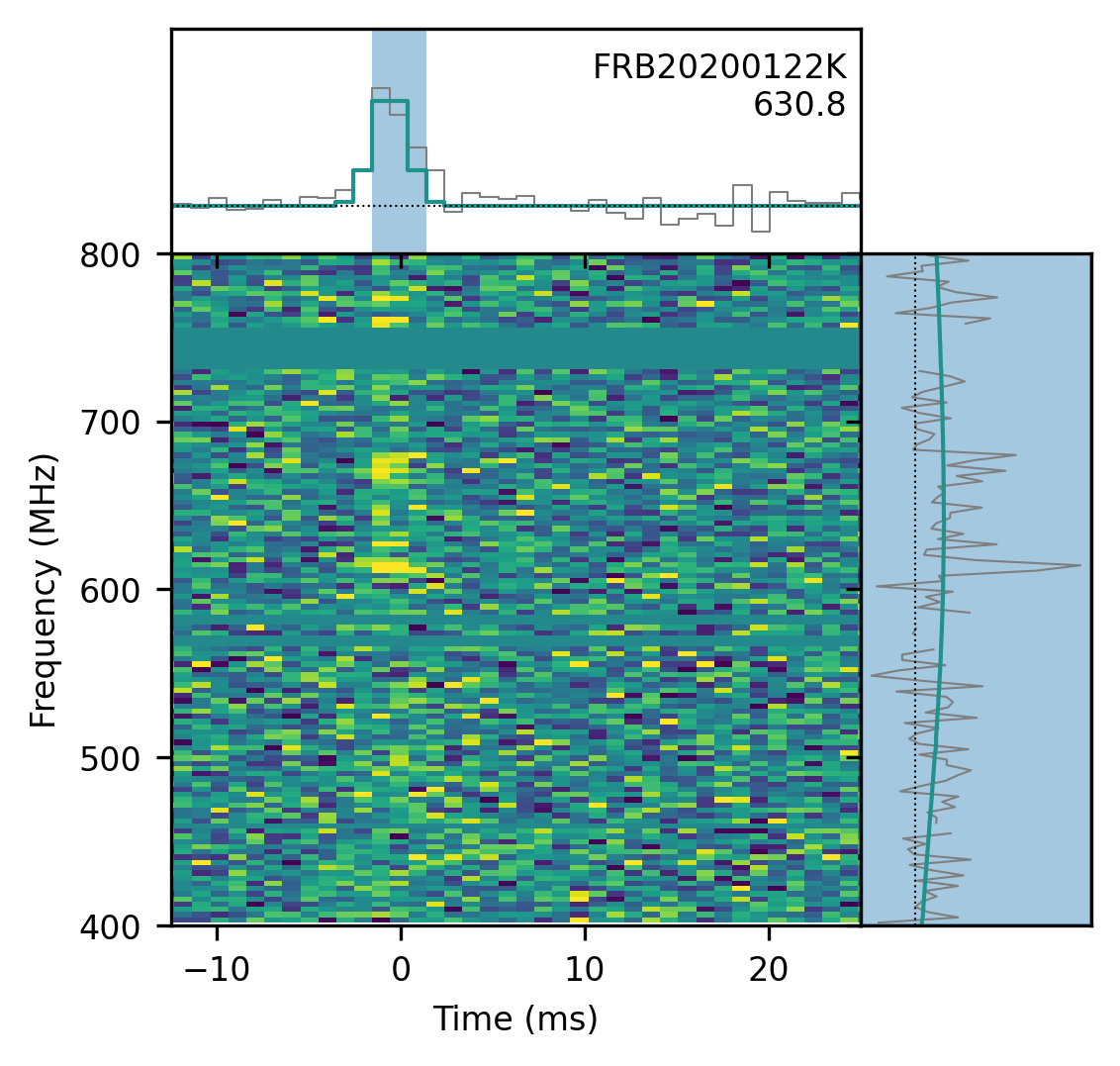

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
144.382± 0.216degrees
dec
49.802± 0.221degrees
gl
167.85degrees
gb
46.81degrees

Detection and dispersion

bonsai_snr
11.3
snr_fitb
11.9
bonsai_dm
629.2pc cm⁻³
dm_fitb
630.8035± 0.03368pc cm⁻³
dm_exc_ne2001
591.6pc cm⁻³
dm_exc_ymw16
603.3pc cm⁻³

Arrival time

mjd_400
58870.3992955674± 6.52 × 10⁻⁹MJD
mjd_inf
58870.39910641176± 1.20 × 10⁻⁸MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000827± 0.0001161s
scat_time
0.000000s

Flux and spectrum

flux
0.50± 0.30Jy
fluence
2.20± 0.78Jy ms
peak_freq
640.7MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
5.59± 3.23
sp_run
-5.94± 3.70

Exposure and fluence thresholds

exp_up
113.40± 65.18hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.7Jy ms
low_ft_95
—
up_ft_95
4.9Jy ms

Fit quality

chi_sq
2280656.576
dof
2280792
flag_frac
0.141
