CHIME/FRBPublic data
Repeater
FRB20180916B
Event ID
71785167
Arrival, 400 MHz
2020-02-04 01:17:21.350 UTC
Right ascension
31.980°
Declination
65.728°

Loading

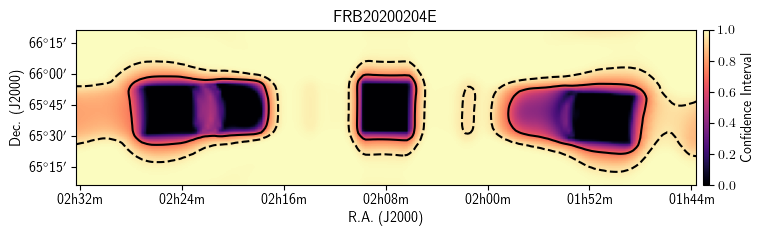

Localization

Loading

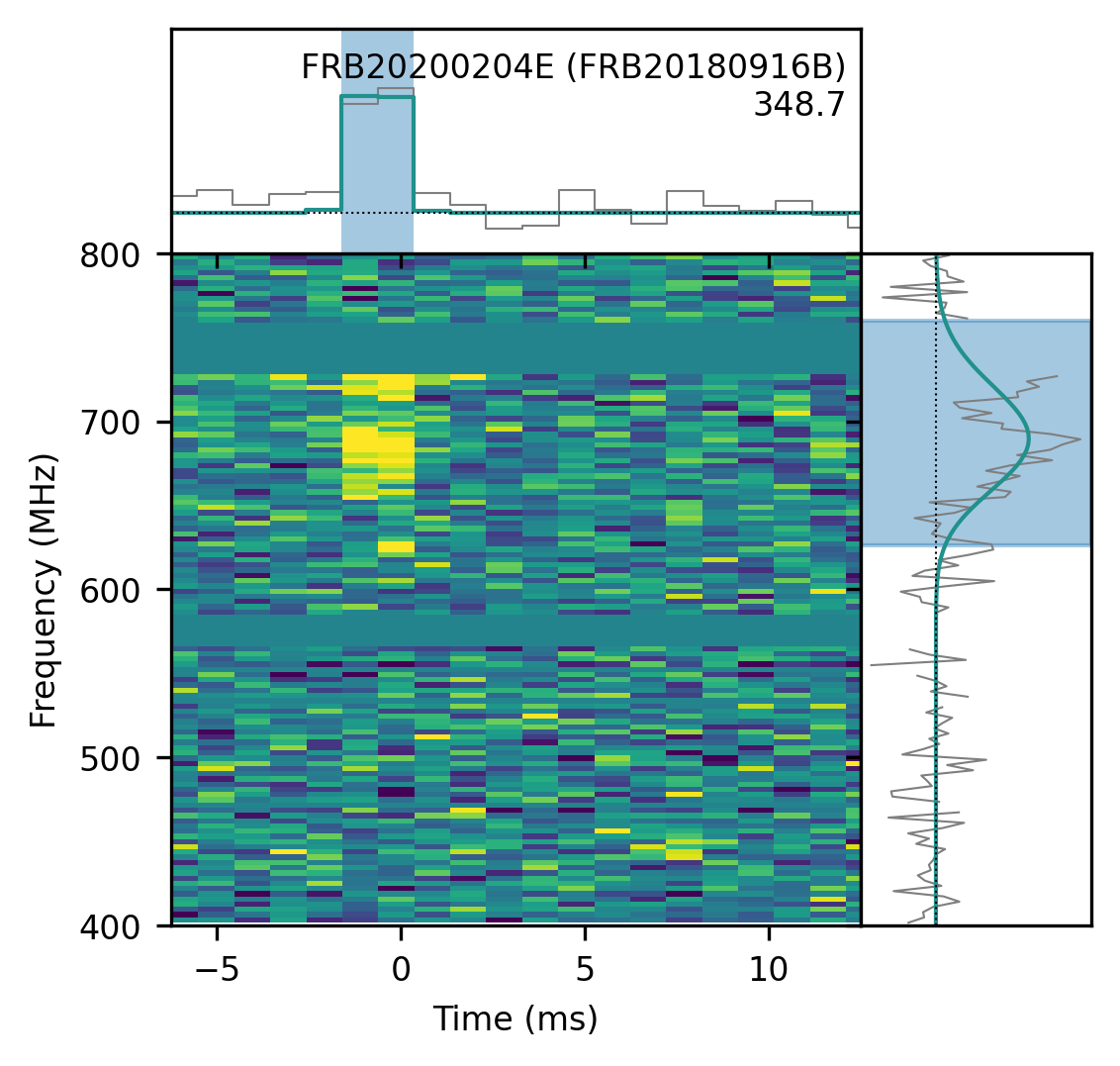

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
31.980± 0.239degrees
dec
65.728± 0.265degrees
gl
130.69degrees
gb
4.01degrees

Detection and dispersion

bonsai_snr
9.2
snr_fitb
19.7
bonsai_dm
347.8pc cm⁻³
dm_fitb
348.7429± 0.03092pc cm⁻³
dm_exc_ne2001
154.9pc cm⁻³
dm_exc_ymw16
32.5pc cm⁻³

Arrival time

mjd_400
58883.053719324525± 6.13 × 10⁻⁹MJD
mjd_inf
58883.053614748875± 1.11 × 10⁻⁸MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000320± 0.0000134s
scat_time
0.000000s

Flux and spectrum

flux
0.64± 0.31Jy
fluence
1.49± 0.49Jy ms
peak_freq
689.7MHz
low_freq
626.3MHz
high_freq
759.5MHz
sp_idx
269.38± 50.77
sp_run
-247.47± 47.03

Exposure and fluence thresholds

exp_up
182.64± 108.76hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
4.5Jy ms
low_ft_95
0.0Jy ms
up_ft_95
10.0Jy ms

Fit quality

chi_sq
2141088.632
dof
2141472
flag_frac
0.193
