FRB 20200220F

One-off burst

Event ID
73885451
Arrival, 400 MHz
2020-02-20 20:44:25.217 UTC
Right ascension
341.530°
Declination
13.632°

Loading

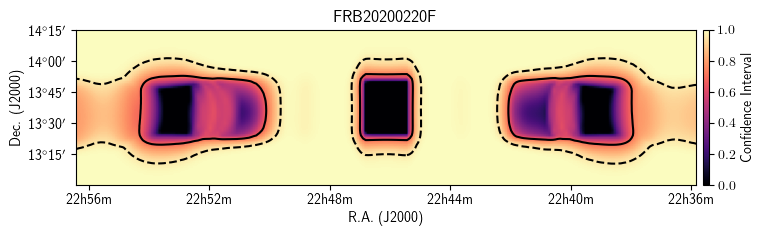

Localization

Loading

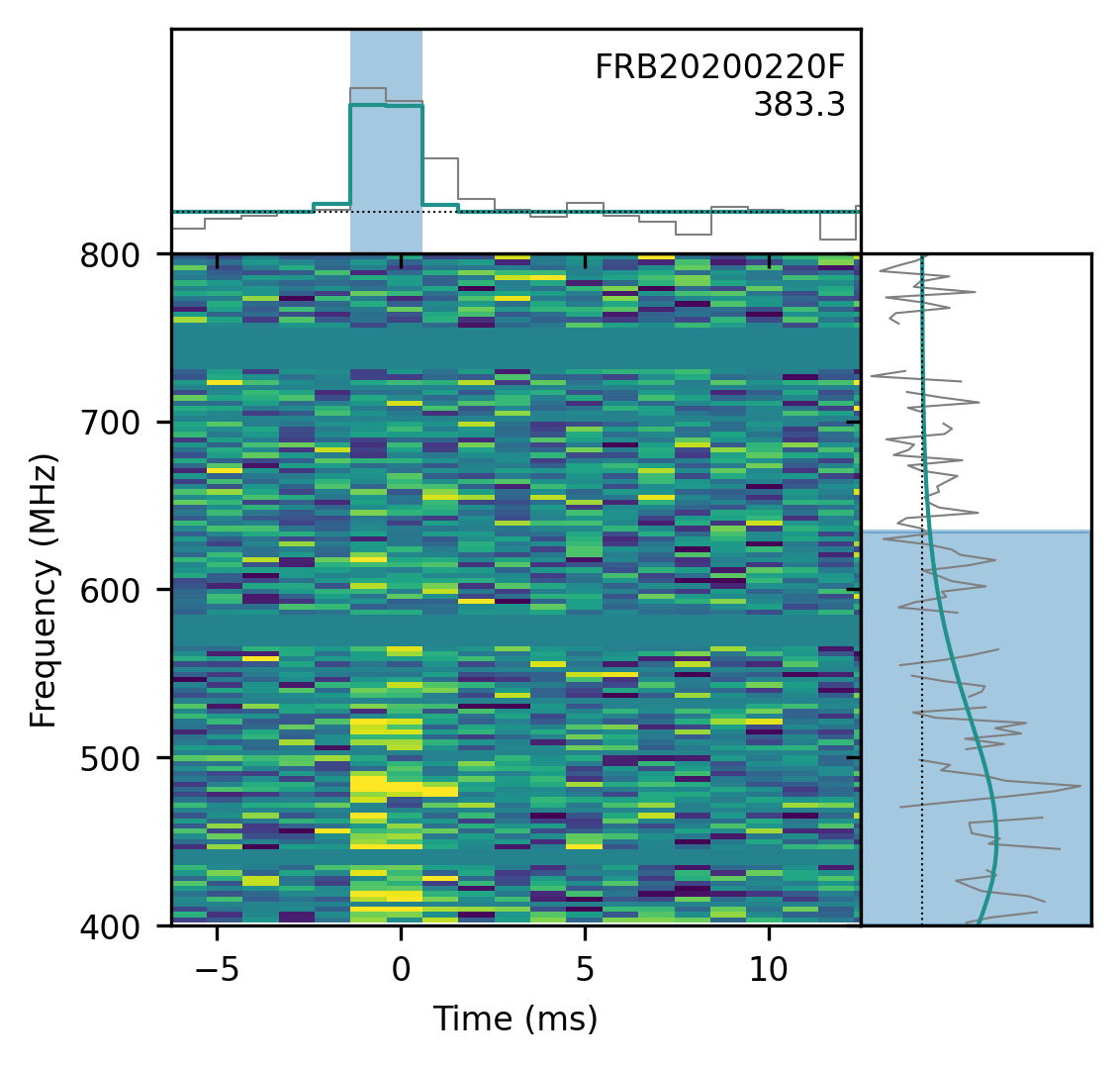

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
341.530± 0.214degrees
dec
13.632± 0.266degrees
gl
82.27degrees
gb
-39.15degrees

Detection and dispersion

bonsai_snr
12.5
snr_fitb
16.0
bonsai_dm
383.3pc cm⁻³
dm_fitb
383.3289± 0.00782pc cm⁻³
dm_exc_ne2001
343.4pc cm⁻³
dm_exc_ymw16
351.2pc cm⁻³

Arrival time

mjd_400
58899.864180754645± 6.98 × 10⁻¹⁰MJD
mjd_inf
58899.86406580787± 2.44 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000406± 0.0000221s
scat_time
0.000000s

Flux and spectrum

flux
0.48± 0.34Jy
fluence
1.44± 1.17Jy ms
peak_freq
448.9MHz
low_freq
400.2MHz
high_freq
634.6MHz
sp_idx
4.41± 1.94
sp_run
-19.21± 4.59

Exposure and fluence thresholds

exp_up
78.56± 45.55hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.3Jy ms
low_ft_95
—
up_ft_95
3.0Jy ms

Fit quality

chi_sq
1997203.319
dof
1997454
flag_frac
0.247
