FRB 20200222B

One-off burst

Event ID
74073221
Arrival, 400 MHz
2020-02-22 13:38:28.032 UTC
Right ascension
237.333°
Declination
39.734°

Loading

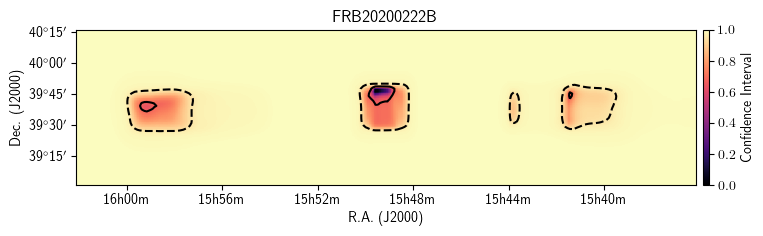

Localization

Loading

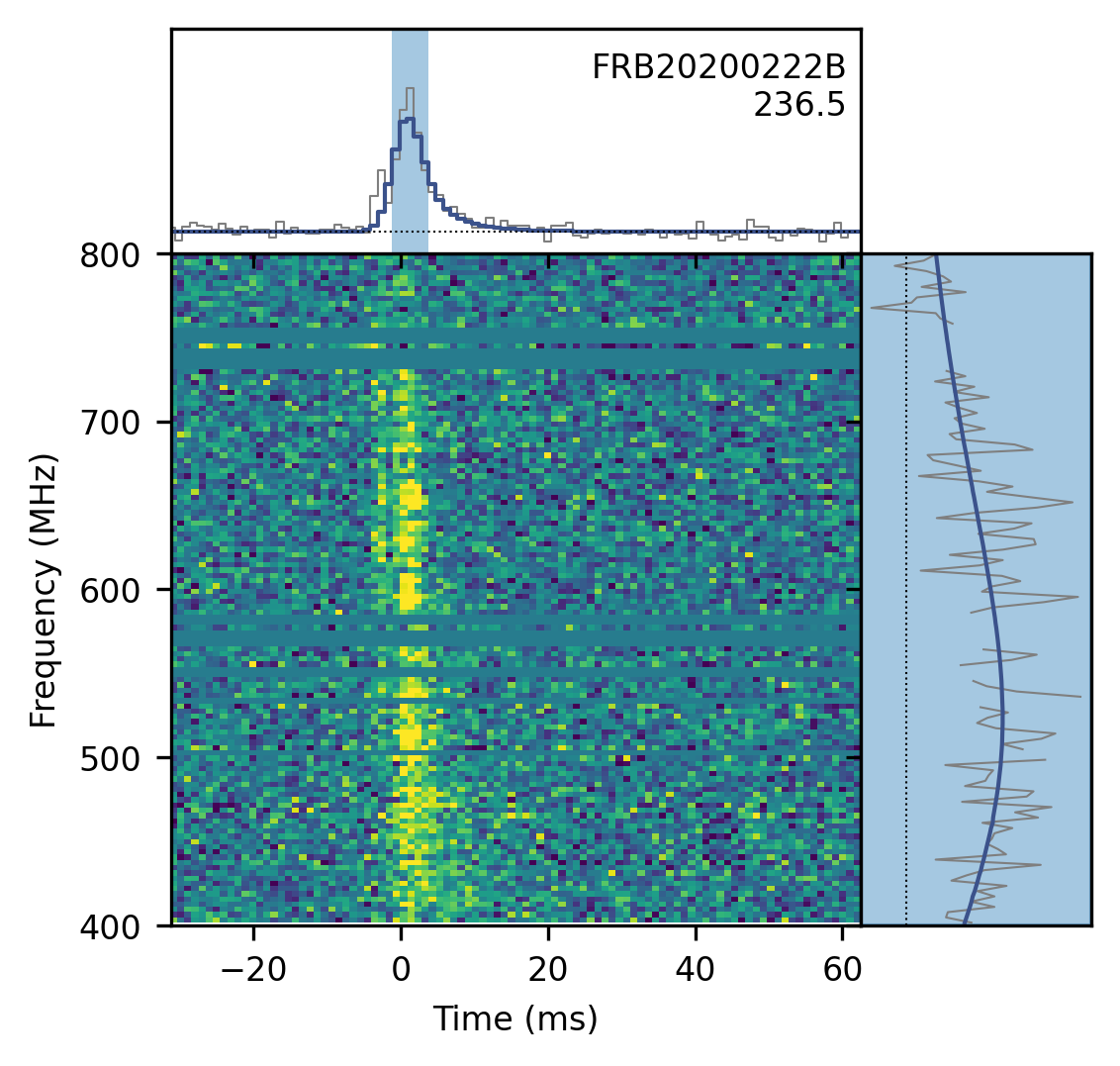

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
237.333± 0.104degrees
dec
39.734± 0.074degrees
gl
63.54degrees
gb
51.25degrees

Detection and dispersion

bonsai_snr
40.5
snr_fitb
50.8
bonsai_dm
236.2pc cm⁻³
dm_fitb
236.4748± 0.02483pc cm⁻³
dm_exc_ne2001
208.2pc cm⁻³
dm_exc_ymw16
210.8pc cm⁻³

Arrival time

mjd_400
58901.56837999978± 6.72 × 10⁻⁹MJD
mjd_inf
58901.56830908935± 1.00 × 10⁻⁸MJD

Burst shape

bc_width
0.00492s
width_fitb
0.001654± 0.0002817s
scat_time
0.006983± 0.0026838s

Flux and spectrum

flux
1.11± 0.33Jy
fluence
6.60± 1.68Jy ms
peak_freq
444.7MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
0.87± 0.57
sp_run
-4.12± 0.63

Exposure and fluence thresholds

exp_up
119.69± 32.56hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.1Jy ms
low_ft_95
—
up_ft_95
3.4Jy ms

Fit quality

chi_sq
2084787.878
dof
2087363
flag_frac
0.214
