FRB 20200222D

One-off burst

Event ID
74068048
Arrival, 400 MHz
2020-02-22 06:26:33.750 UTC
Right ascension
127.557°
Declination
14.566°

Loading

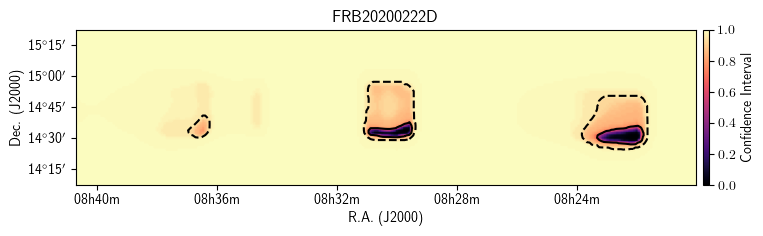

Localization

Loading

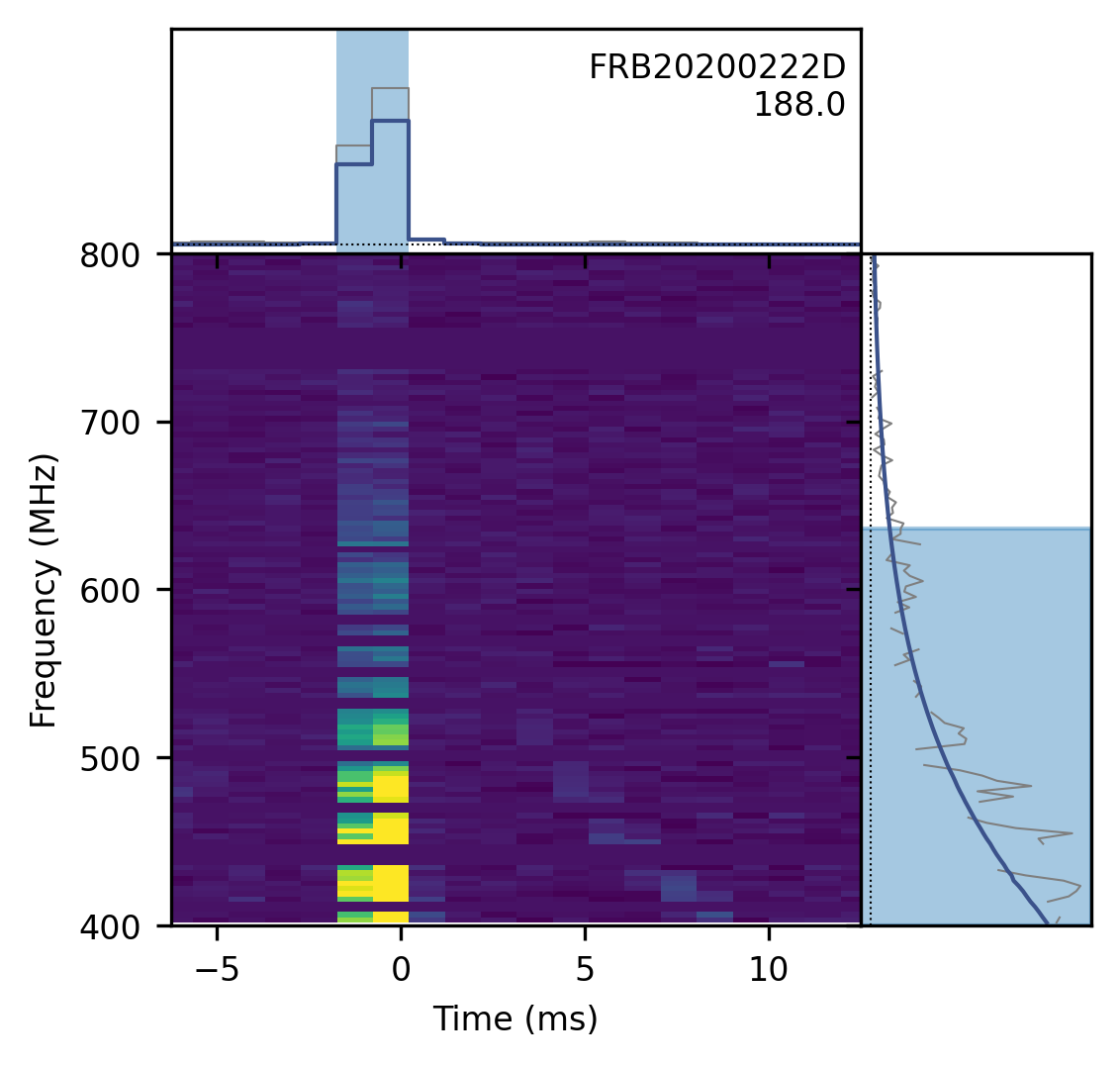

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
127.557± 0.176degrees
dec
14.566± 0.061degrees
gl
210.36degrees
gb
28.33degrees

Detection and dispersion

bonsai_snr
65.7
snr_fitb
295.7
bonsai_dm
189.2pc cm⁻³
dm_fitb
188.0371± 0.00019pc cm⁻³
dm_exc_ne2001
130.9pc cm⁻³
dm_exc_ymw16
127.0pc cm⁻³

Arrival time

mjd_400
58901.26844618543± 1.93 × 10⁻¹¹MJD
mjd_inf
58901.268389799756± 6.07 × 10⁻¹¹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000233± 0.0000005s
scat_time
0.000274± 0.0000005s

Flux and spectrum

flux
8.72± 3.53Jy
fluence
14.35± 5.59Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
636.3MHz
sp_idx
-3.63± 0.08
sp_run
-2.89± 0.16

Exposure and fluence thresholds

exp_up
36.32± 43.46hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.5Jy ms
low_ft_95
—
up_ft_95
2.8Jy ms

Fit quality

chi_sq
1754507.160
dof
1841933
flag_frac
0.306
