FRB 20200224D

One-off burst

Event ID
74412396
Arrival, 400 MHz
2020-02-24 14:00:31.934 UTC
Right ascension
243.246°
Declination
55.199°

Loading

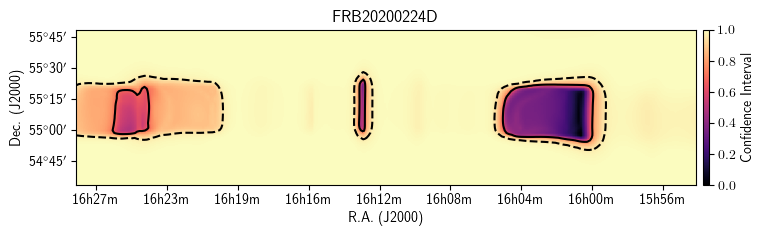

Localization

Loading

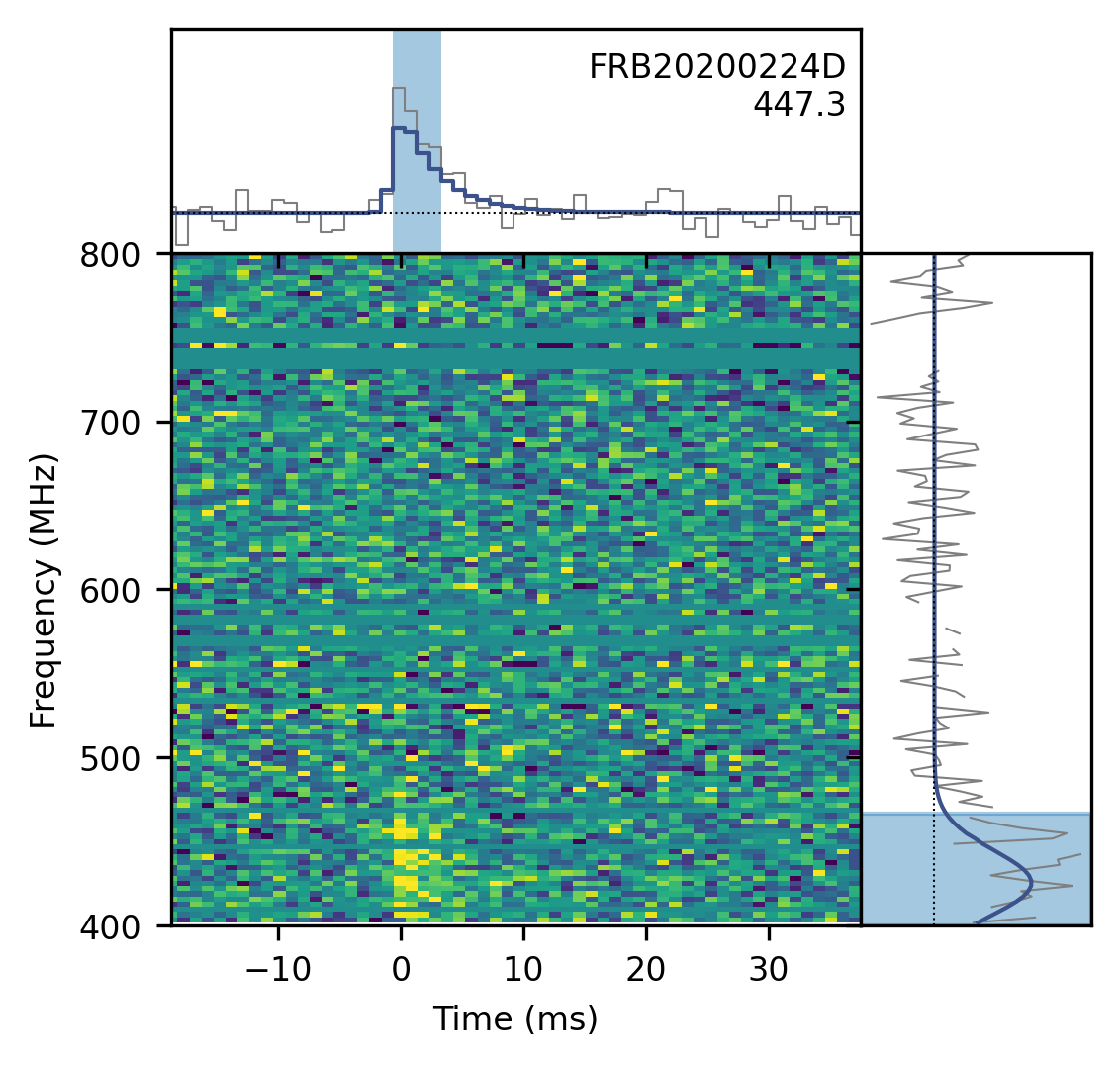

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
243.246± 0.025degrees
dec
55.199± 0.210degrees
gl
85.04degrees
gb
44.29degrees

Detection and dispersion

bonsai_snr
9.6
snr_fitb
13.7
bonsai_dm
449.7pc cm⁻³
dm_fitb
447.2513± 0.03922pc cm⁻³
dm_exc_ne2001
410.5pc cm⁻³
dm_exc_ymw16
418.0pc cm⁻³

Arrival time

mjd_400
58903.583702936296± 1.84 × 10⁻⁹MJD
mjd_inf
58903.58356882145± 1.19 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.000175± 0.0000979s
scat_time
0.004073± 0.0006140s

Flux and spectrum

flux
0.23± 0.11Jy
fluence
0.65± 0.31Jy ms
peak_freq
423.6MHz
low_freq
400.2MHz
high_freq
466.9MHz
sp_idx
27.71± 9.77
sp_run
-243.61± 58.12

Exposure and fluence thresholds

exp_up
129.41± 72.53hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.4Jy ms
low_ft_95
—
up_ft_95
0.7Jy ms

Fit quality

chi_sq
2125899.522
dof
2126081
flag_frac
0.199
