CHIME/FRBPublic data

FRB 20200306A

One-off burst

Event ID
75827544
Arrival, 400 MHz
2020-03-06 04:21:30.686 UTC
Right ascension
113.572°
Declination
61.816°

Loading

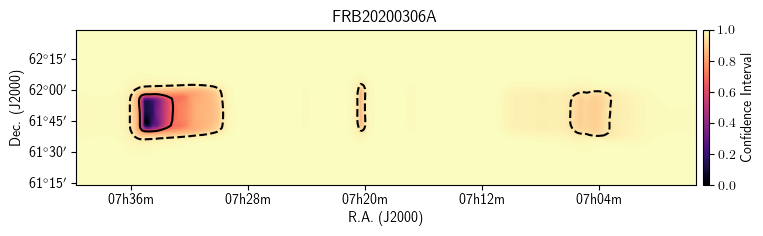

Localization

Loading

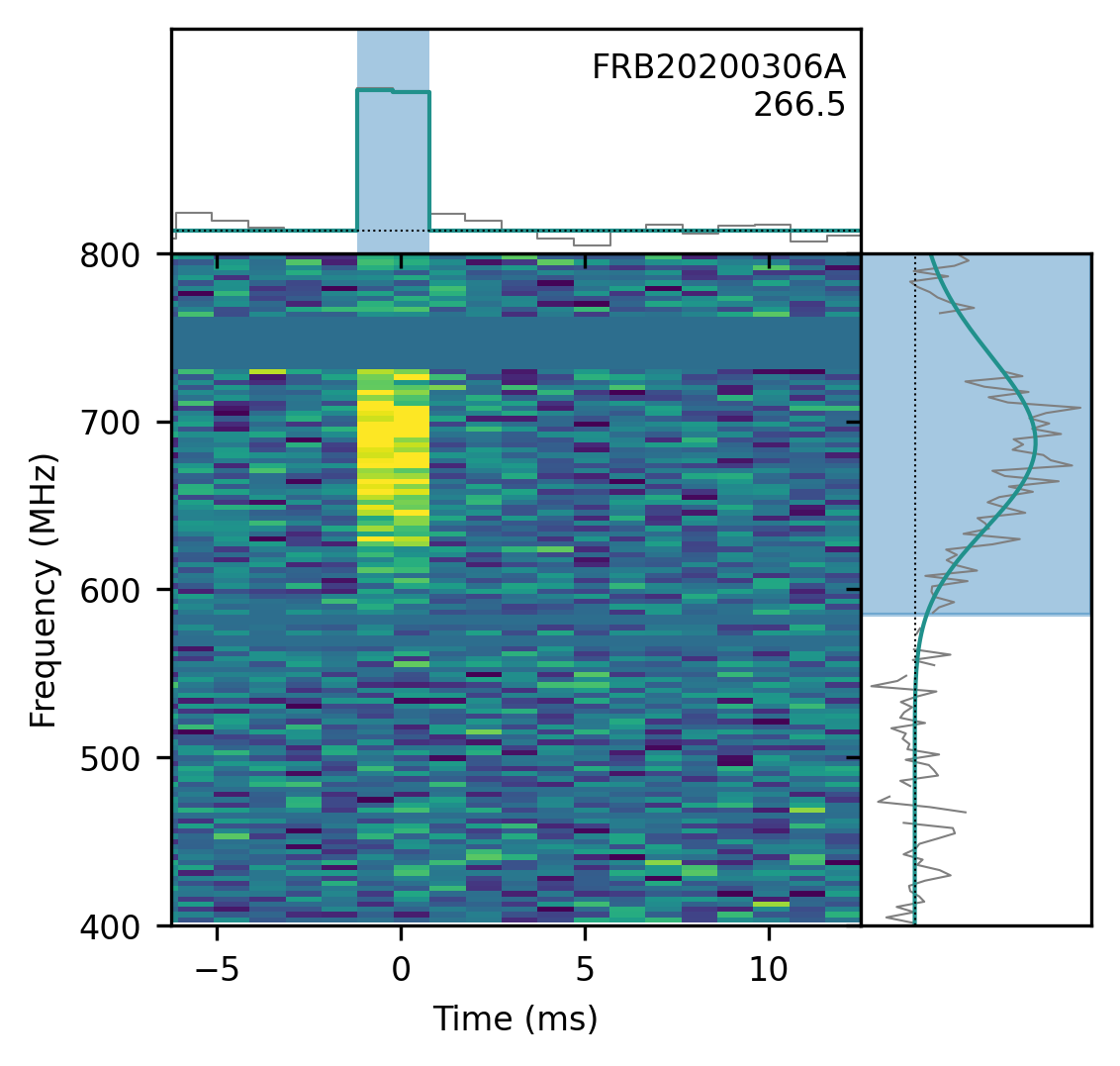

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
113.572± 0.137degrees
dec
61.816± 0.151degrees
gl
154.87degrees
gb
28.69degrees

Detection and dispersion

bonsai_snr
21.9
snr_fitb
44.5
bonsai_dm
266.9pc cm⁻³
dm_fitb
266.4741± 0.00334pc cm⁻³
dm_exc_ne2001
210.2pc cm⁻³
dm_exc_ymw16
212.0pc cm⁻³

Arrival time

mjd_400
58914.18160516103± 6.60 × 10⁻¹⁰MJD
mjd_inf
58914.18152525489± 1.20 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000188± 0.0000017s
scat_time
0.000000s

Flux and spectrum

flux
1.09± 0.41Jy
fluence
2.45± 0.83Jy ms
peak_freq
687.4MHz
low_freq
585.2MHz
high_freq
800.2MHz
sp_idx
96.07± 6.77
sp_run
-88.79± 6.29

Exposure and fluence thresholds

exp_up
185.61± 81.61hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.6Jy ms
low_ft_95
—
up_ft_95
2.8Jy ms

Fit quality

chi_sq
2181132.711
dof
2183106
flag_frac
0.177
