CHIME/FRBPublic data
Repeater
FRB20200308B
Event ID
76199216
Arrival, 400 MHz
2020-03-08 15:03:22.440 UTC
Right ascension
271.944°
Declination
22.346°

Loading

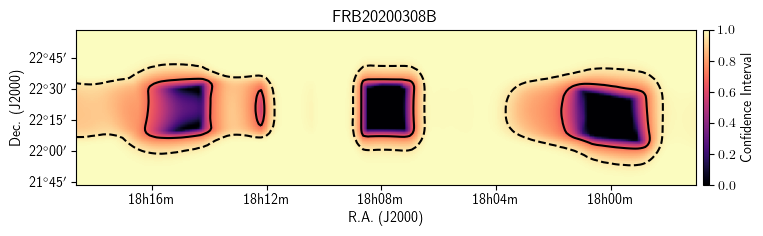

Localization

Loading

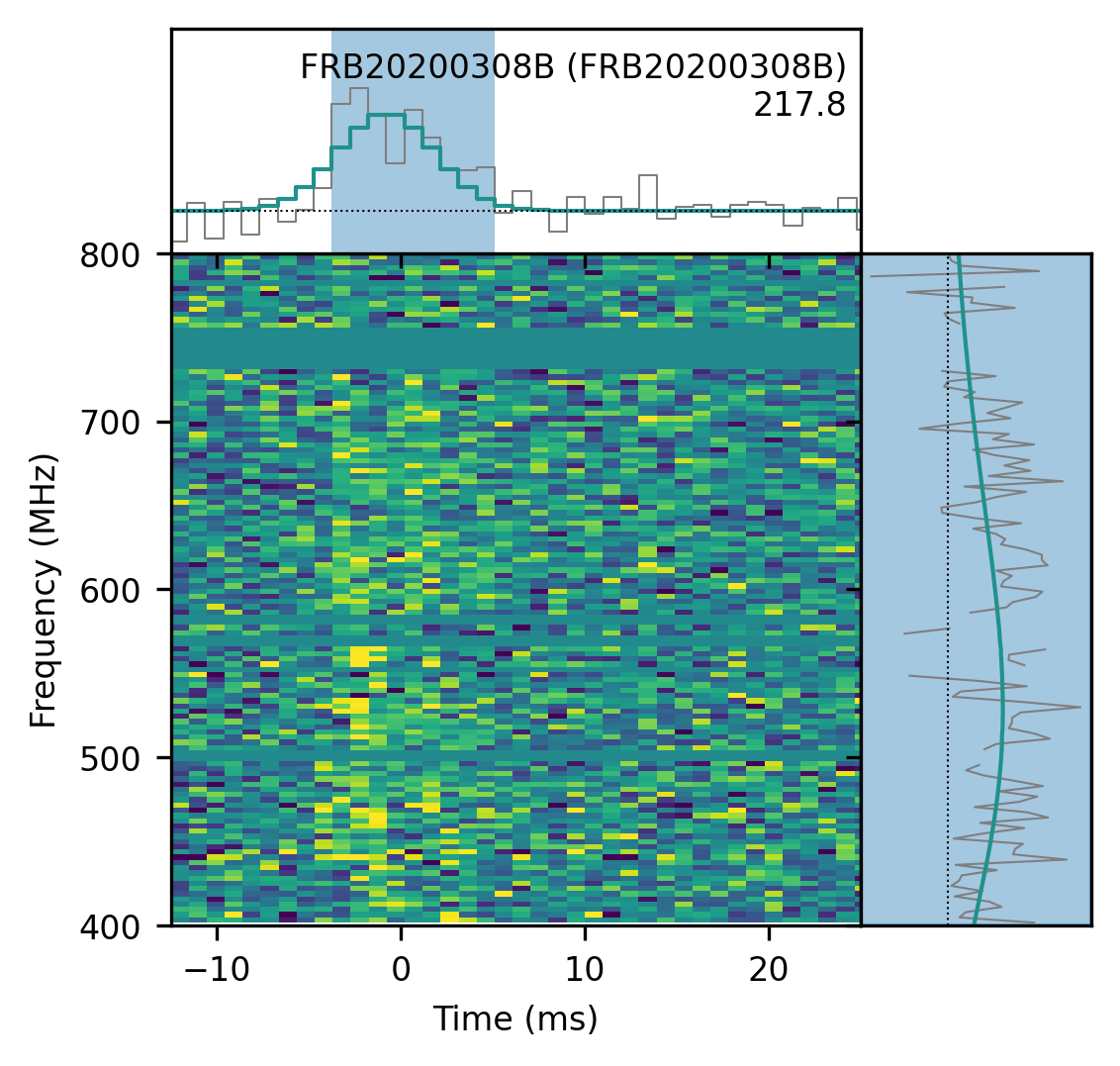

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
271.944± 0.213degrees
dec
22.346± 0.232degrees
gl
48.82degrees
gb
19.22degrees

Detection and dispersion

bonsai_snr
13.5
snr_fitb
16.3
bonsai_dm
216.7pc cm⁻³
dm_fitb
217.8395± 0.05021pc cm⁻³
dm_exc_ne2001
134.3pc cm⁻³
dm_exc_ymw16
150.2pc cm⁻³

Arrival time

mjd_400
58916.62734306079± 7.12 × 10⁻⁹MJD
mjd_inf
58916.62727773843± 1.67 × 10⁻⁸MJD

Burst shape

bc_width
0.00885s
width_fitb
0.002595± 0.0002060s
scat_time
0.000000s

Flux and spectrum

flux
0.83± 0.31Jy
fluence
5.18± 1.25Jy ms
peak_freq
529.0MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
5.37± 1.53
sp_run
-9.61± 2.27

Exposure and fluence thresholds

exp_up
81.80± 48.12hour
exp_low
0.00± 0.00hour
low_ft_68
0.0Jy ms
up_ft_68
3.5Jy ms
low_ft_95
0.0Jy ms
up_ft_95
5.8Jy ms

Fit quality

chi_sq
2117399.241
dof
2117658
flag_frac
0.202
