FRB 20200314B

One-off burst

Event ID
77110316
Arrival, 400 MHz
2020-03-14 23:10:03.964 UTC
Right ascension
41.145°
Declination
26.129°

Loading

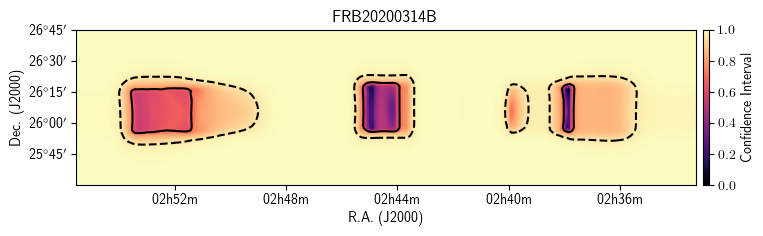

Localization

Loading

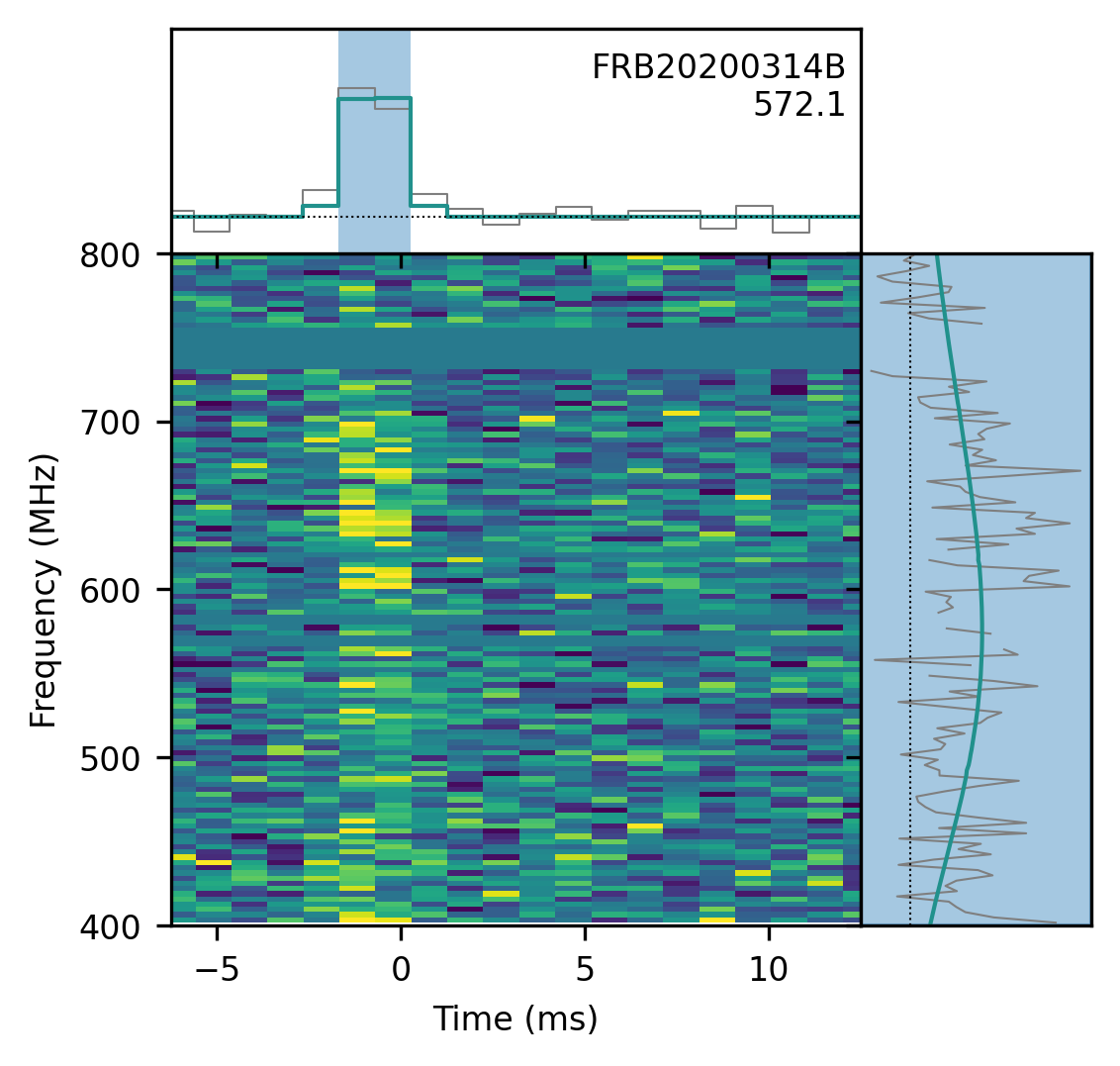

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
41.145± 0.148degrees
dec
26.129± 0.201degrees
gl
152.42degrees
gb
-30.19degrees

Detection and dispersion

bonsai_snr
15.1
snr_fitb
20.8
bonsai_dm
571.0pc cm⁻³
dm_fitb
572.1054± 0.00837pc cm⁻³
dm_exc_ne2001
517.9pc cm⁻³
dm_exc_ymw16
523.3pc cm⁻³

Arrival time

mjd_400
58922.96532365778± 1.39 × 10⁻⁹MJD
mjd_inf
58922.96515210362± 2.87 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000456± 0.0000243s
scat_time
0.000000s

Flux and spectrum

flux
0.94± 0.34Jy
fluence
2.51± 0.73Jy ms
peak_freq
572.1MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
6.37± 1.94
sp_run
-8.92± 2.35

Exposure and fluence thresholds

exp_up
92.27± 45.96hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.3Jy ms
low_ft_95
—
up_ft_95
3.9Jy ms

Fit quality

chi_sq
2227552.892
dof
2227980
flag_frac
0.161
