CHIME/FRBPublic data

FRB 20200316B

One-off burst

Event ID
77254167
Arrival, 400 MHz
2020-03-16 12:49:21.571 UTC
Right ascension
246.714°
Declination
57.926°

Loading

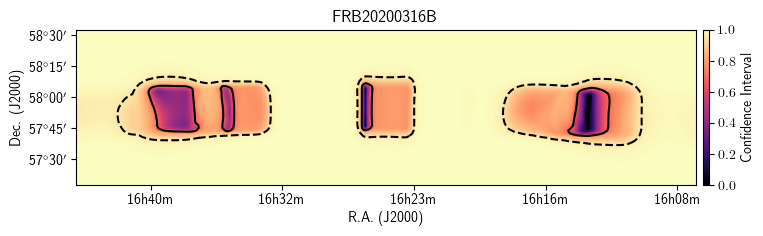

Localization

Loading

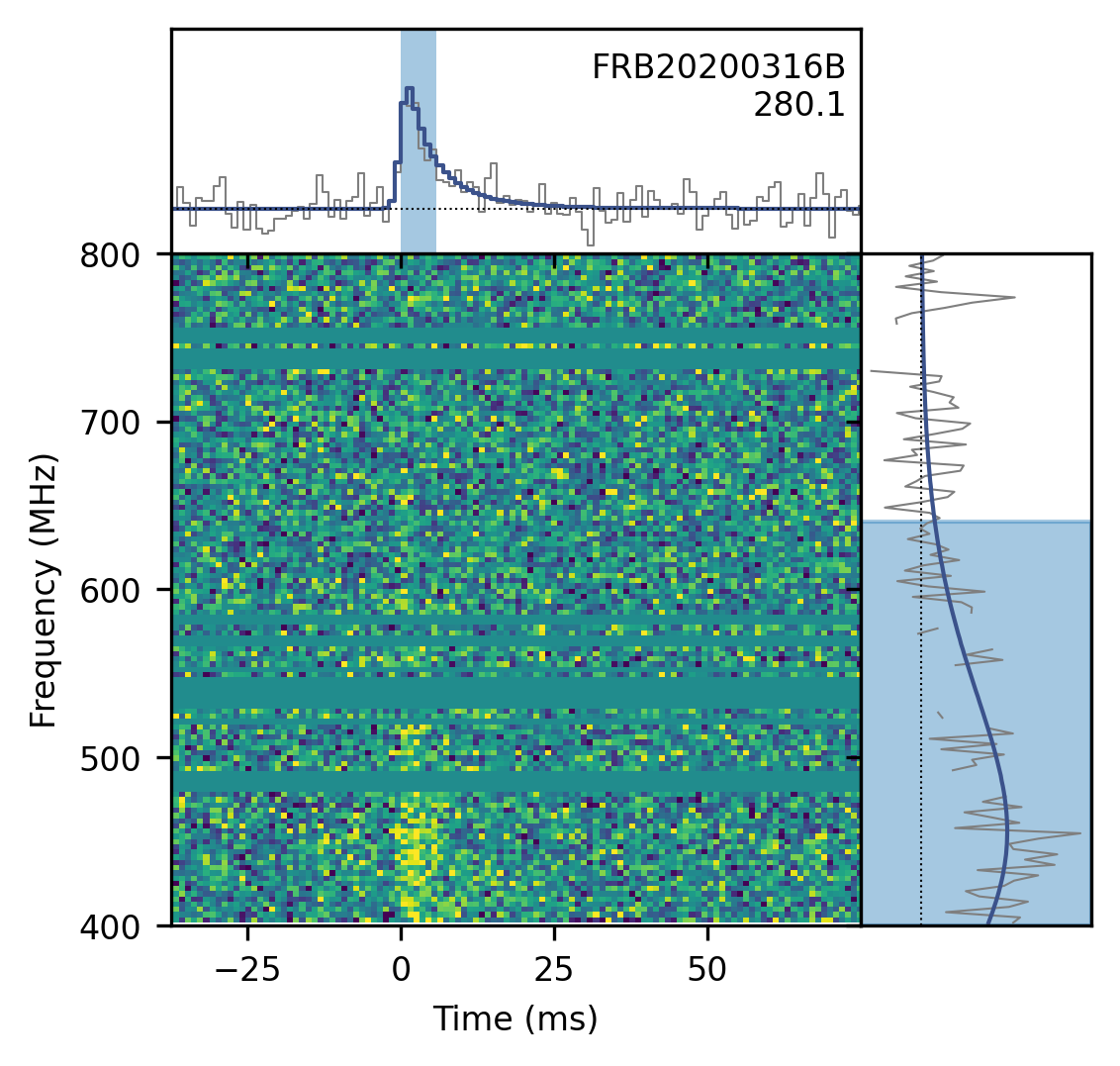

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
246.714± 0.043degrees
dec
57.926± 0.190degrees
gl
87.88degrees
gb
41.69degrees

Detection and dispersion

bonsai_snr
14.5
snr_fitb
21.9
bonsai_dm
281.4pc cm⁻³
dm_fitb
280.1391± 0.02750pc cm⁻³
dm_exc_ne2001
242.2pc cm⁻³
dm_exc_ymw16
249.2pc cm⁻³

Arrival time

mjd_400
58924.534277437655± 3.23 × 10⁻⁹MJD
mjd_inf
58924.53419343385± 8.86 × 10⁻⁹MJD

Burst shape

bc_width
0.00590s
width_fitb
0.000744± 0.0002200s
scat_time
0.009805± 0.0013986s

Flux and spectrum

flux
0.48± 0.17Jy
fluence
3.48± 0.80Jy ms
peak_freq
418.1MHz
low_freq
400.2MHz
high_freq
640.2MHz
sp_idx
1.11± 1.29
sp_run
-12.68± 2.87

Exposure and fluence thresholds

exp_up
147.43± 76.30hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.5Jy ms
low_ft_95
—
up_ft_95
2.5Jy ms

Fit quality

chi_sq
2164327.748
dof
2164799
flag_frac
0.184
