FRB 20200317B

One-off burst

Event ID
77407095
Arrival, 400 MHz
2020-03-17 11:33:16.092 UTC
Right ascension
228.057°
Declination
30.983°

Loading

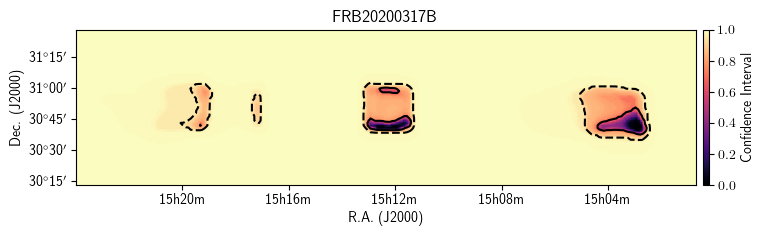

Localization

Loading

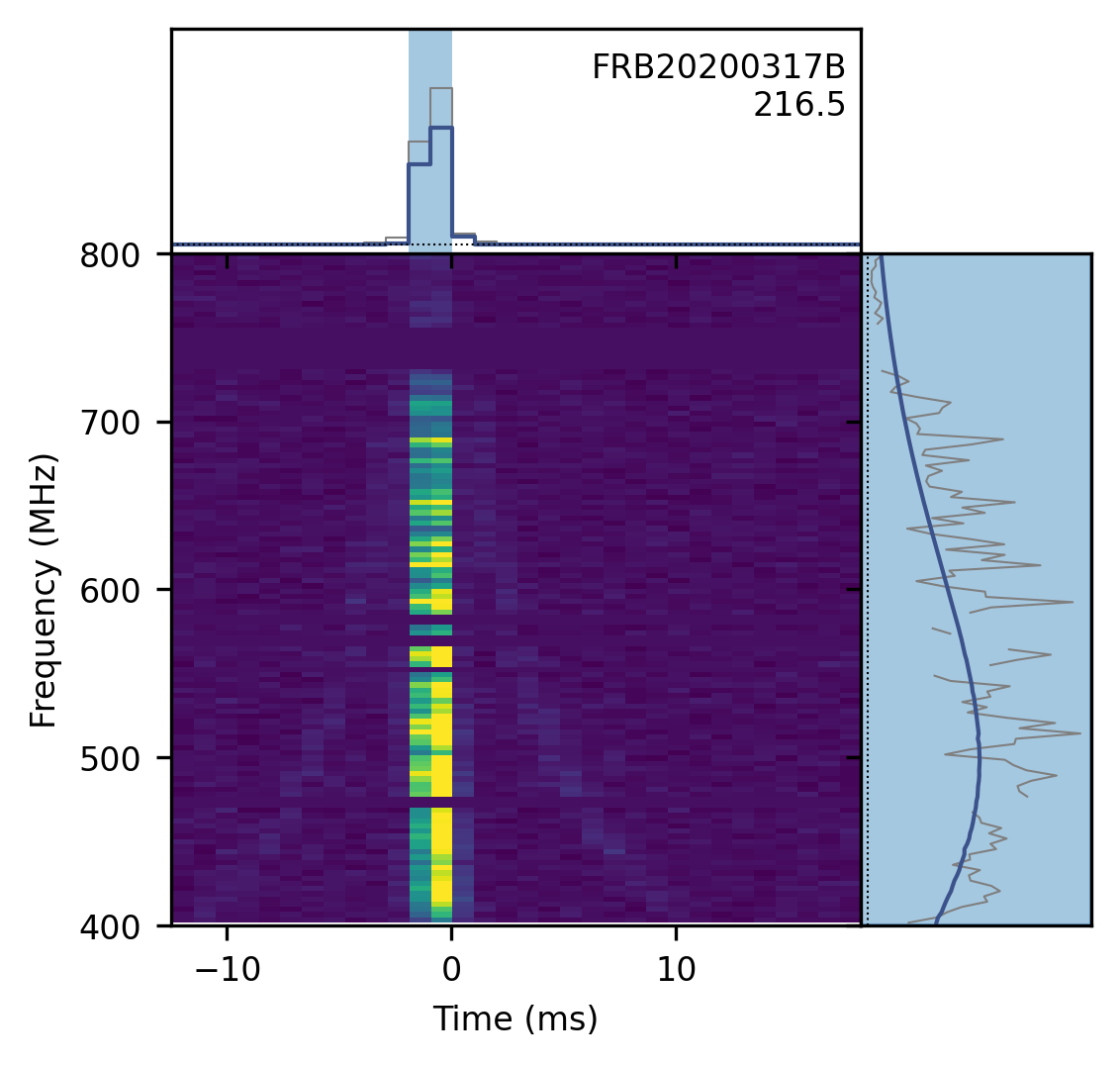

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
228.057± 0.080degrees
dec
30.983± 0.022degrees
gl
48.61degrees
gb
59.12degrees

Detection and dispersion

bonsai_snr
75.3
snr_fitb
367.0
bonsai_dm
215.1pc cm⁻³
dm_fitb
216.4914± 0.00022pc cm⁻³
dm_exc_ne2001
193.4pc cm⁻³
dm_exc_ymw16
193.2pc cm⁻³

Arrival time

mjd_400
58925.481436249174± 3.04 × 10⁻¹¹MJD
mjd_inf
58925.481371331065± 7.17 × 10⁻¹¹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000329± 0.0000006s
scat_time
0.000370± 0.0000006s

Flux and spectrum

flux
20.48± 5.04Jy
fluence
51.12± 12.57Jy ms
peak_freq
492.4MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
3.74± 0.06
sp_run
-9.03± 0.10

Exposure and fluence thresholds

exp_up
71.55± 43.57hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
5.7Jy ms
low_ft_95
—
up_ft_95
9.5Jy ms

Fit quality

chi_sq
389917.093
dof
524633
flag_frac
0.199
