CHIME/FRBPublic data

FRB 20200321D

One-off burst

Event ID
77806206
Arrival, 400 MHz
2020-03-21 06:17:14.531 UTC
Right ascension
153.685°
Declination
16.187°

Loading

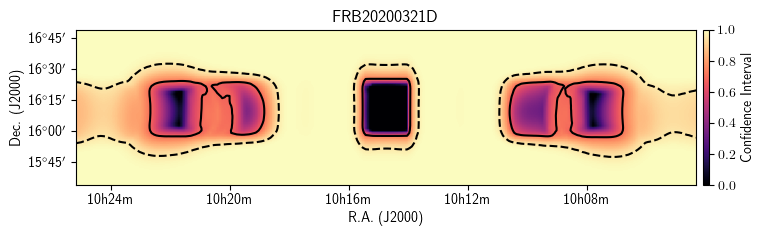

Localization

Loading

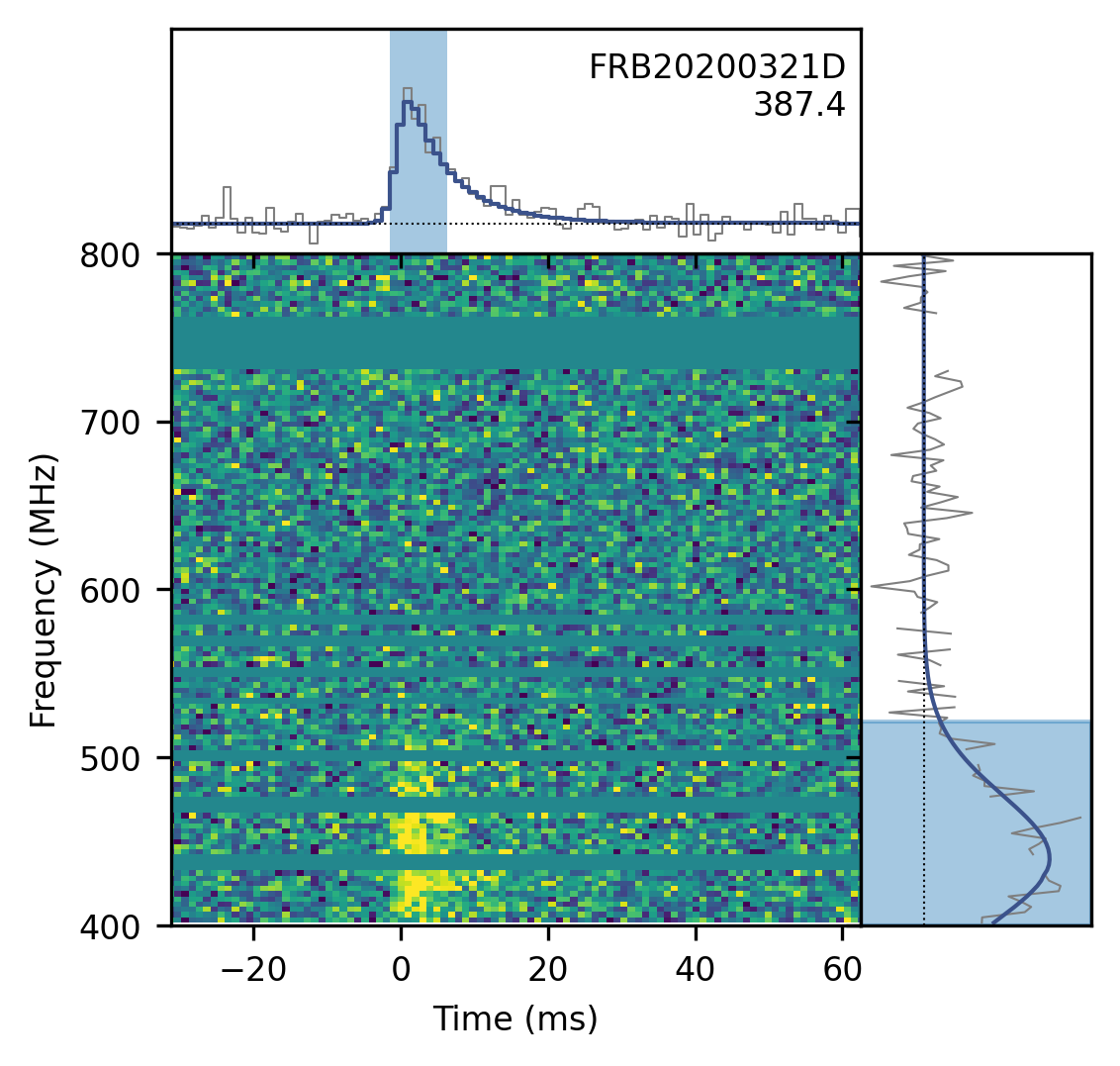

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
153.685± 0.193degrees
dec
16.187± 0.230degrees
gl
221.50degrees
gb
52.16degrees

Detection and dispersion

bonsai_snr
17.9
snr_fitb
30.5
bonsai_dm
385.0pc cm⁻³
dm_fitb
387.4438± 0.04795pc cm⁻³
dm_exc_ne2001
350.7pc cm⁻³
dm_exc_ymw16
361.1pc cm⁻³

Arrival time

mjd_400
58929.26197373991± 3.01 × 10⁻⁹MJD
mjd_inf
58929.26185755923± 1.47 × 10⁻⁸MJD

Burst shape

bc_width
0.00786s
width_fitb
0.001001± 0.0001595s
scat_time
0.009050± 0.0007546s

Flux and spectrum

flux
1.01± 0.53Jy
fluence
7.75± 3.10Jy ms
peak_freq
433.2MHz
low_freq
400.2MHz
high_freq
521.2MHz
sp_idx
10.71± 1.92
sp_run
-67.47± 8.37

Exposure and fluence thresholds

exp_up
78.77± 42.90hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
5.7Jy ms
low_ft_95
—
up_ft_95
10.4Jy ms

Fit quality

chi_sq
1970447.705
dof
1971371
flag_frac
0.257
