FRB 20200416B

One-off burst

Event ID
80986136
Arrival, 400 MHz
2020-04-16 18:07:55.638 UTC
Right ascension
358.821°
Declination
73.147°

Loading

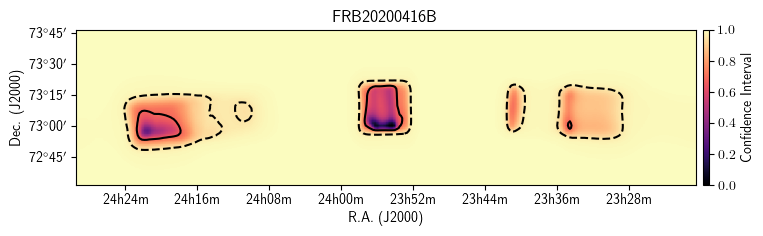

Localization

Loading

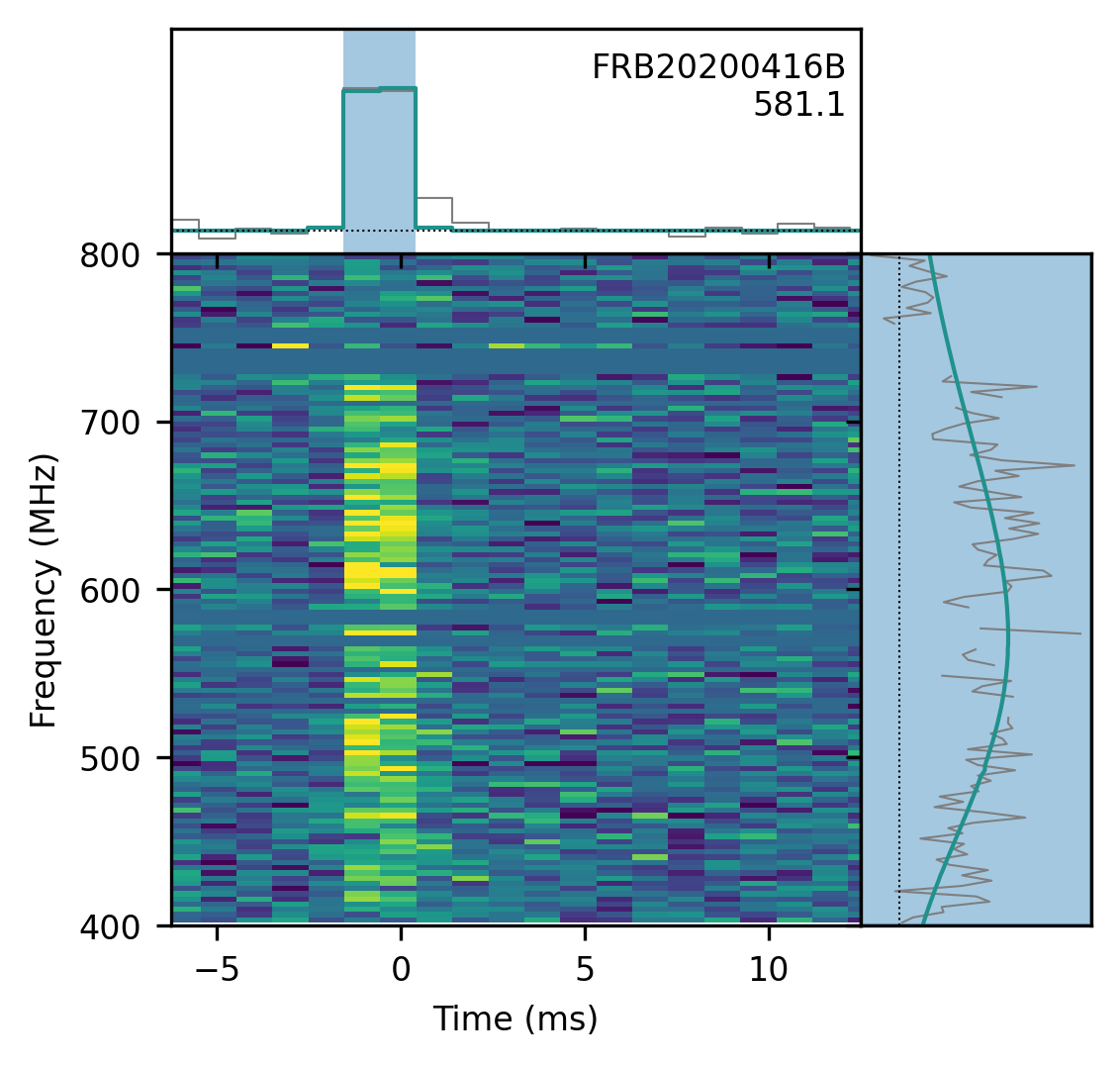

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
358.821± 0.152degrees
dec
73.147± 0.180degrees
gl
118.83degrees
gb
10.72degrees

Detection and dispersion

bonsai_snr
30.8
snr_fitb
44.2
bonsai_dm
580.7pc cm⁻³
dm_fitb
581.1205± 0.00136pc cm⁻³
dm_exc_ne2001
453.6pc cm⁻³
dm_exc_ymw16
394.3pc cm⁻³

Arrival time

mjd_400
58955.75550506749± 2.15 × 10⁻¹⁰MJD
mjd_inf
58955.75533081002± 4.61 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000255± 0.0000029s
scat_time
0.000000s

Flux and spectrum

flux
4.06± 2.13Jy
fluence
6.80± 3.48Jy ms
peak_freq
570.1MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
8.02± 0.76
sp_run
-11.33± 0.96

Exposure and fluence thresholds

exp_up
279.51± 138.10hour
exp_low
140.91± 101.08hour
low_ft_68
7.4Jy ms
up_ft_68
0.9Jy ms
low_ft_95
13.9Jy ms
up_ft_95
1.8Jy ms

Fit quality

chi_sq
2014949.927
dof
2016894
flag_frac
0.240
