FRB 20200416D

One-off burst

Event ID
80916558
Arrival, 400 MHz
2020-04-16 02:06:28.801 UTC
Right ascension
115.917°
Declination
31.634°

Loading

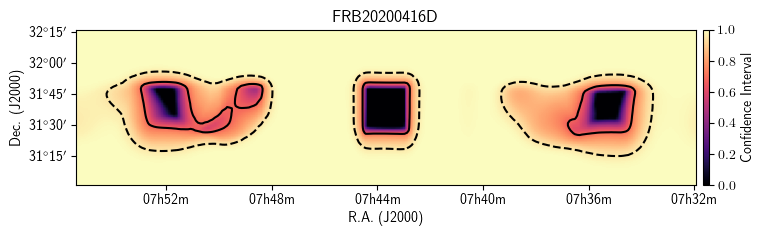

Localization

Loading

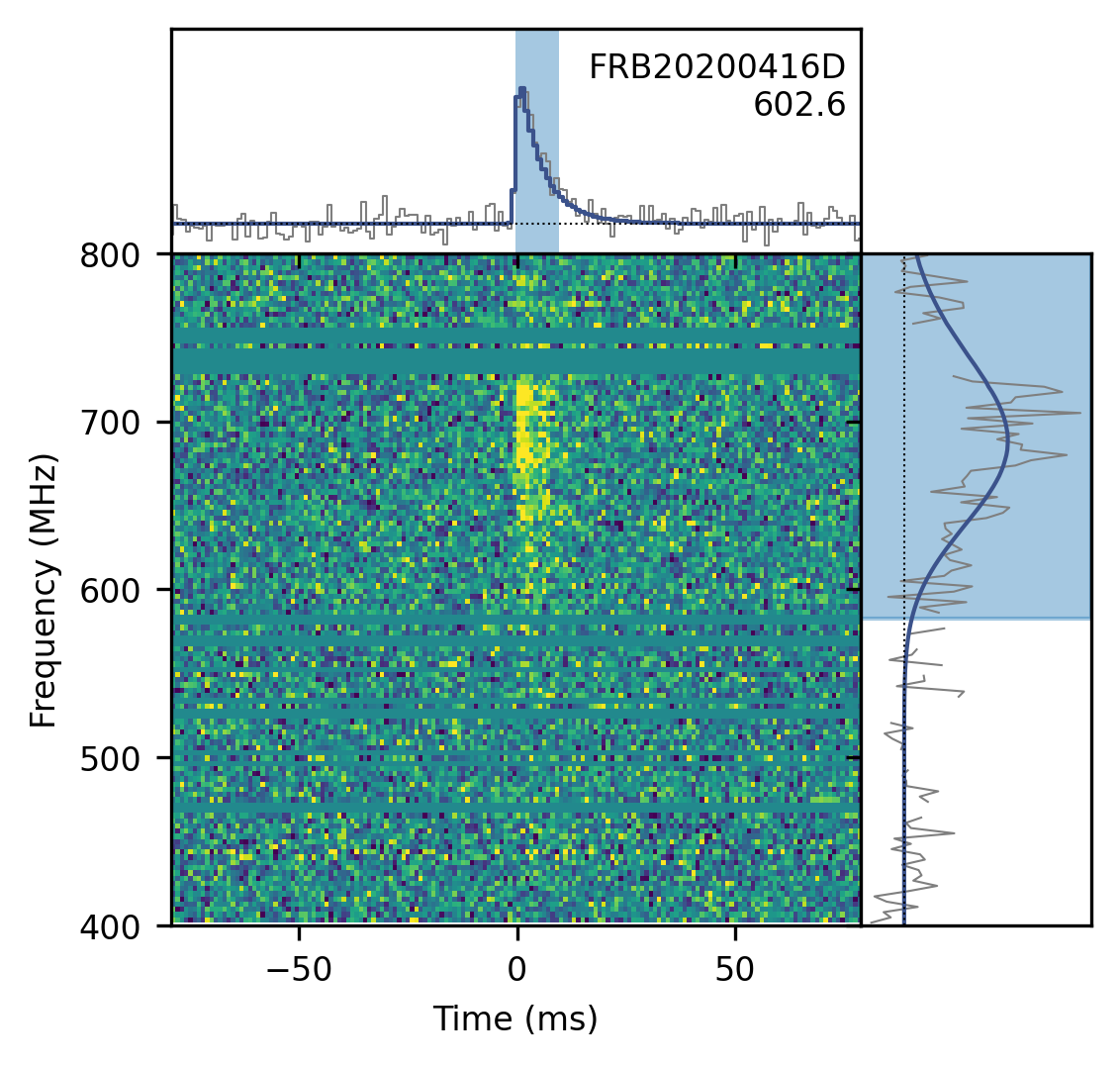

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
115.917± 0.191degrees
dec
31.634± 0.208degrees
gl
188.37degrees
gb
24.23degrees

Detection and dispersion

bonsai_snr
18.9
snr_fitb
32.2
bonsai_dm
604.9pc cm⁻³
dm_fitb
602.6256± 0.08178pc cm⁻³
dm_exc_ne2001
534.9pc cm⁻³
dm_exc_ymw16
521.1pc cm⁻³

Arrival time

mjd_400
58955.0878333414± 1.65 × 10⁻⁸MJD
mjd_inf
58955.08765263531± 2.95 × 10⁻⁸MJD

Burst shape

bc_width
0.00983s
width_fitb
0.000396± 0.0000997s
scat_time
0.046599± 0.0030980s

Flux and spectrum

flux
0.77± 0.29Jy
fluence
6.53± 1.84Jy ms
peak_freq
683.2MHz
low_freq
582.7MHz
high_freq
800.2MHz
sp_idx
97.19± 10.24
sp_run
-90.85± 9.33

Exposure and fluence thresholds

exp_up
87.15± 46.17hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.9Jy ms
low_ft_95
—
up_ft_95
6.9Jy ms

Fit quality

chi_sq
1948473.523
dof
1949501
flag_frac
0.266
