FRB 20200422D

One-off burst

Event ID
81595635
Arrival, 400 MHz
2020-04-22 04:38:39.534 UTC
Right ascension
161.011°
Declination
41.651°

Loading

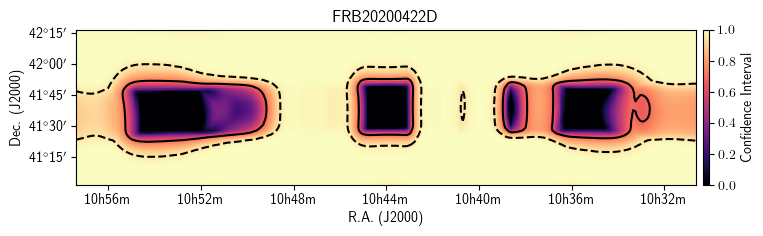

Localization

Loading

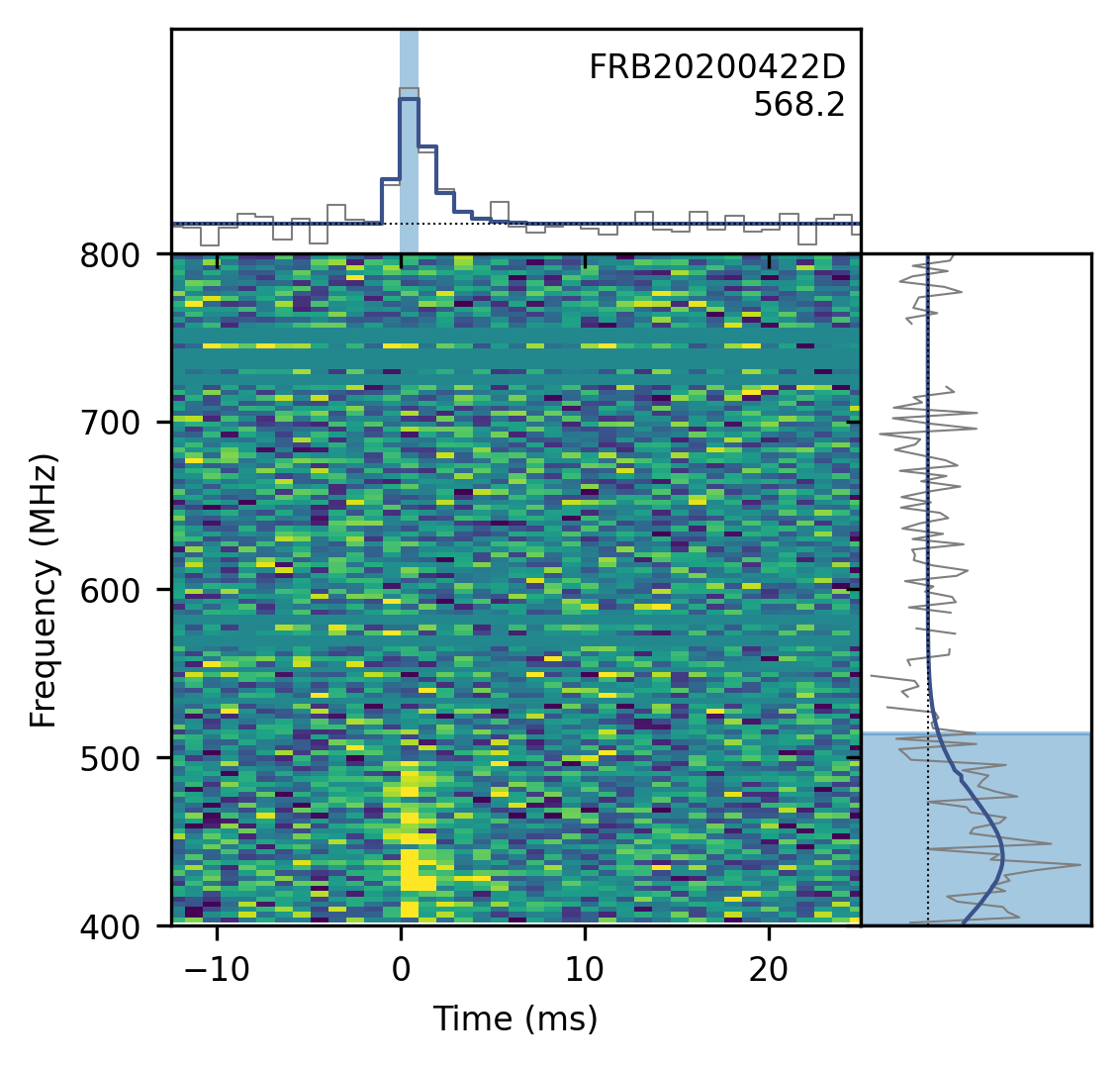

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
161.011± 0.224degrees
dec
41.651± 0.228degrees
gl
175.48degrees
gb
60.22degrees

Detection and dispersion

bonsai_snr
11.6
snr_fitb
18.6
bonsai_dm
566.1pc cm⁻³
dm_fitb
568.1656± 0.00821pc cm⁻³
dm_exc_ne2001
536.3pc cm⁻³
dm_exc_ymw16
551.0pc cm⁻³

Arrival time

mjd_400
58961.19351311972± 5.41 × 10⁻¹⁰MJD
mjd_inf
58961.19334274696± 2.52 × 10⁻⁹MJD

Burst shape

bc_width
0.00098s
width_fitb
0.000182± 0.0000458s
scat_time
0.001537± 0.0001857s

Flux and spectrum

flux
0.35± 0.18Jy
fluence
1.00± 0.31Jy ms
peak_freq
433.6MHz
low_freq
400.2MHz
high_freq
514.1MHz
sp_idx
12.68± 3.56
sp_run
-79.20± 15.98

Exposure and fluence thresholds

exp_up
95.67± 56.22hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.1Jy ms
low_ft_95
—
up_ft_95
1.9Jy ms

Fit quality

chi_sq
1960662.641
dof
1961003
flag_frac
0.261
