FRB 20200506D

One-off burst

Event ID
83163786
Arrival, 400 MHz
2020-05-06 02:58:53.060 UTC
Right ascension
148.093°
Declination
43.188°

Loading

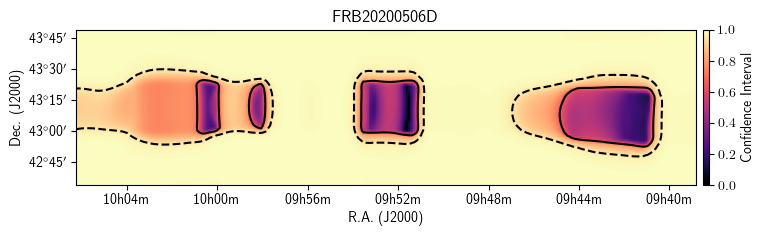

Localization

Loading

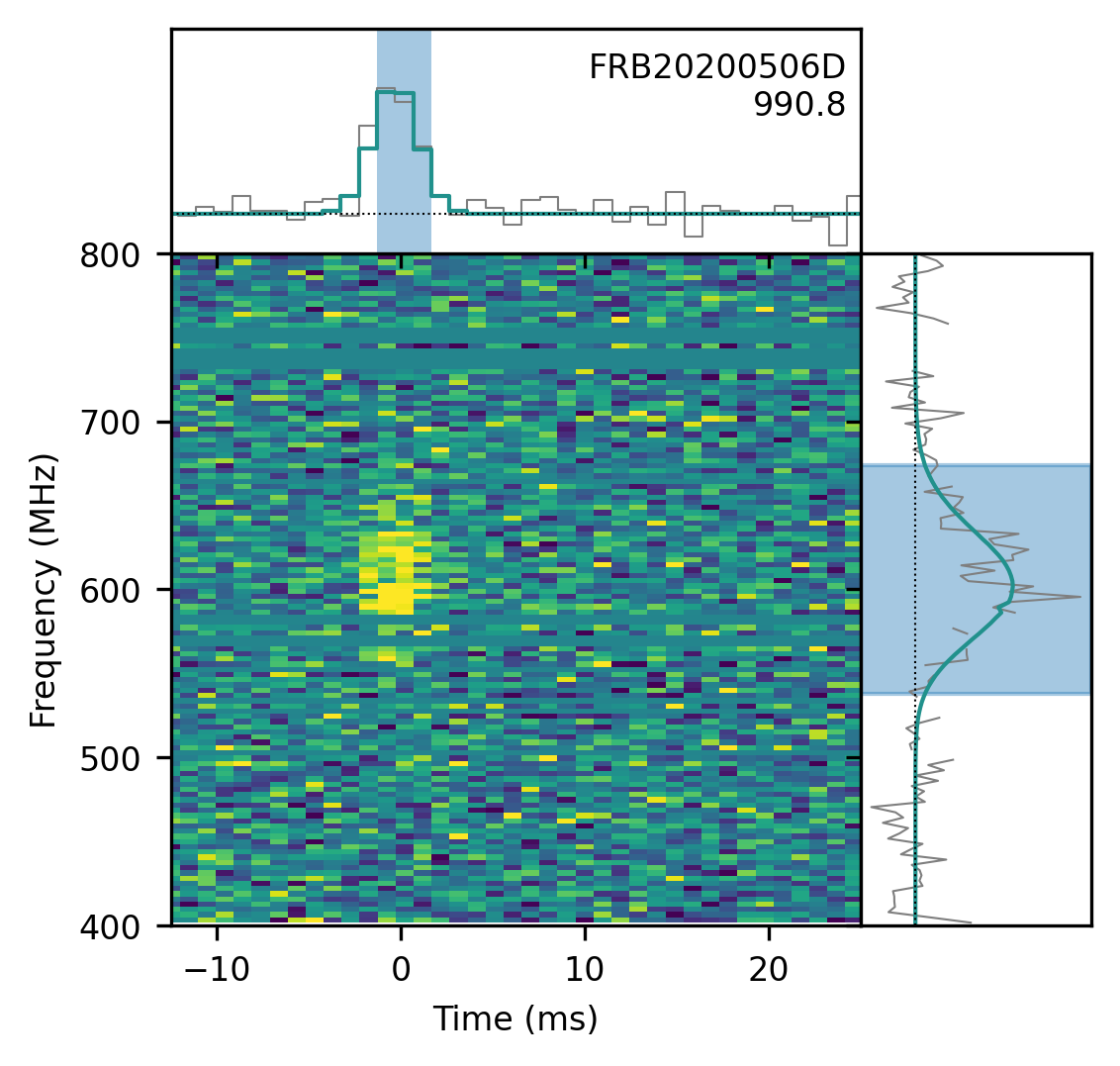

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
148.093± 0.231degrees
dec
43.188± 0.221degrees
gl
176.93degrees
gb
50.60degrees

Detection and dispersion

bonsai_snr
9.1
snr_fitb
20.4
bonsai_dm
991.5pc cm⁻³
dm_fitb
990.7901± 0.08800pc cm⁻³
dm_exc_ne2001
953.1pc cm⁻³
dm_exc_ymw16
965.9pc cm⁻³

Arrival time

mjd_400
58975.12422522678± 1.48 × 10⁻⁸MJD
mjd_inf
58975.1239281239± 3.03 × 10⁻⁸MJD

Burst shape

bc_width
0.00295s
width_fitb
0.001137± 0.0000691s
scat_time
0.000000s

Flux and spectrum

flux
0.17± 0.05Jy
fluence
0.64± 0.11Jy ms
peak_freq
602.0MHz
low_freq
538.0MHz
high_freq
673.6MHz
sp_idx
148.96± 22.15
sp_run
-182.41± 26.68

Exposure and fluence thresholds

exp_up
99.70± 57.75hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.6Jy ms
low_ft_95
—
up_ft_95
1.0Jy ms

Fit quality

chi_sq
1987810.377
dof
1988220
flag_frac
0.251
