CHIME/FRBPublic data

FRB 20200511B

One-off burst

Event ID
83893533
Arrival, 400 MHz
2020-05-11 18:09:40.670 UTC
Right ascension
22.239°
Declination
74.877°

Loading

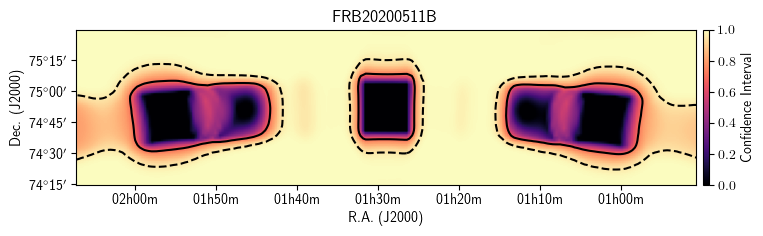

Localization

Loading

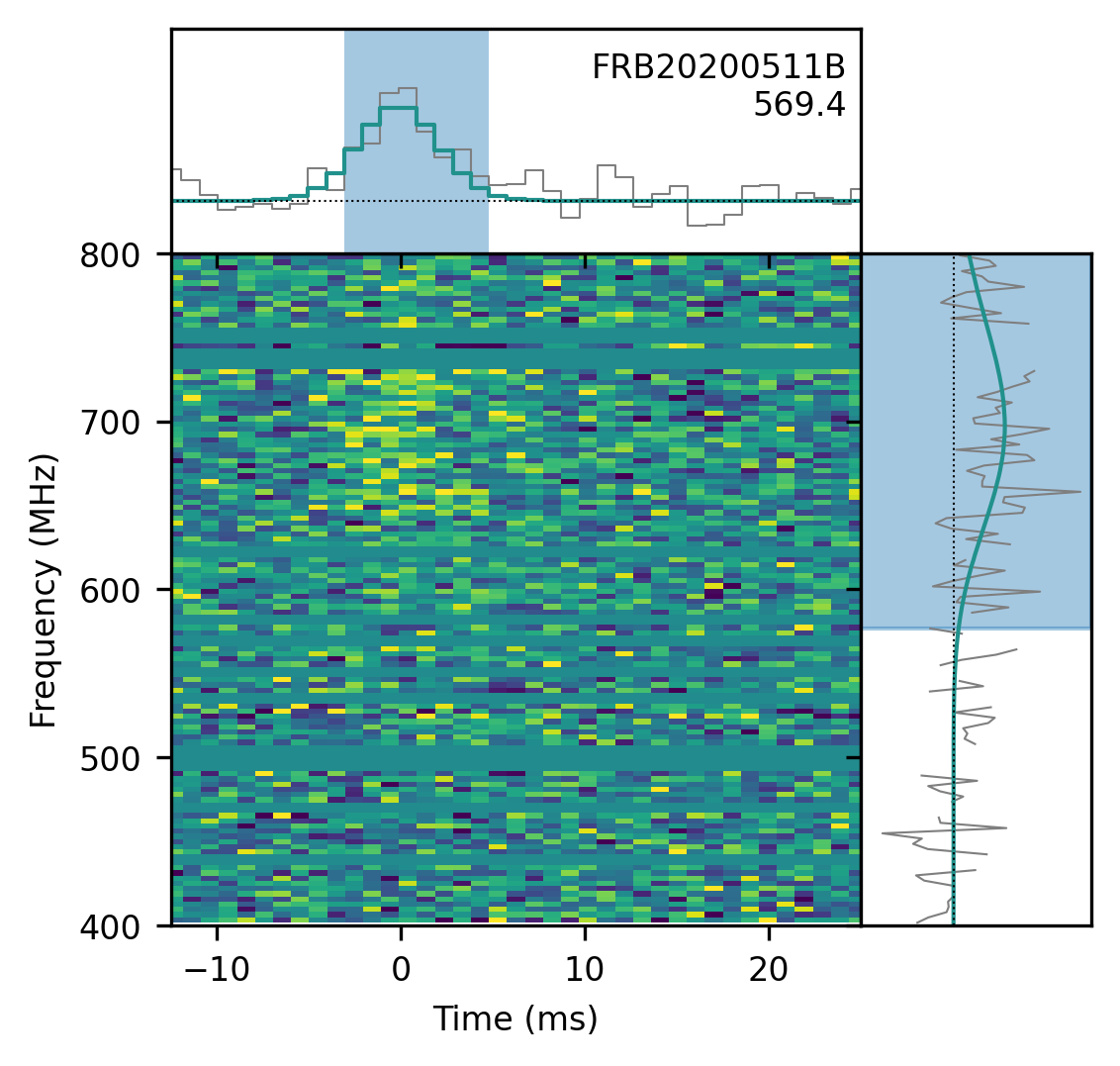

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
22.239± 0.228degrees
dec
74.877± 0.267degrees
gl
125.43degrees
gb
12.19degrees

Detection and dispersion

bonsai_snr
9.9
snr_fitb
13.0
bonsai_dm
572.6pc cm⁻³
dm_fitb
569.4491± 0.33495pc cm⁻³
dm_exc_ne2001
456.0pc cm⁻³
dm_exc_ymw16
412.0pc cm⁻³

Arrival time

mjd_400
58980.75672071546± 6.79 × 10⁻⁸MJD
mjd_inf
58980.756549957834± 1.21 × 10⁻⁷MJD

Burst shape

bc_width
0.00786s
width_fitb
0.002143± 0.0003247s
scat_time
0.000000s

Flux and spectrum

flux
0.33± 0.15Jy
fluence
2.52± 0.73Jy ms
peak_freq
697.3MHz
low_freq
577.0MHz
high_freq
800.2MHz
sp_idx
71.23± 22.59
sp_run
-64.14± 20.05

Exposure and fluence thresholds

exp_up
288.99± 164.05hour
exp_low
233.34± 114.52hour
low_ft_68
12.0Jy ms
up_ft_68
2.0Jy ms
low_ft_95
21.1Jy ms
up_ft_95
3.6Jy ms

Fit quality

chi_sq
1868825.624
dof
1868988
flag_frac
0.296
