FRB 20200516E

One-off burst

Event ID
84312447
Arrival, 400 MHz
2020-05-16 09:45:49.530 UTC
Right ascension
261.232°
Declination
38.022°

Loading

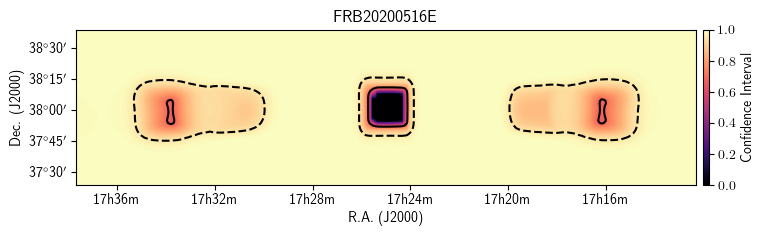

Localization

Loading

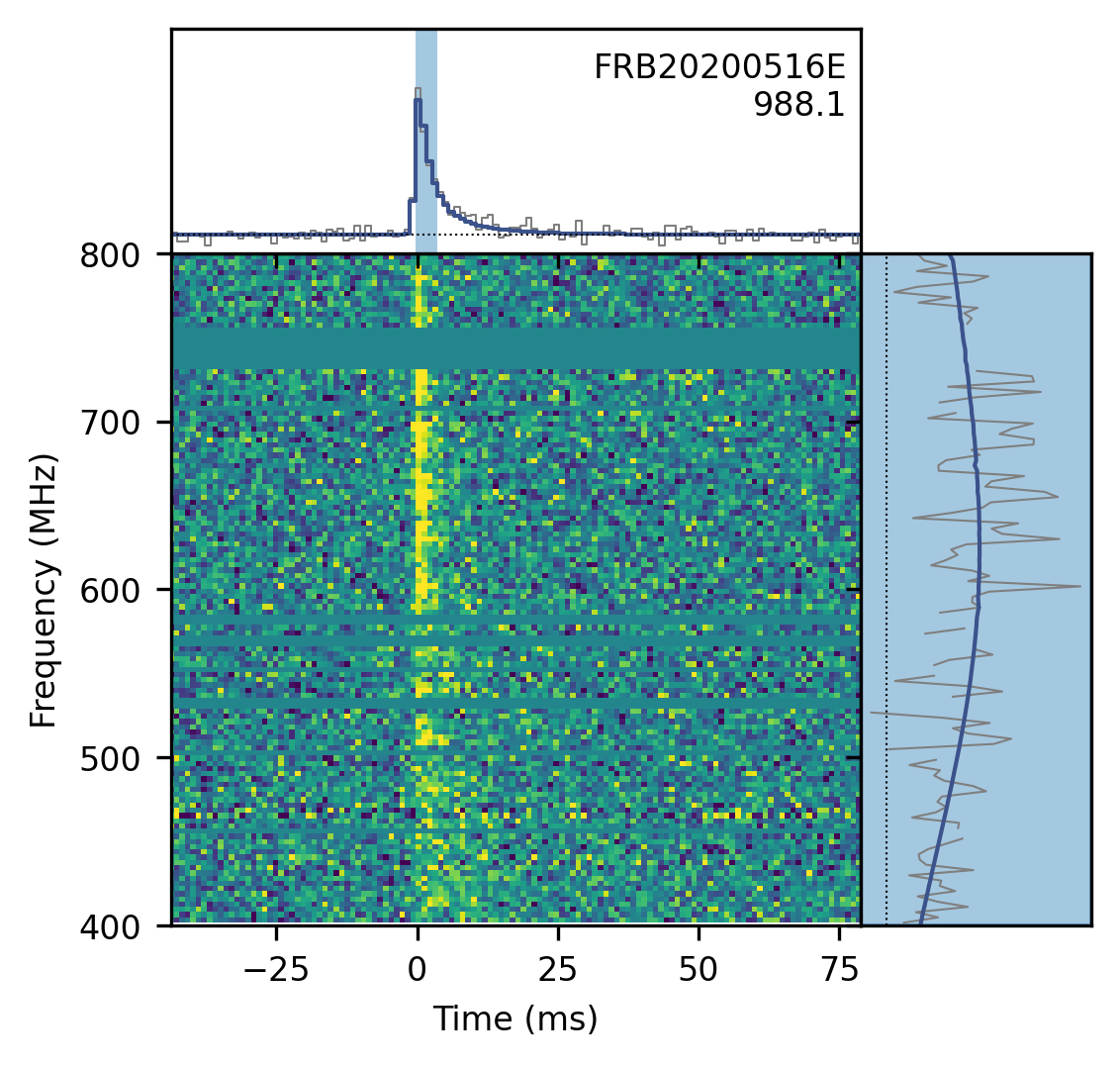

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
261.232± 0.159degrees
dec
38.022± 0.159degrees
gl
62.52degrees
gb
32.63degrees

Detection and dispersion

bonsai_snr
35.1
snr_fitb
45.0
bonsai_dm
988.3pc cm⁻³
dm_fitb
988.0720± 0.00413pc cm⁻³
dm_exc_ne2001
941.5pc cm⁻³
dm_exc_ymw16
950.7pc cm⁻³

Arrival time

mjd_400
58985.406823264806± 8.11 × 10⁻¹⁰MJD
mjd_inf
58985.40652697696± 1.48 × 10⁻⁹MJD

Burst shape

bc_width
0.00393s
width_fitb
0.000131± 0.0000233s
scat_time
0.014223± 0.0007160s

Flux and spectrum

flux
1.39± 0.31Jy
fluence
8.71± 1.57Jy ms
peak_freq
439.1MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
0.39± 0.55
sp_run
-2.12± 0.68

Exposure and fluence thresholds

exp_up
117.53± 40.72hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.3Jy ms
low_ft_95
—
up_ft_95
3.7Jy ms

Fit quality

chi_sq
1950719.337
dof
1952741
flag_frac
0.264
