FRB 20200525A

One-off burst

Event ID
86099817
Arrival, 400 MHz
2020-05-25 08:12:04.766 UTC
Right ascension
246.394°
Declination
61.183°

Loading

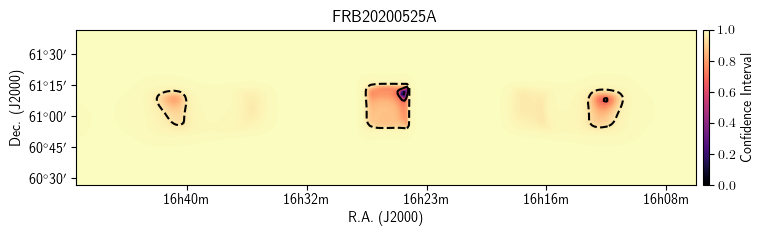

Localization

Loading

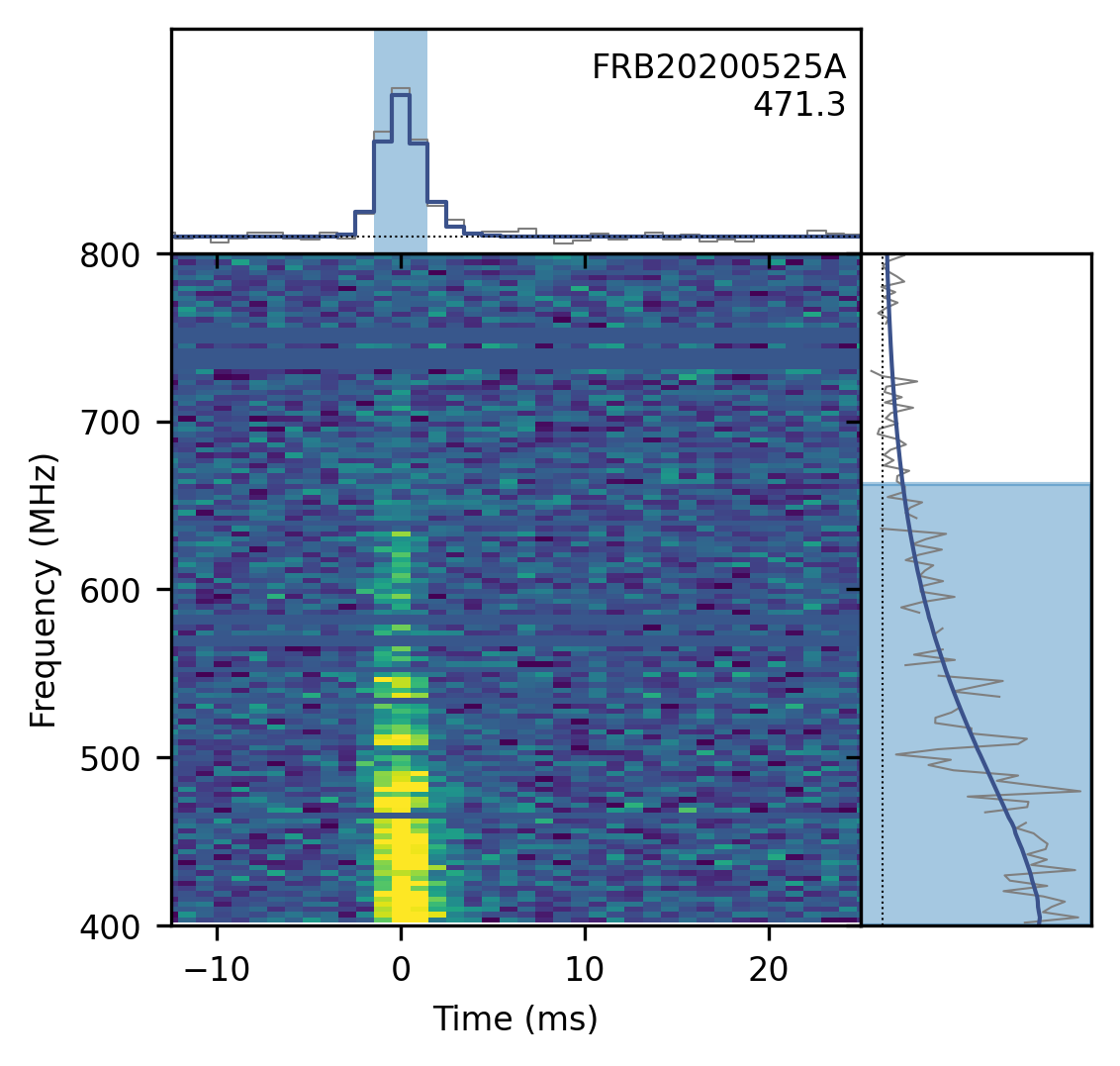

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
246.394± 0.043degrees
dec
61.183± 0.056degrees
gl
92.09degrees
gb
40.88degrees

Detection and dispersion

bonsai_snr
59.6
snr_fitb
70.7
bonsai_dm
470.7pc cm⁻³
dm_fitb
471.3216± 0.00497pc cm⁻³
dm_exc_ne2001
432.9pc cm⁻³
dm_exc_ymw16
439.8pc cm⁻³

Arrival time

mjd_400
58994.34172182988± 7.64 × 10⁻¹⁰MJD
mjd_inf
58994.341580497196± 1.67 × 10⁻⁹MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000837± 0.0000169s
scat_time
0.001184± 0.0001065s

Flux and spectrum

flux
2.19± 0.59Jy
fluence
6.89± 1.71Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
662.4MHz
sp_idx
-1.83± 0.35
sp_run
-5.43± 0.88

Exposure and fluence thresholds

exp_up
194.28± 53.56hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
1.7Jy ms

Fit quality

chi_sq
950706.447
dof
955703
flag_frac
0.289
