CHIME/FRBPublic data

FRB 20200525C

One-off burst

Event ID
86092282
Arrival, 400 MHz
2020-05-25 03:41:19.199 UTC
Right ascension
176.935°
Declination
61.762°

Loading

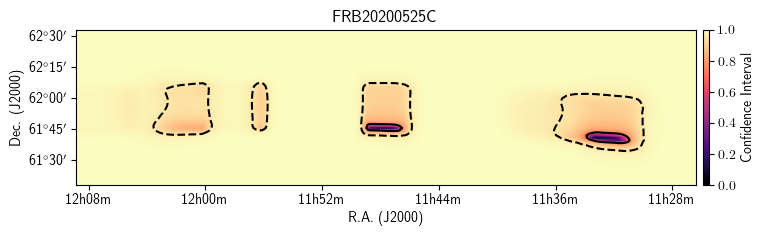

Localization

Loading

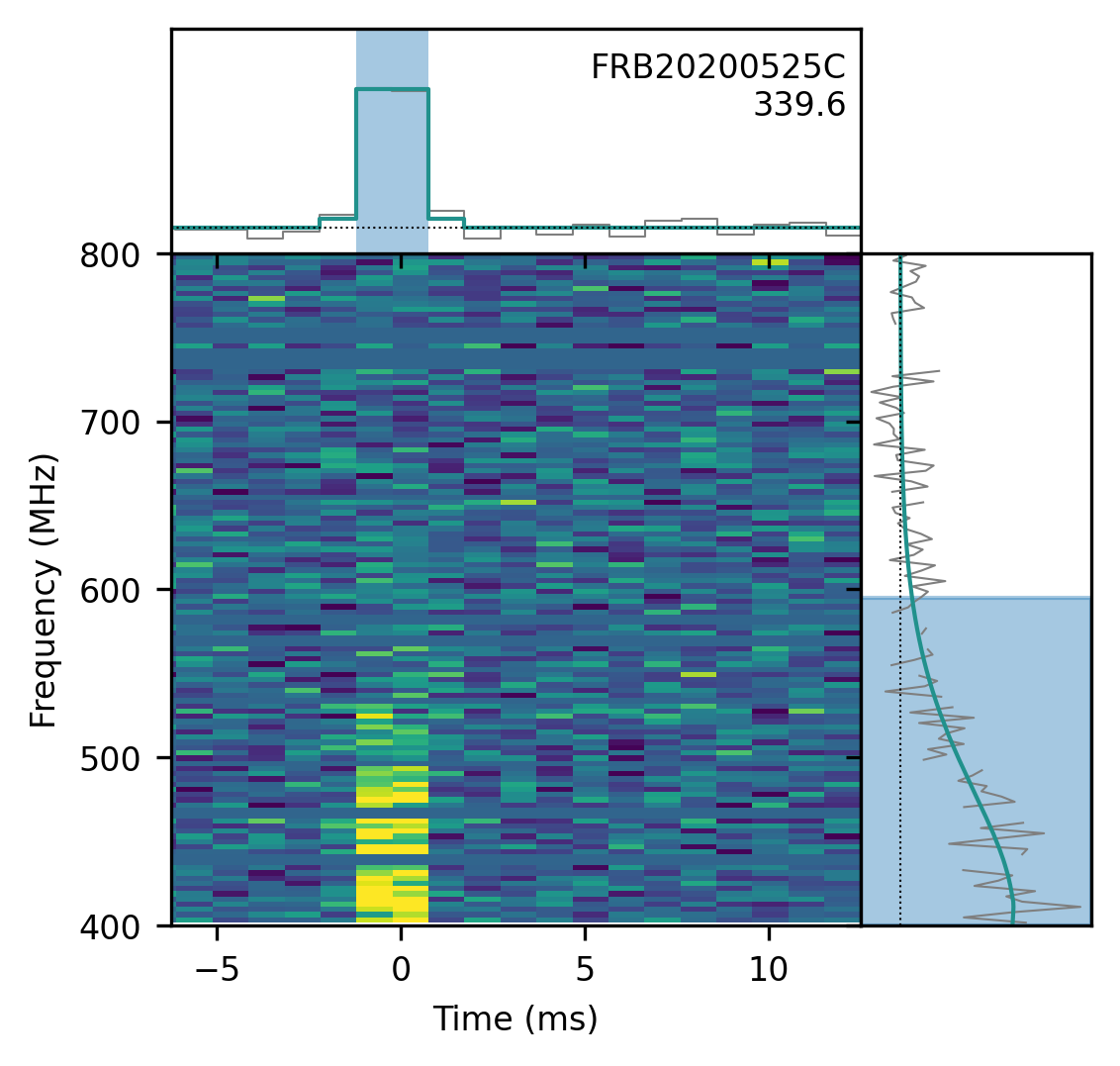

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
176.935± 0.145degrees
dec
61.762± 0.029degrees
gl
135.62degrees
gb
53.77degrees

Detection and dispersion

bonsai_snr
26.4
snr_fitb
35.0
bonsai_dm
338.1pc cm⁻³
dm_fitb
339.6232± 0.00363pc cm⁻³
dm_exc_ne2001
305.8pc cm⁻³
dm_exc_ymw16
314.8pc cm⁻³

Arrival time

mjd_400
58994.15369443497± 2.32 × 10⁻¹⁰MJD
mjd_inf
58994.15359259398± 1.11 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000401± 0.0000091s
scat_time
0.000000s

Flux and spectrum

flux
0.87± 0.43Jy
fluence
1.60± 0.63Jy ms
peak_freq
403.8MHz
low_freq
400.2MHz
high_freq
594.7MHz
sp_idx
0.28± 1.06
sp_run
-15.36± 3.40

Exposure and fluence thresholds

exp_up
97.24± 81.41hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.4Jy ms
low_ft_95
—
up_ft_95
0.7Jy ms

Fit quality

chi_sq
1855453.703
dof
1856676
flag_frac
0.300
