CHIME/FRBPublic data

FRB 20200530B

One-off burst

Event ID
86114631
Arrival, 400 MHz
2020-05-30 09:47:27.983 UTC
Right ascension
275.477°
Declination
46.979°

Loading

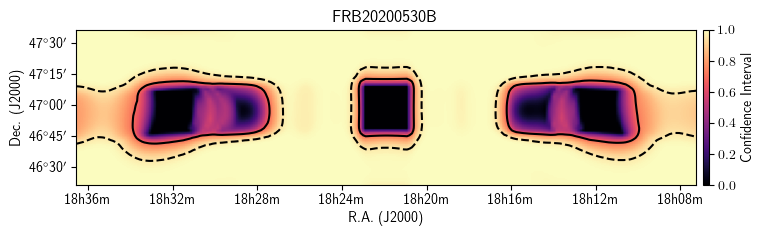

Localization

Loading

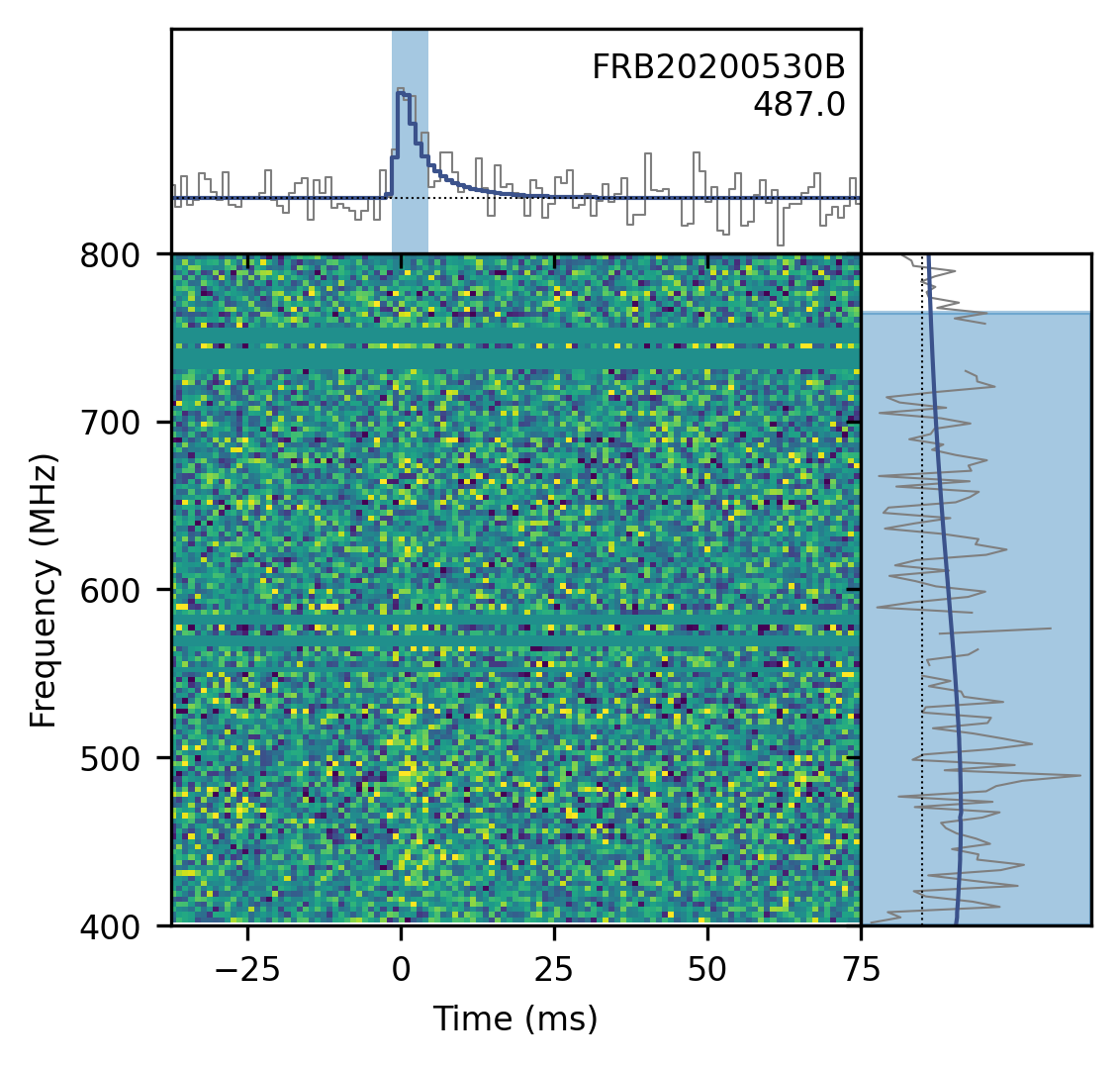

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
275.477± 0.222degrees
dec
46.979± 0.232degrees
gl
75.00degrees
gb
24.29degrees

Detection and dispersion

bonsai_snr
9.8
snr_fitb
11.3
bonsai_dm
488.5pc cm⁻³
dm_fitb
486.9733± 0.03098pc cm⁻³
dm_exc_ne2001
429.5pc cm⁻³
dm_exc_ymw16
437.0pc cm⁻³

Arrival time

mjd_400
58999.40796276062± 5.40 × 10⁻⁹MJD
mjd_inf
58999.40781673456± 1.07 × 10⁻⁸MJD

Burst shape

bc_width
0.00590s
width_fitb
0.000577± 0.0002002s
scat_time
0.010111± 0.0022273s

Flux and spectrum

flux
0.36± 0.17Jy
fluence
2.29± 0.58Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
764.5MHz
sp_idx
-1.46± 1.94
sp_run
-3.24± 3.55

Exposure and fluence thresholds

exp_up
107.65± 63.50hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.8Jy ms
low_ft_95
—
up_ft_95
3.1Jy ms

Fit quality

chi_sq
1958776.453
dof
1958897
flag_frac
0.262
