CHIME/FRBPublic data

FRB 20200613D

One-off burst

Event ID
92475127
Arrival, 400 MHz
2020-06-13 02:09:28.817 UTC
Right ascension
173.579°
Declination
56.814°

Loading

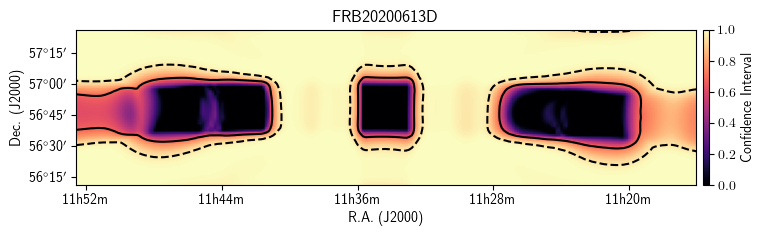

Localization

Loading

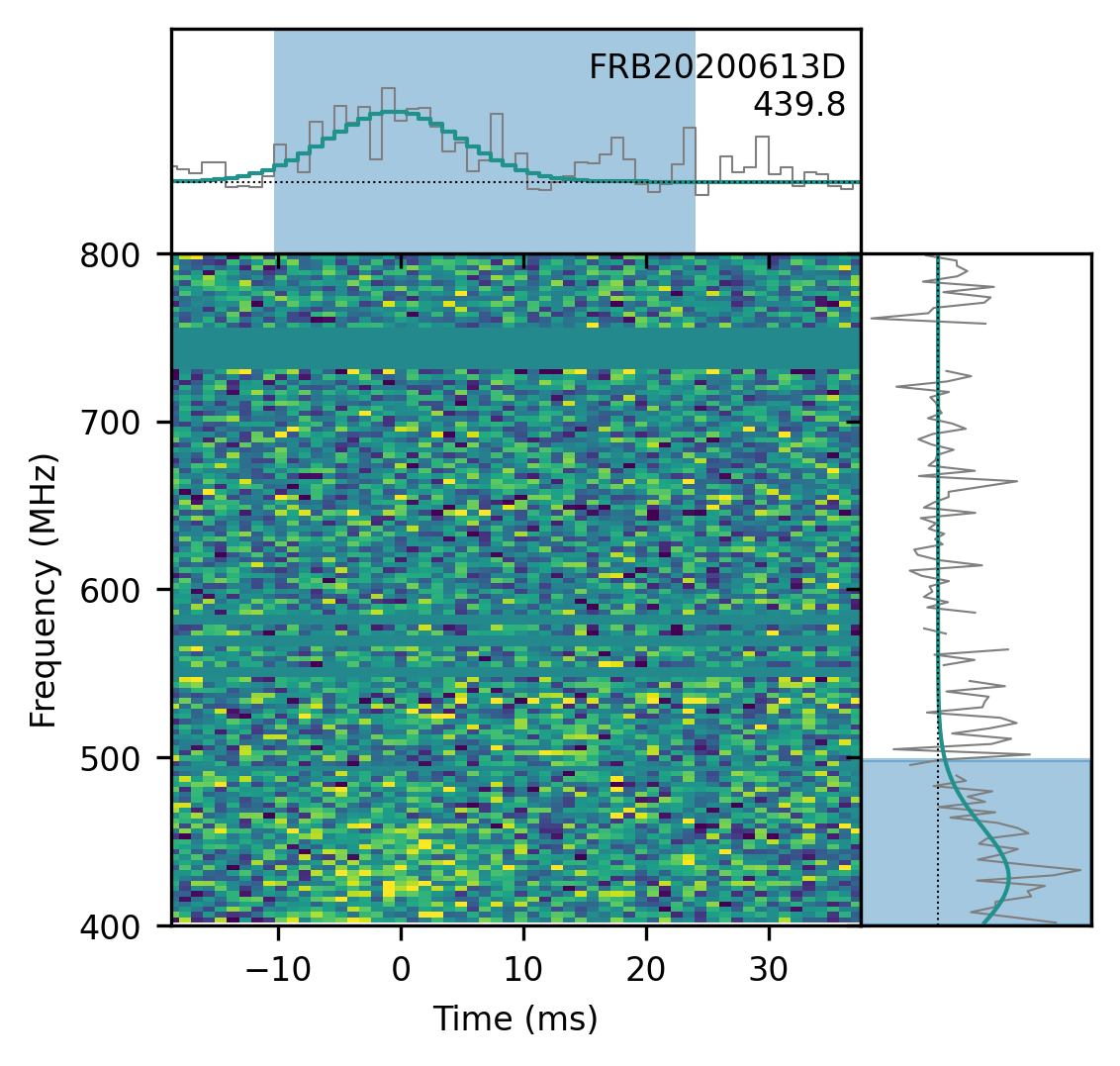

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.
  • Flux and fluence. Flux/fluence could not be determined due to an incorrect peak flux measurement.

Position

ra
173.579± 0.229degrees
dec
56.814± 0.244degrees
gl
142.47degrees
gb
57.29degrees

Detection and dispersion

bonsai_snr
9.2
snr_fitb
14.1
bonsai_dm
427.0pc cm⁻³
dm_fitb
439.7885± 0.36298pc cm⁻³
dm_exc_ne2001
406.8pc cm⁻³
dm_exc_ymw16
416.5pc cm⁻³

Arrival time

mjd_400
59013.089916865145± 1.69 × 10⁻⁸MJD
mjd_inf
59013.08978498813± 1.10 × 10⁻⁷MJD

Burst shape

bc_width
0.03441s
width_fitb
0.005428± 0.0006227s
scat_time
0.000000s

Flux and spectrum

flux
—
fluence
—
peak_freq
428.6MHz
low_freq
400.2MHz
high_freq
498.2MHz
sp_idx
13.90± 6.99
sp_run
-101.47± 40.56

Exposure and fluence thresholds

exp_up
128.63± 76.37hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
—
low_ft_95
—
up_ft_95
—

Fit quality

chi_sq
2167684.432
dof
2167878
flag_frac
0.183
