FRB 20200616B

One-off burst

Event ID
93196664
Arrival, 400 MHz
2020-06-16 08:45:45.441 UTC
Right ascension
273.519°
Declination
44.602°

Loading

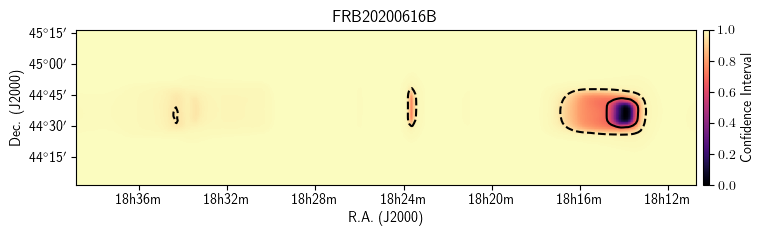

Localization

Loading

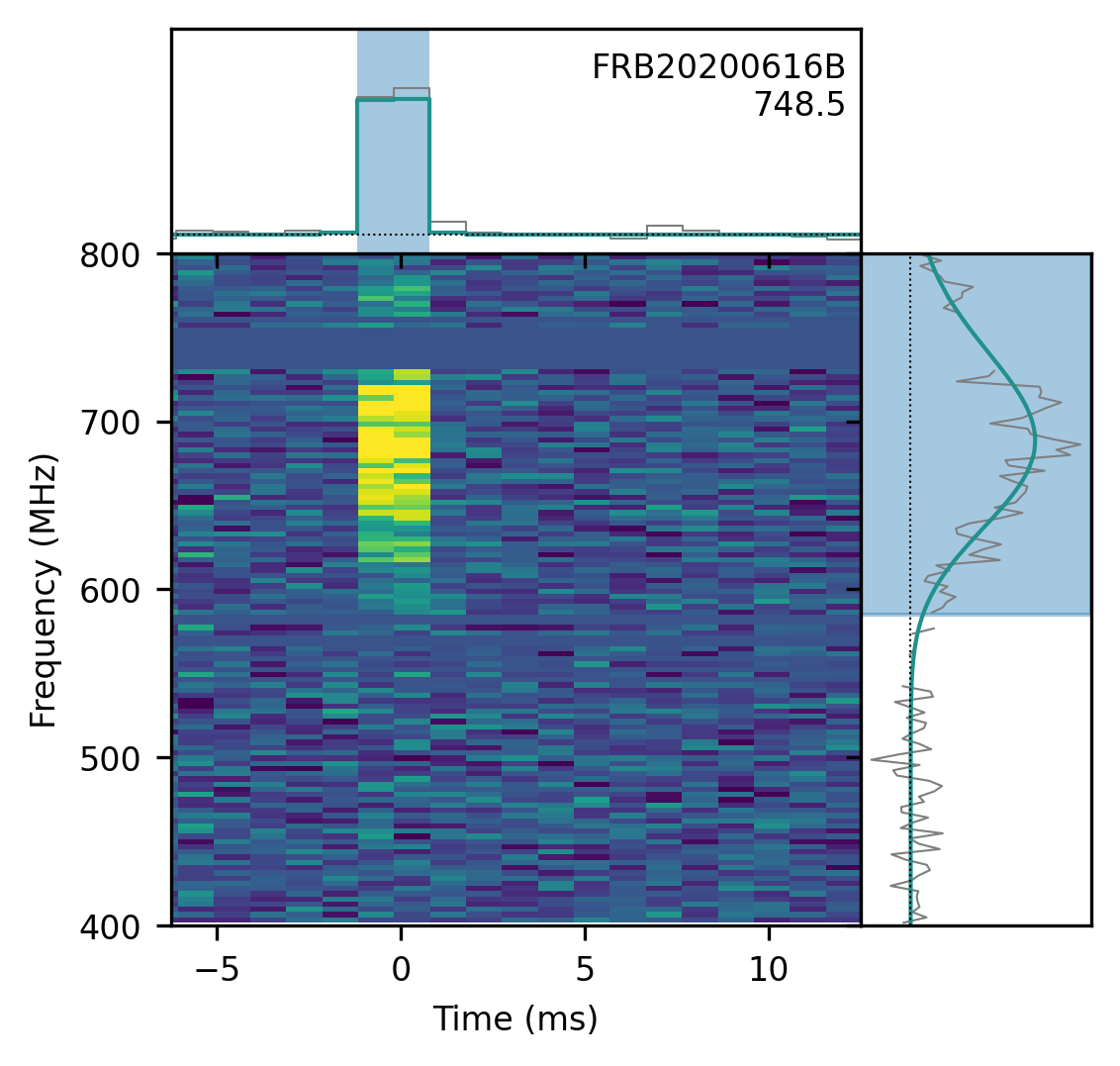

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
273.519± 0.127degrees
dec
44.602± 0.118degrees
gl
72.09degrees
gb
25.03degrees

Detection and dispersion

bonsai_snr
34.4
snr_fitb
57.7
bonsai_dm
748.9pc cm⁻³
dm_fitb
748.5199± 0.00564pc cm⁻³
dm_exc_ne2001
692.1pc cm⁻³
dm_exc_ymw16
700.4pc cm⁻³

Arrival time

mjd_400
59016.365109272476± 1.12 × 10⁻⁹MJD
mjd_inf
59016.36488481786± 2.03 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000295± 0.0000034s
scat_time
0.000000s

Flux and spectrum

flux
1.84± 0.75Jy
fluence
3.84± 1.50Jy ms
peak_freq
688.2MHz
low_freq
585.1MHz
high_freq
800.2MHz
sp_idx
94.69± 5.16
sp_run
-87.32± 4.75

Exposure and fluence thresholds

exp_up
135.28± 45.85hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
1.8Jy ms

Fit quality

chi_sq
2146892.098
dof
2150220
flag_frac
0.190
