CHIME/FRBPublic data

FRB 20200627D

One-off burst

Event ID
95149236
Arrival, 400 MHz
2020-06-27 08:37:08.177 UTC
Right ascension
286.817°
Declination
71.134°

Loading

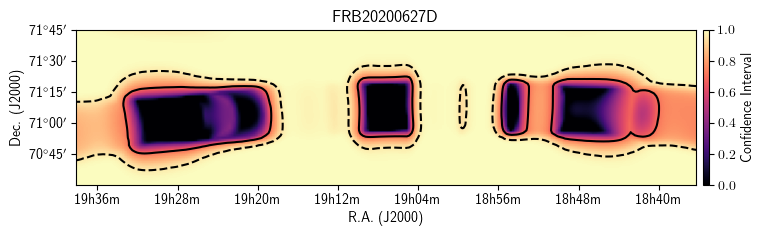

Localization

Loading

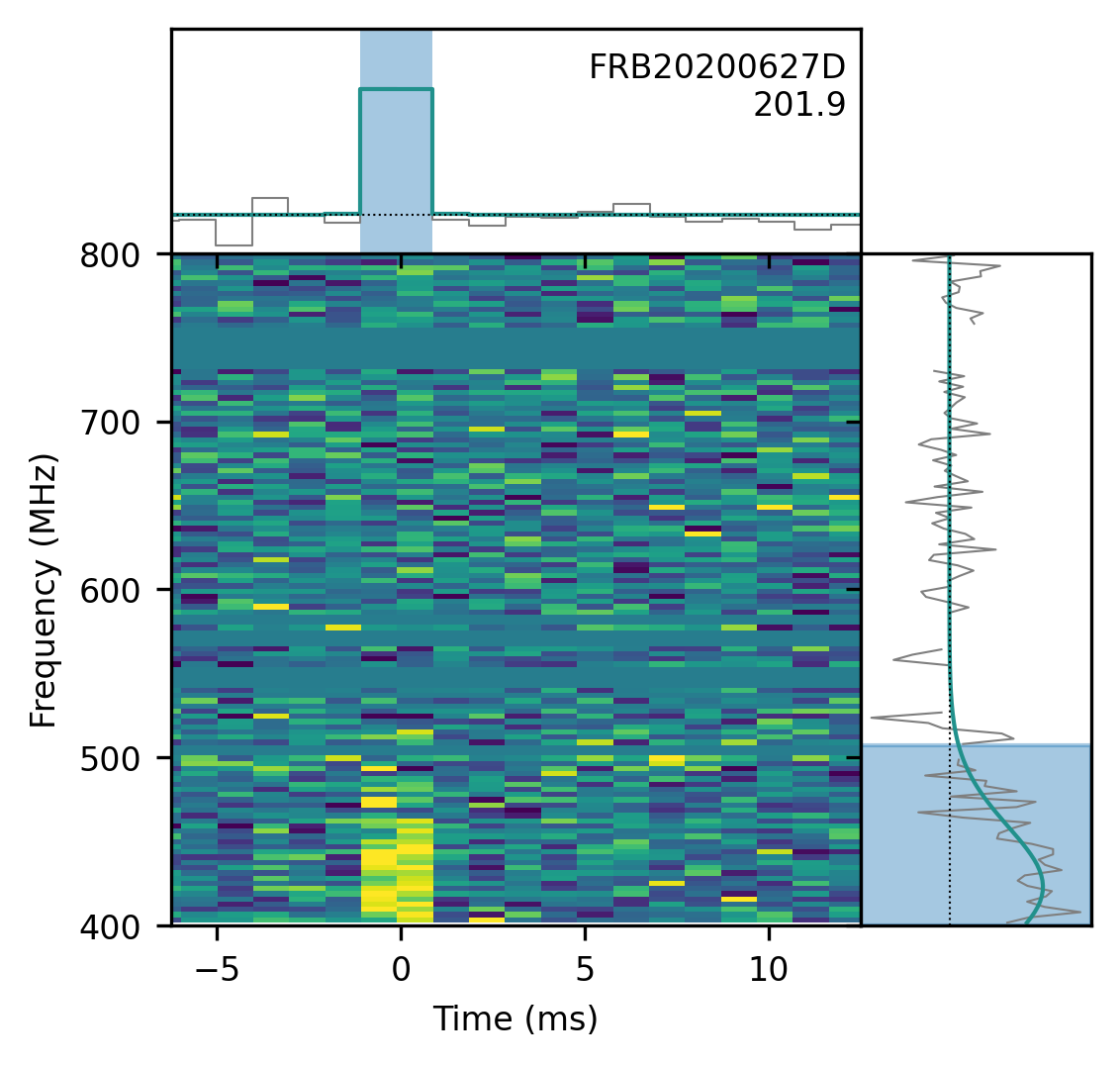

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
286.817± 0.224degrees
dec
71.134± 0.244degrees
gl
102.20degrees
gb
24.31degrees

Detection and dispersion

bonsai_snr
11.3
snr_fitb
20.2
bonsai_dm
202.2pc cm⁻³
dm_fitb
201.8895± 0.00334pc cm⁻³
dm_exc_ne2001
143.7pc cm⁻³
dm_exc_ymw16
146.3pc cm⁻³

Arrival time

mjd_400
59027.359122414804± 1.60 × 10⁻¹⁰MJD
mjd_inf
59027.35906187527± 1.02 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000206± 0.0000042s
scat_time
0.000000s

Flux and spectrum

flux
0.48± 0.28Jy
fluence
0.81± 0.41Jy ms
peak_freq
423.0MHz
low_freq
400.2MHz
high_freq
507.0MHz
sp_idx
7.78± 3.07
sp_run
-70.21± 15.88

Exposure and fluence thresholds

exp_up
235.88± 134.03hour
exp_low
131.90± 100.55hour
low_ft_68
5.5Jy ms
up_ft_68
0.5Jy ms
low_ft_95
11.3Jy ms
up_ft_95
1.1Jy ms

Fit quality

chi_sq
2124544.824
dof
2124948
flag_frac
0.199
