FRB 20200628B

One-off burst

Event ID
95327123
Arrival, 400 MHz
2020-06-28 17:40:39.642 UTC
Right ascension
60.495°
Declination
75.086°

Loading

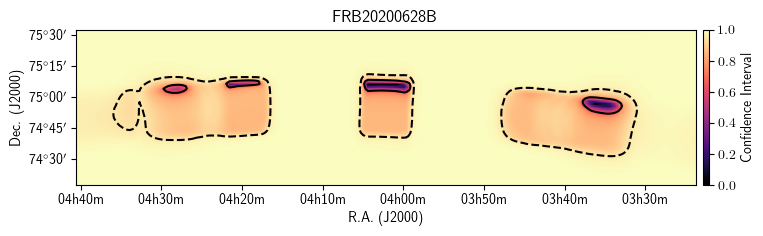

Localization

Loading

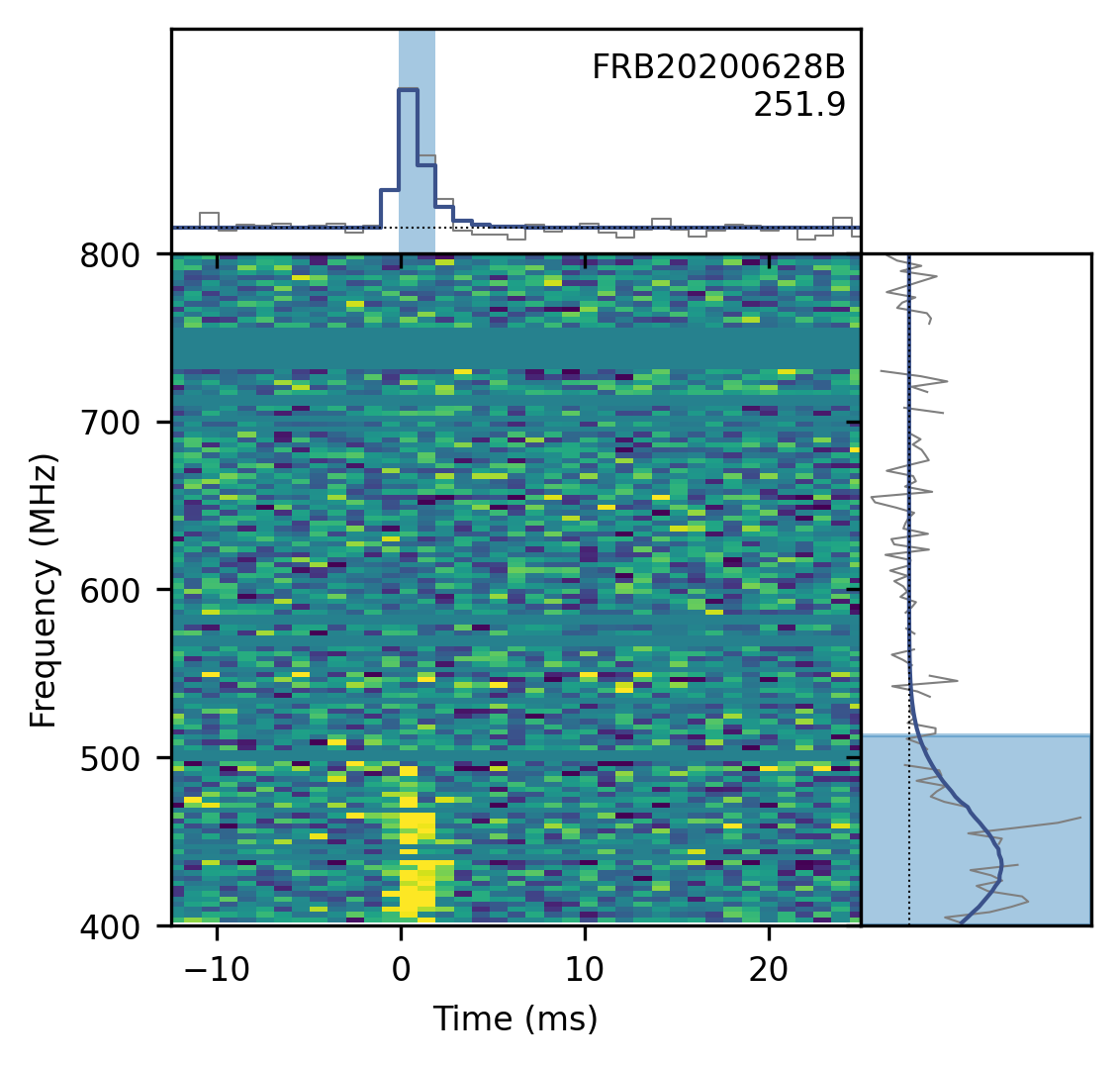

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
60.495± 0.185degrees
dec
75.086± 0.051degrees
gl
134.38degrees
gb
16.64degrees

Detection and dispersion

bonsai_snr
19.3
snr_fitb
26.6
bonsai_dm
250.7pc cm⁻³
dm_fitb
251.9042± 0.00846pc cm⁻³
dm_exc_ne2001
164.4pc cm⁻³
dm_exc_ymw16
143.9pc cm⁻³

Arrival time

mjd_400
59028.73656992951± 5.13 × 10⁻¹⁰MJD
mjd_inf
59028.73649439235± 2.59 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000173± 0.0000209s
scat_time
0.001234± 0.0000904s

Flux and spectrum

flux
0.52± 0.42Jy
fluence
1.36± 1.05Jy ms
peak_freq
433.6MHz
low_freq
400.2MHz
high_freq
513.3MHz
sp_idx
12.94± 2.46
sp_run
-80.72± 11.16

Exposure and fluence thresholds

exp_up
292.50± 165.36hour
exp_low
278.29± 88.58hour
low_ft_68
5.0Jy ms
up_ft_68
0.9Jy ms
low_ft_95
11.2Jy ms
up_ft_95
1.9Jy ms

Fit quality

chi_sq
2035792.129
dof
2036495
flag_frac
0.233
