CHIME/FRBPublic data

FRB 20200628D

One-off burst

Event ID
95257408
Arrival, 400 MHz
2020-06-28 03:12:28.524 UTC
Right ascension
204.971°
Declination
8.406°

Loading

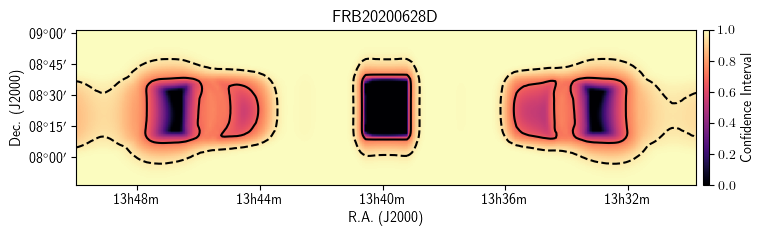

Localization

Loading

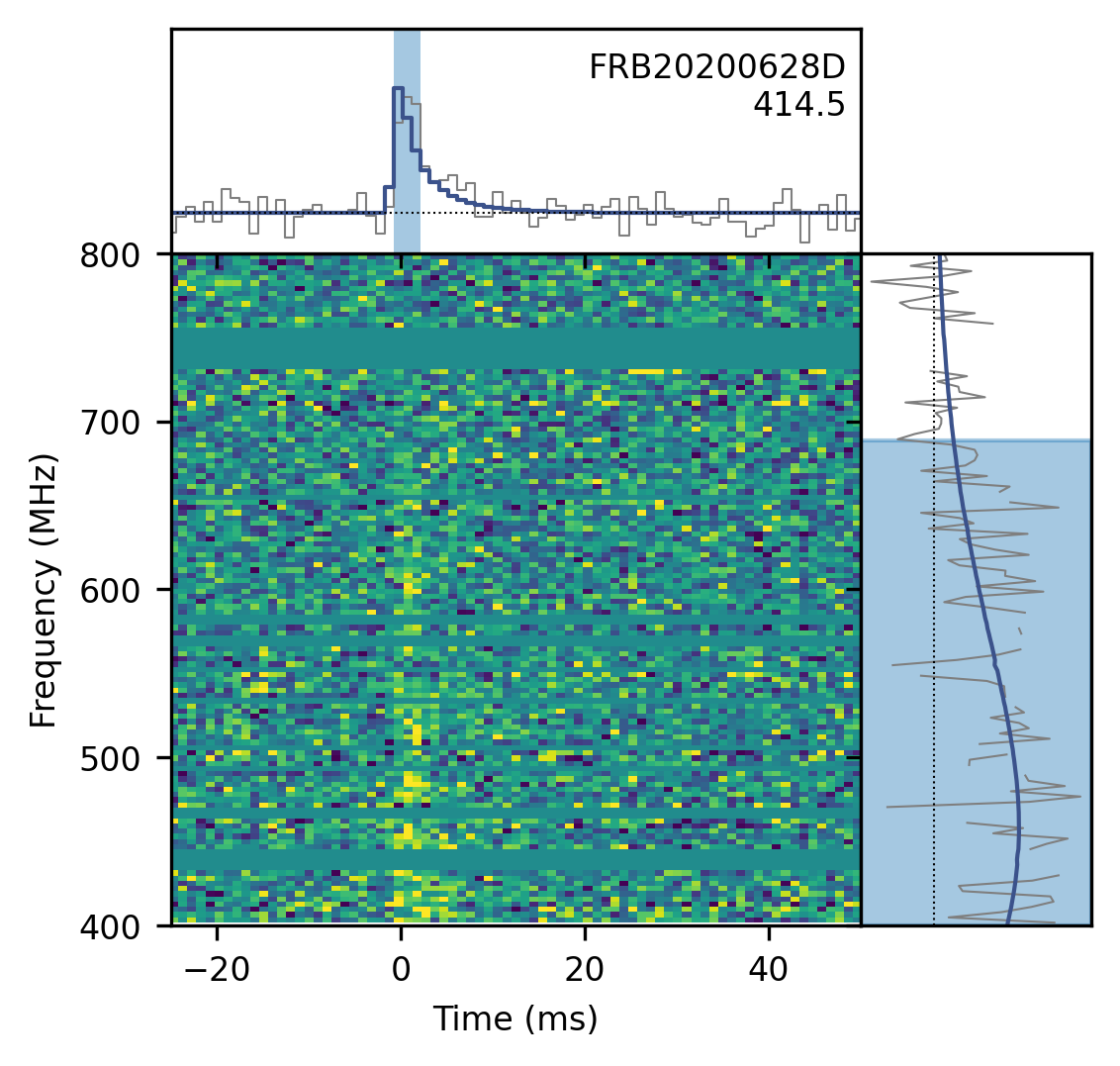

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.
  • Fitburst. Fitburst was run with an older version that used the upper edge of the frequency channel and the start of the time integration rather than the channel and integration centers used in the current version.

Position

ra
204.971± 0.198degrees
dec
8.406± 0.262degrees
gl
336.66degrees
gb
68.05degrees

Detection and dispersion

bonsai_snr
15.5
snr_fitb
18.5
bonsai_dm
415.7pc cm⁻³
dm_fitb
414.5496± 0.09850pc cm⁻³
dm_exc_ne2001
389.8pc cm⁻³
dm_exc_ymw16
392.8pc cm⁻³

Arrival time

mjd_400
59028.13366347274± 5.11 × 10⁻⁸MJD
mjd_inf
59028.133539163995± 5.91 × 10⁻⁸MJD

Burst shape

bc_width
0.00295s
width_fitb
0.000074± 0.0016392s
scat_time
0.006853± 0.0008894s

Flux and spectrum

flux
1.09± 0.81Jy
fluence
5.62± 2.35Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
688.6MHz
sp_idx
-1.16± 1.47
sp_run
-5.68± 8.07

Exposure and fluence thresholds

exp_up
73.42± 40.71hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.5Jy ms
low_ft_95
—
up_ft_95
6.5Jy ms

Fit quality

chi_sq
1956855.146
dof
1957277
flag_frac
0.263
