FRB 20200701D

One-off burst

Event ID
95627572
Arrival, 400 MHz
2020-07-01 10:55:47.907 UTC
Right ascension
322.439°
Declination
60.931°

Loading

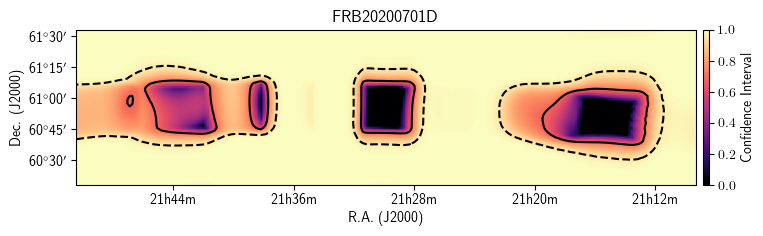

Localization

Loading

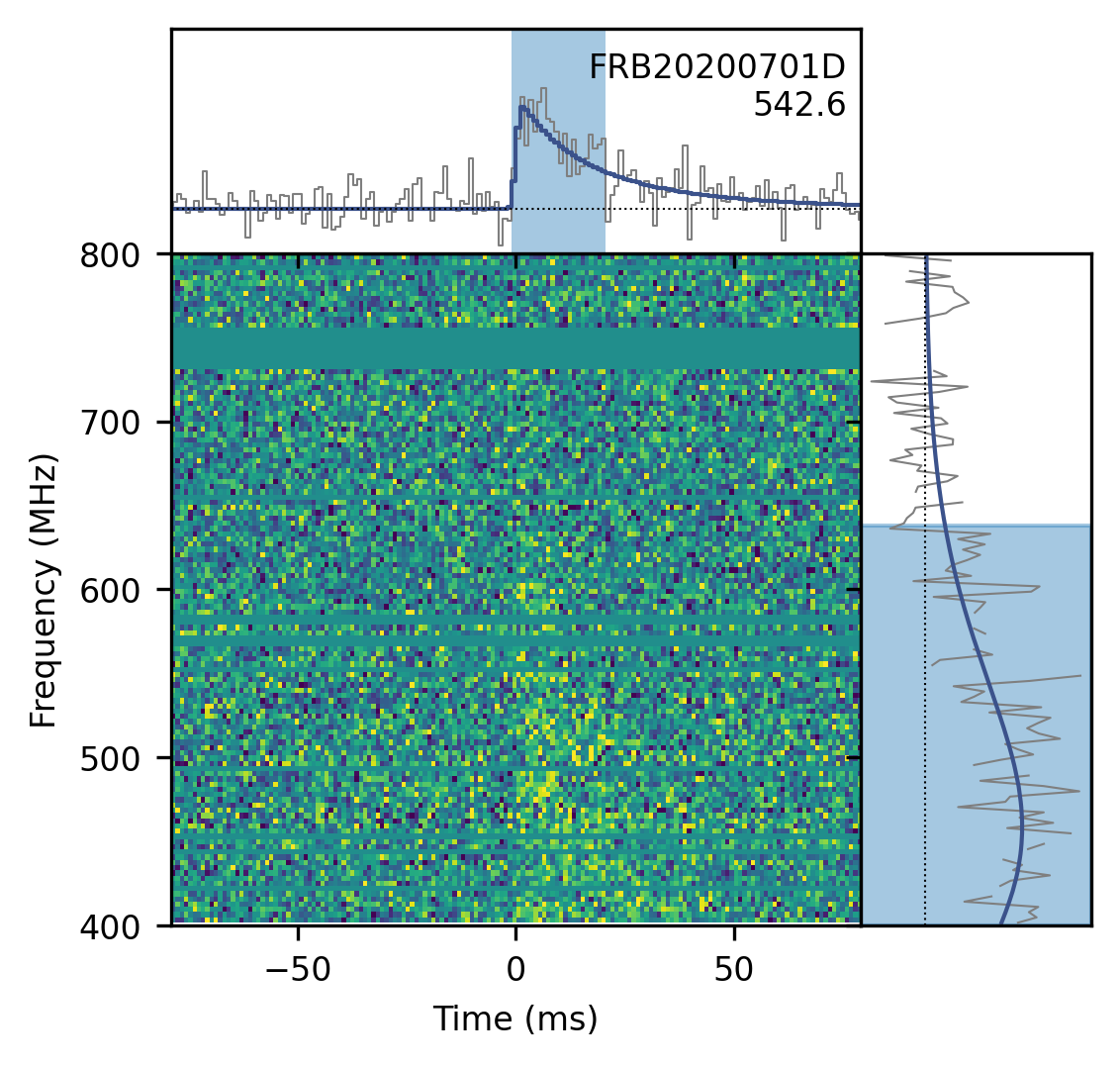

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
322.439± 0.217degrees
dec
60.931± 0.213degrees
gl
100.76degrees
gb
7.07degrees

Detection and dispersion

bonsai_snr
14.1
snr_fitb
22.3
bonsai_dm
556.4pc cm⁻³
dm_fitb
542.6291± 0.04795pc cm⁻³
dm_exc_ne2001
366.0pc cm⁻³
dm_exc_ymw16
257.4pc cm⁻³

Arrival time

mjd_400
59031.455415589495± 5.17 × 10⁻⁹MJD
mjd_inf
59031.45525287424± 1.53 × 10⁻⁸MJD

Burst shape

bc_width
0.02163s
width_fitb
0.000551± 0.0003106s
scat_time
0.045414± 0.0043305s

Flux and spectrum

flux
0.40± 0.16Jy
fluence
4.32± 1.09Jy ms
peak_freq
409.5MHz
low_freq
400.2MHz
high_freq
638.2MHz
sp_idx
0.54± 1.19
sp_run
-11.70± 2.66

Exposure and fluence thresholds

exp_up
119.11± 91.69hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.6Jy ms
low_ft_95
—
up_ft_95
2.7Jy ms

Fit quality

chi_sq
2128022.099
dof
2128511
flag_frac
0.198
