FRB 20200702D

One-off burst

Event ID
95809513
Arrival, 400 MHz
2020-07-02 10:59:26.438 UTC
Right ascension
326.347°
Declination
32.705°

Loading

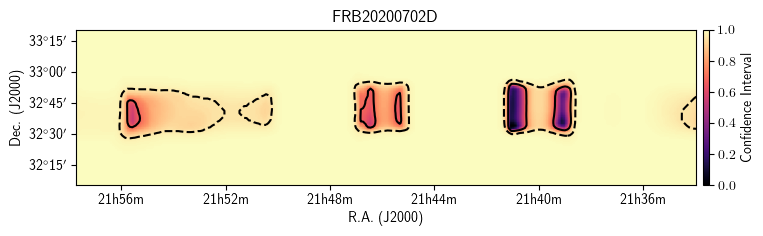

Localization

Loading

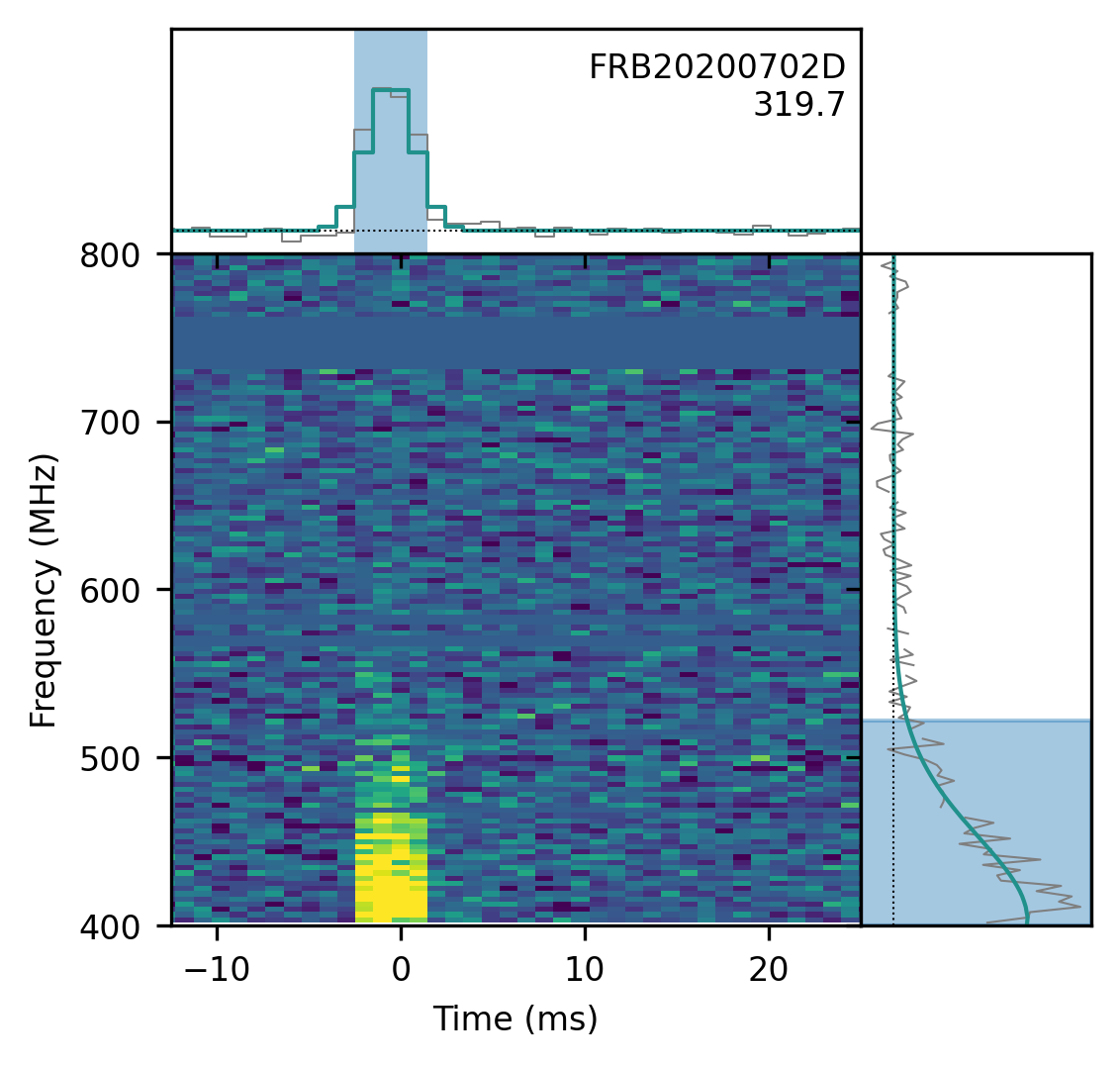

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
326.347± 0.024degrees
dec
32.705± 0.125degrees
gl
83.60degrees
gb
-15.61degrees

Detection and dispersion

bonsai_snr
38.4
snr_fitb
54.9
bonsai_dm
318.6pc cm⁻³
dm_fitb
319.7384± 0.01325pc cm⁻³
dm_exc_ne2001
233.4pc cm⁻³
dm_exc_ymw16
246.9pc cm⁻³

Arrival time

mjd_400
59032.457944887035± 5.82 × 10⁻¹⁰MJD
mjd_inf
59032.45784900882± 4.02 × 10⁻⁹MJD

Burst shape

bc_width
0.00393s
width_fitb
0.001200± 0.0000235s
scat_time
0.000000s

Flux and spectrum

flux
1.45± 0.62Jy
fluence
4.64± 1.77Jy ms
peak_freq
403.6MHz
low_freq
400.2MHz
high_freq
521.8MHz
sp_idx
0.60± 1.01
sp_run
-34.94± 5.23

Exposure and fluence thresholds

exp_up
102.61± 36.32hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.1Jy ms
low_ft_95
—
up_ft_95
1.9Jy ms

Fit quality

chi_sq
2057299.737
dof
2060310
flag_frac
0.224
