FRB 20200704A

One-off burst

Event ID
96291415
Arrival, 400 MHz
2020-07-04 02:47:36.549 UTC
Right ascension
203.990°
Declination
53.690°

Loading

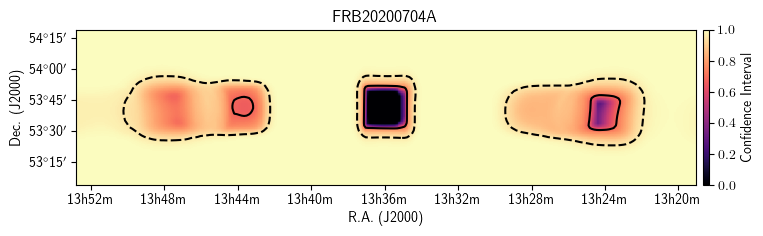

Localization

Loading

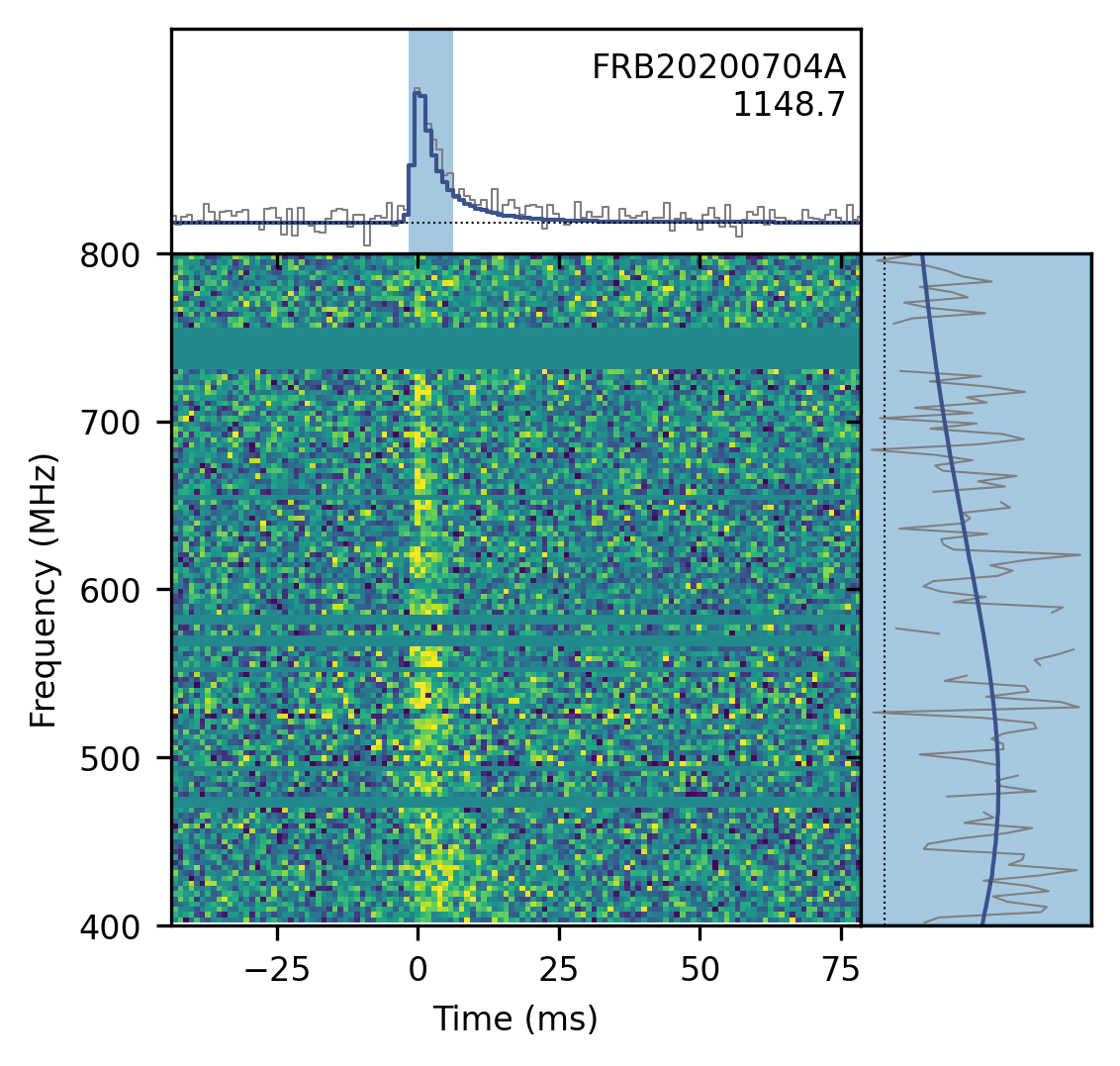

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
203.990± 0.174degrees
dec
53.690± 0.172degrees
gl
108.75degrees
gb
62.19degrees

Detection and dispersion

bonsai_snr
26.3
snr_fitb
34.0
bonsai_dm
1148.4pc cm⁻³
dm_fitb
1148.6843± 0.01161pc cm⁻³
dm_exc_ne2001
1118.2pc cm⁻³
dm_exc_ymw16
1126.1pc cm⁻³

Arrival time

mjd_400
59034.11639524± 2.07 × 10⁻⁹MJD
mjd_inf
59034.116050790224± 4.05 × 10⁻⁹MJD

Burst shape

bc_width
0.00786s
width_fitb
0.000570± 0.0000836s
scat_time
0.012500± 0.0009002s

Flux and spectrum

flux
1.05± 0.44Jy
fluence
6.81± 2.50Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-1.55± 0.58
sp_run
-1.58± 0.86

Exposure and fluence thresholds

exp_up
138.80± 59.48hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.1Jy ms
low_ft_95
—
up_ft_95
5.5Jy ms

Fit quality

chi_sq
2091885.606
dof
2093033
flag_frac
0.211
