CHIME/FRBPublic data

FRB 20200709B

One-off burst

Event ID
97939957
Arrival, 400 MHz
2020-07-09 21:51:30.096 UTC
Right ascension
135.659°
Declination
45.137°

Loading

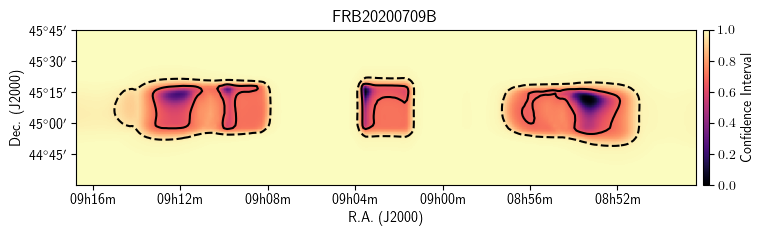

Localization

Loading

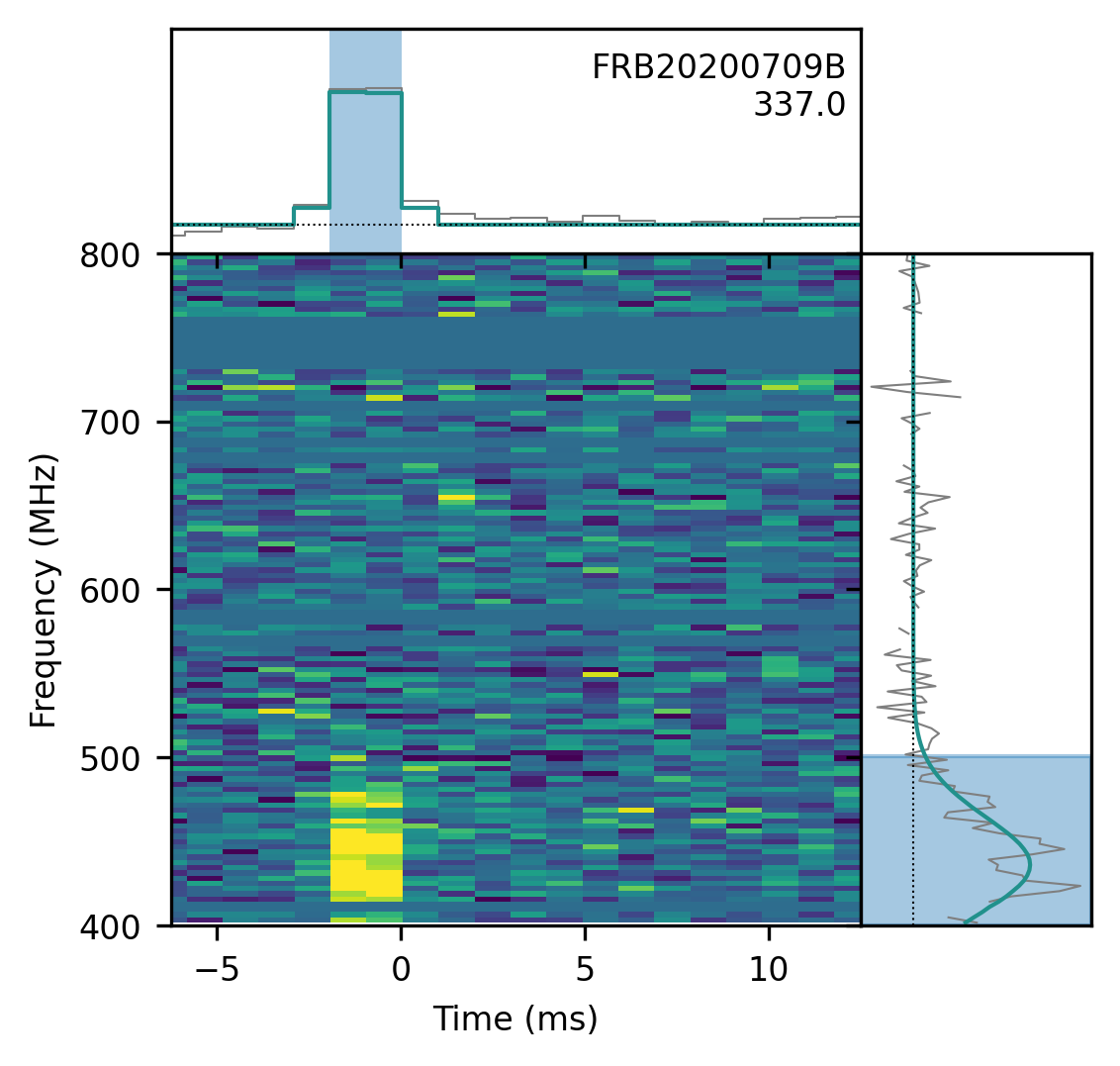

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
135.659± 0.189degrees
dec
45.137± 0.183degrees
gl
175.33degrees
gb
41.55degrees

Detection and dispersion

bonsai_snr
21.8
snr_fitb
34.1
bonsai_dm
338.1pc cm⁻³
dm_fitb
336.9930± 0.00902pc cm⁻³
dm_exc_ne2001
293.4pc cm⁻³
dm_exc_ymw16
303.5pc cm⁻³

Arrival time

mjd_400
59039.910765001965± 4.58 × 10⁻¹⁰MJD
mjd_inf
59039.91066394969± 2.75 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000512± 0.0000145s
scat_time
0.000000s

Flux and spectrum

flux
0.56± 0.27Jy
fluence
1.48± 0.71Jy ms
peak_freq
435.8MHz
low_freq
400.2MHz
high_freq
500.8MHz
sp_idx
20.28± 2.45
sp_run
-119.04± 12.68

Exposure and fluence thresholds

exp_up
113.70± 55.56hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
0.7Jy ms
low_ft_95
—
up_ft_95
1.3Jy ms

Fit quality

chi_sq
1982852.415
dof
1984008
flag_frac
0.253
