CHIME/FRBPublic data

FRB 20200714B

One-off burst

Event ID
99661168
Arrival, 400 MHz
2020-07-14 01:40:37.196 UTC
Right ascension
196.113°
Declination
75.085°

Loading

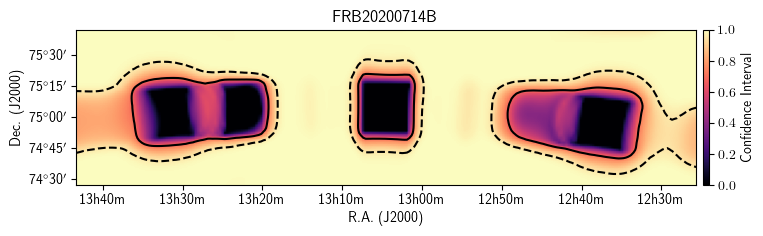

Localization

Loading

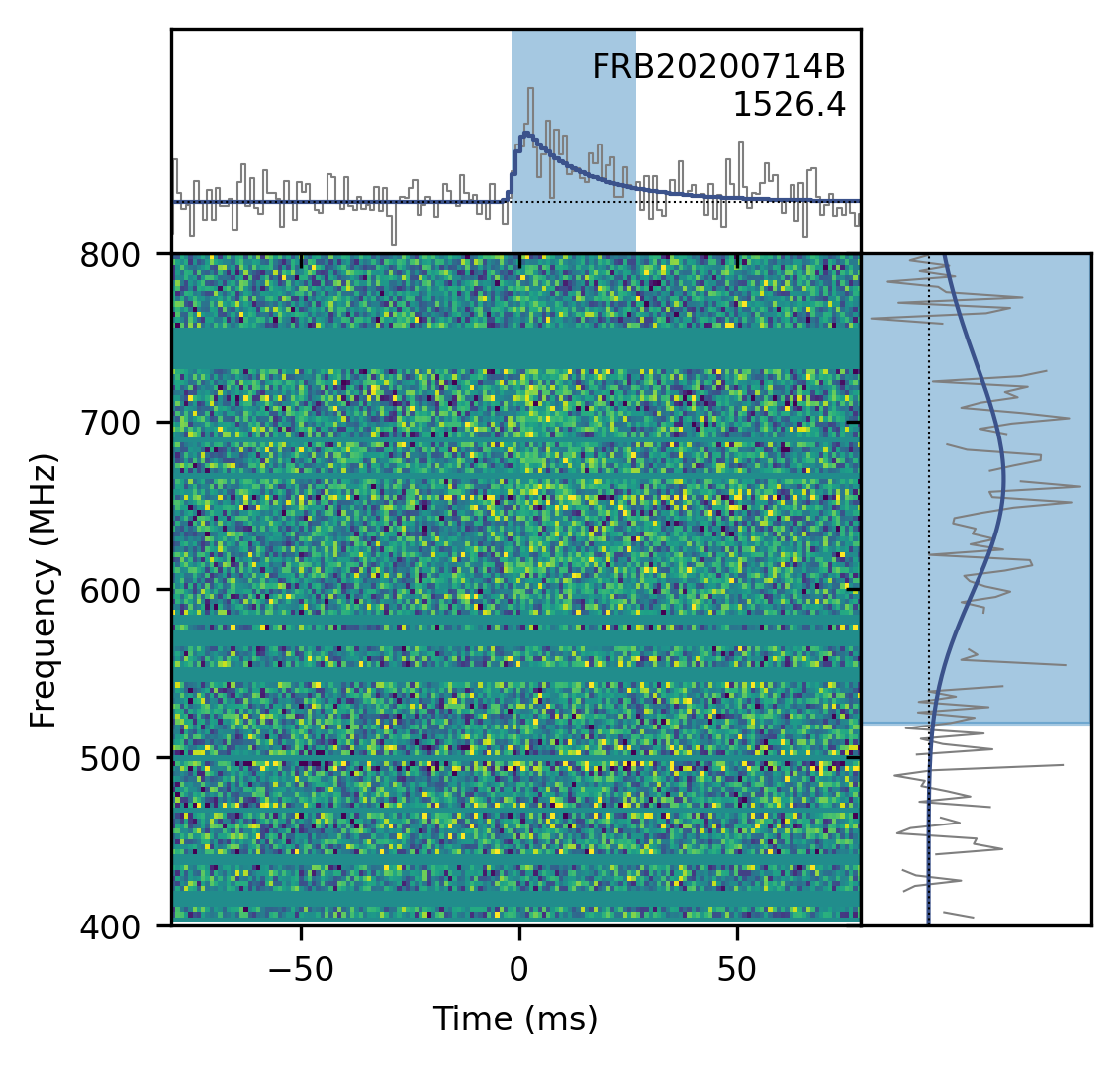

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
196.113± 0.229degrees
dec
75.085± 0.265degrees
gl
121.81degrees
gb
42.01degrees

Detection and dispersion

bonsai_snr
9.8
snr_fitb
14.1
bonsai_dm
1539.9pc cm⁻³
dm_fitb
1526.4047± 0.30139pc cm⁻³
dm_exc_ne2001
1487.4pc cm⁻³
dm_exc_ymw16
1494.8pc cm⁻³

Arrival time

mjd_400
59044.06987495001± 5.95 × 10⁻⁸MJD
mjd_inf
59044.069417235245± 1.08 × 10⁻⁷MJD

Burst shape

bc_width
0.02851s
width_fitb
0.001161± 0.0004817s
scat_time
0.117829± 0.0181897s

Flux and spectrum

flux
0.33± 0.13Jy
fluence
6.11± 1.17Jy ms
peak_freq
654.8MHz
low_freq
520.1MHz
high_freq
800.2MHz
sp_idx
42.75± 13.69
sp_run
-43.42± 13.01

Exposure and fluence thresholds

exp_up
270.25± 154.45hour
exp_low
245.78± 124.27hour
low_ft_68
47.5Jy ms
up_ft_68
7.9Jy ms
low_ft_95
77.6Jy ms
up_ft_95
13.3Jy ms

Fit quality

chi_sq
1936024.300
dof
1936217
flag_frac
0.271
