FRB 20200717B

One-off burst

Event ID
100941865
Arrival, 400 MHz
2020-07-17 16:26:46.792 UTC
Right ascension
65.305°
Declination
54.092°

Loading

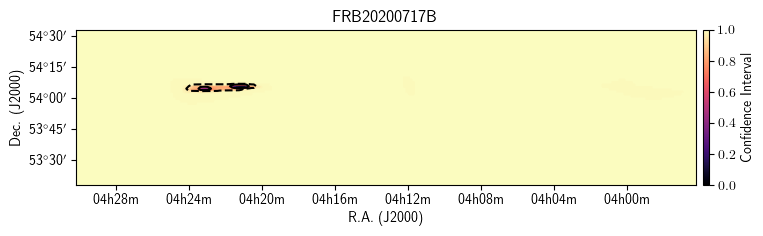

Localization

Loading

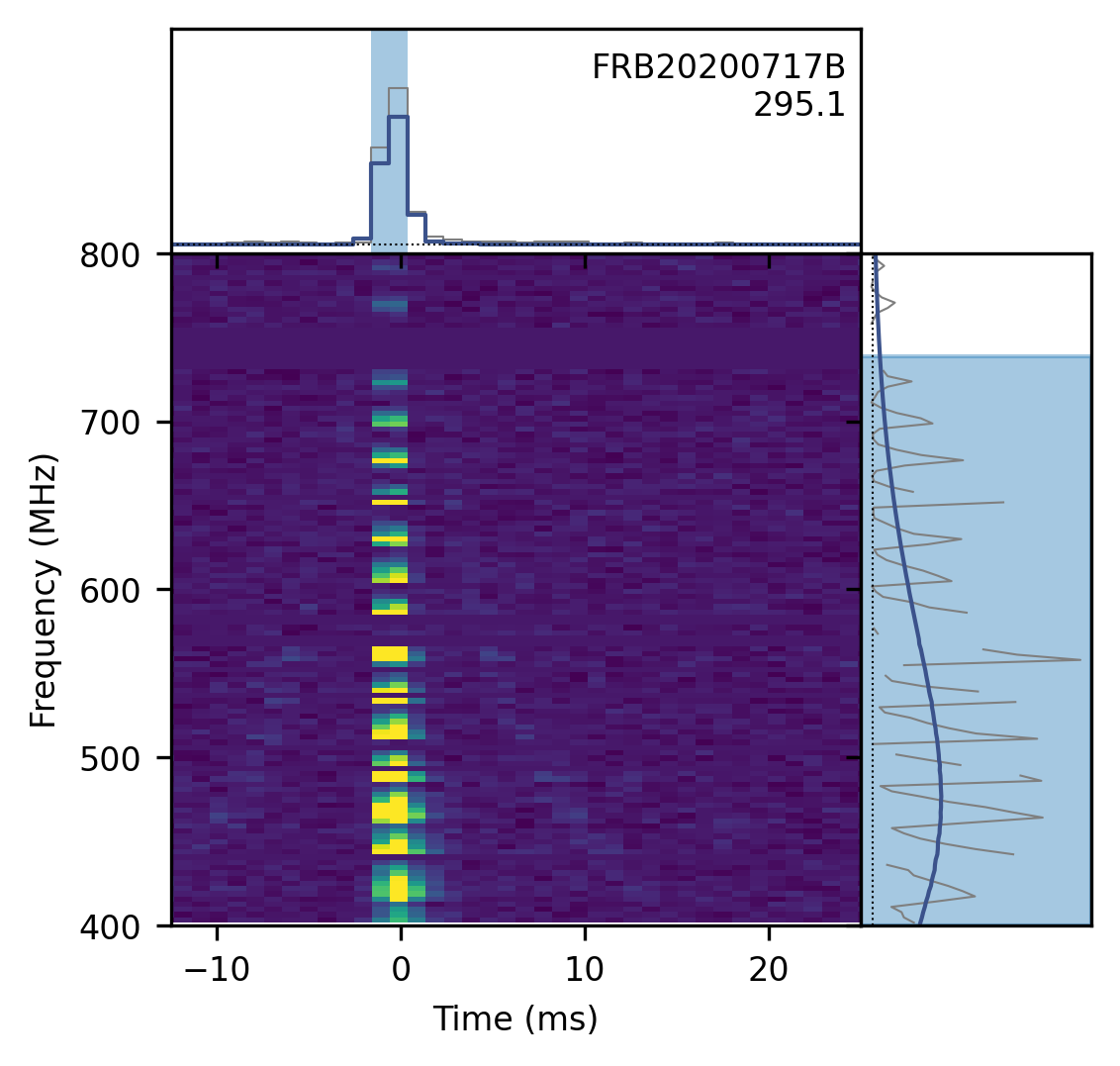

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
65.305± 0.075degrees
dec
54.092± 0.015degrees
gl
150.68degrees
gb
2.93degrees

Detection and dispersion

bonsai_snr
77.8
snr_fitb
291.8
bonsai_dm
296.0pc cm⁻³
dm_fitb
295.1427± 0.00050pc cm⁻³
dm_exc_ne2001
109.5pc cm⁻³
dm_exc_ymw16
7.1pc cm⁻³

Arrival time

mjd_400
59047.685263791434± 6.35 × 10⁻¹¹MJD
mjd_inf
59047.68517528858± 1.63 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000471± 0.0000018s
scat_time
0.000596± 0.0000023s

Flux and spectrum

flux
10.40± 3.41Jy
fluence
22.87± 7.62Jy ms
peak_freq
459.9MHz
low_freq
400.2MHz
high_freq
738.5MHz
sp_idx
2.86± 0.09
sp_run
-10.27± 0.18

Exposure and fluence thresholds

exp_up
31.83± 35.89hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.2Jy ms
low_ft_95
—
up_ft_95
3.6Jy ms

Fit quality

chi_sq
1982437.046
dof
2067599
flag_frac
0.221
