FRB 20200721B

One-off burst

Event ID
103453956
Arrival, 400 MHz
2020-07-21 08:46:05.396 UTC
Right ascension
132.913°
Declination
77.122°

Loading

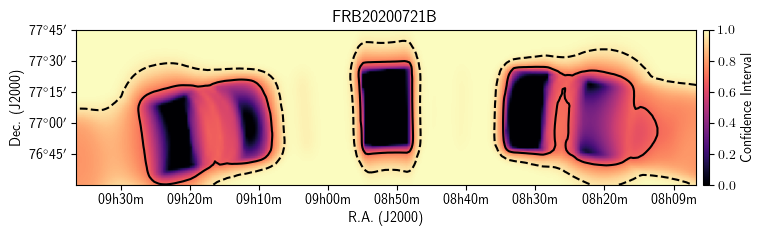

Localization

Loading

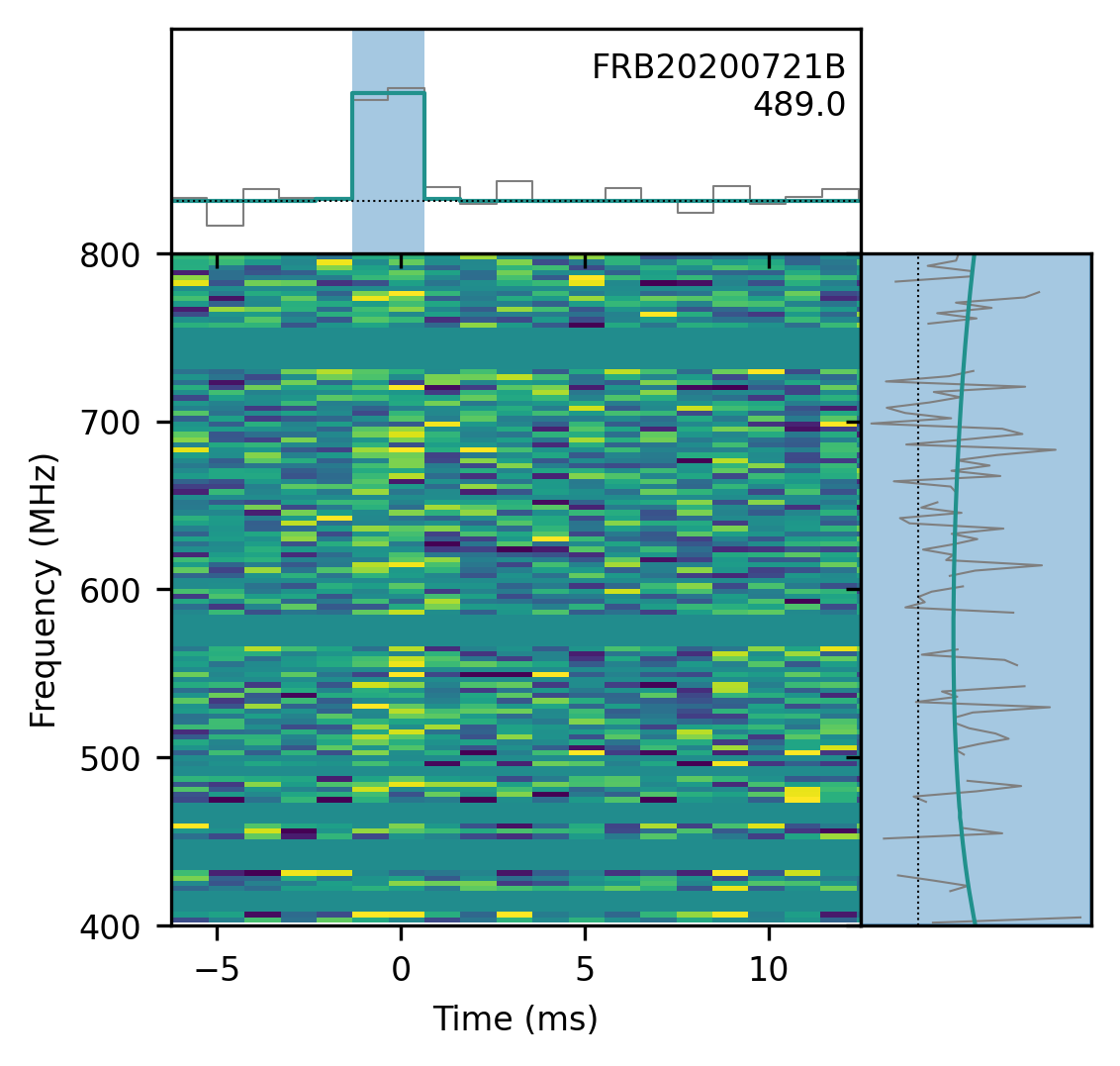

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
132.913± 0.219degrees
dec
77.122± 0.375degrees
gl
136.22degrees
gb
32.95degrees

Detection and dispersion

bonsai_snr
10.6
snr_fitb
12.4
bonsai_dm
486.9pc cm⁻³
dm_fitb
488.9693± 0.00247pc cm⁻³
dm_exc_ne2001
440.9pc cm⁻³
dm_exc_ymw16
446.8pc cm⁻³

Arrival time

mjd_400
59051.36534023553± 4.28 × 10⁻¹⁰MJD
mjd_inf
59051.365193610945± 8.53 × 10⁻¹⁰MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000236± 0.0000086s
scat_time
0.000000s

Flux and spectrum

flux
0.79± 0.25Jy
fluence
1.48± 0.45Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-3.08± 1.68
sp_run
4.24± 2.19

Exposure and fluence thresholds

exp_up
317.34± 170.13hour
exp_low
321.92± 194.62hour
low_ft_68
1.8Jy ms
up_ft_68
0.4Jy ms
low_ft_95
3.2Jy ms
up_ft_95
0.7Jy ms

Fit quality

chi_sq
1716236.872
dof
1716384
flag_frac
0.353
