FRB 20200724B

One-off burst

Event ID
104320995
Arrival, 400 MHz
2020-07-24 02:35:40.981 UTC
Right ascension
220.169°
Declination
72.081°

Loading

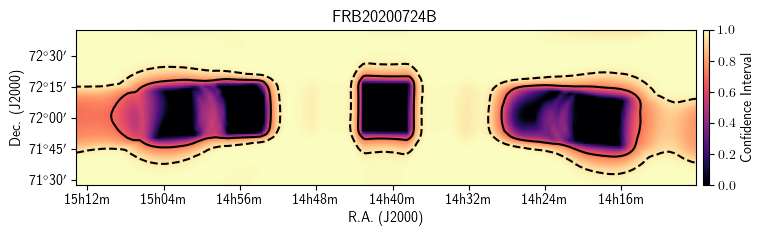

Localization

Loading

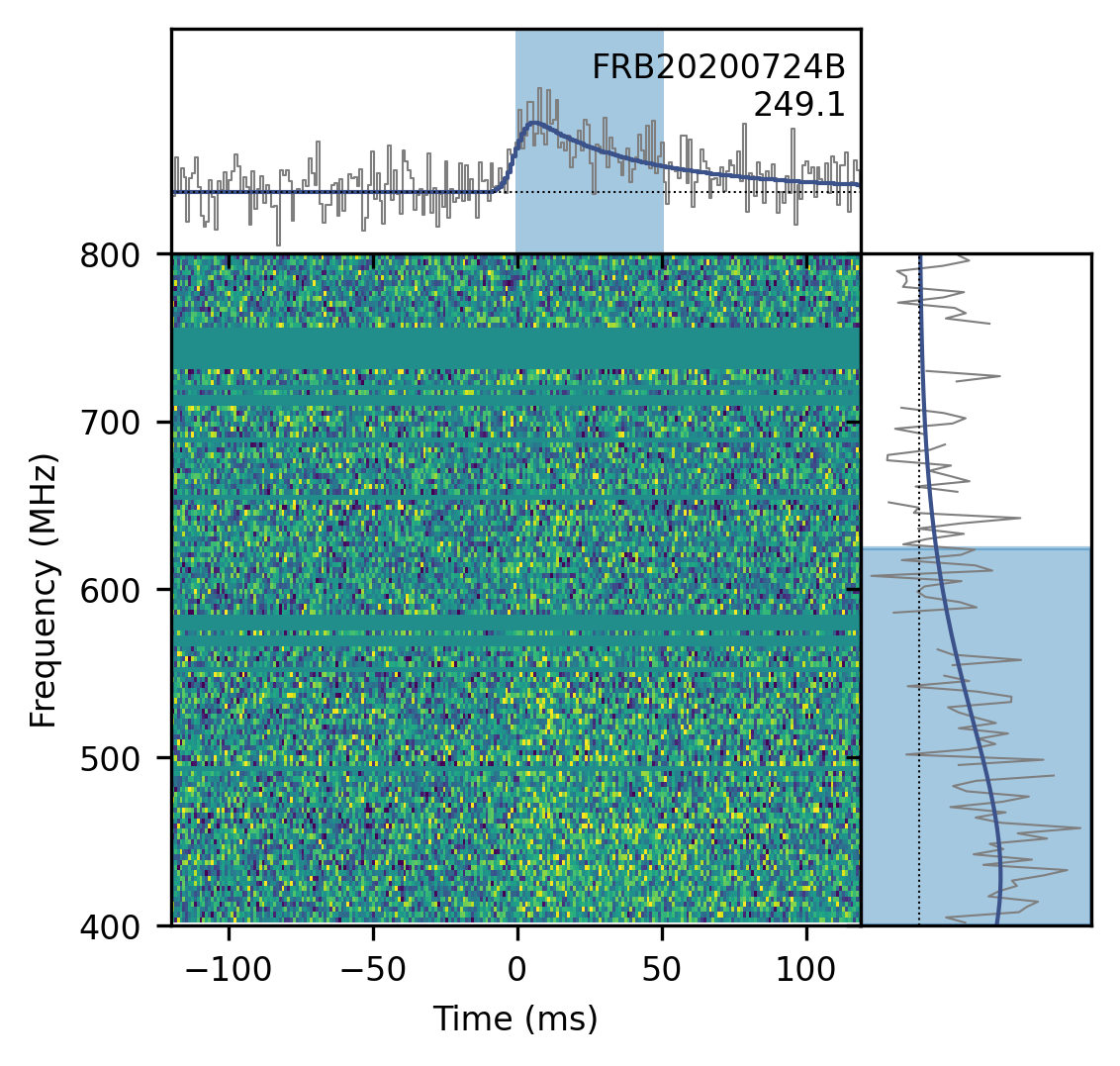

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
220.169± 0.227degrees
dec
72.081± 0.259degrees
gl
111.87degrees
gb
42.62degrees

Detection and dispersion

bonsai_snr
9.3
snr_fitb
21.9
bonsai_dm
252.3pc cm⁻³
dm_fitb
249.0548± 0.19335pc cm⁻³
dm_exc_ne2001
211.2pc cm⁻³
dm_exc_ymw16
218.3pc cm⁻³

Arrival time

mjd_400
59054.10811321137± 2.27 × 10⁻⁸MJD
mjd_inf
59054.108038528655± 6.23 × 10⁻⁸MJD

Burst shape

bc_width
0.05112s
width_fitb
0.003595± 0.0014955s
scat_time
0.094713± 0.0121202s

Flux and spectrum

flux
0.06± 0.08Jy
fluence
1.96± 1.65Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
624.4MHz
sp_idx
-1.56± 1.20
sp_run
-8.14± 2.86

Exposure and fluence thresholds

exp_up
227.67± 133.97hour
exp_low
164.88± 112.31hour
low_ft_68
11.9Jy ms
up_ft_68
1.3Jy ms
low_ft_95
31.0Jy ms
up_ft_95
3.2Jy ms

Fit quality

chi_sq
2986567.604
dof
2987041
flag_frac
0.253
