FRB 20200801D

One-off burst

Event ID
105782080
Arrival, 400 MHz
2020-08-01 18:33:29.601 UTC
Right ascension
109.330°
Declination
13.299°

Loading

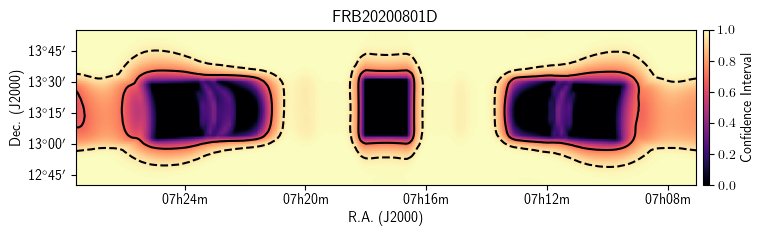

Localization

Loading

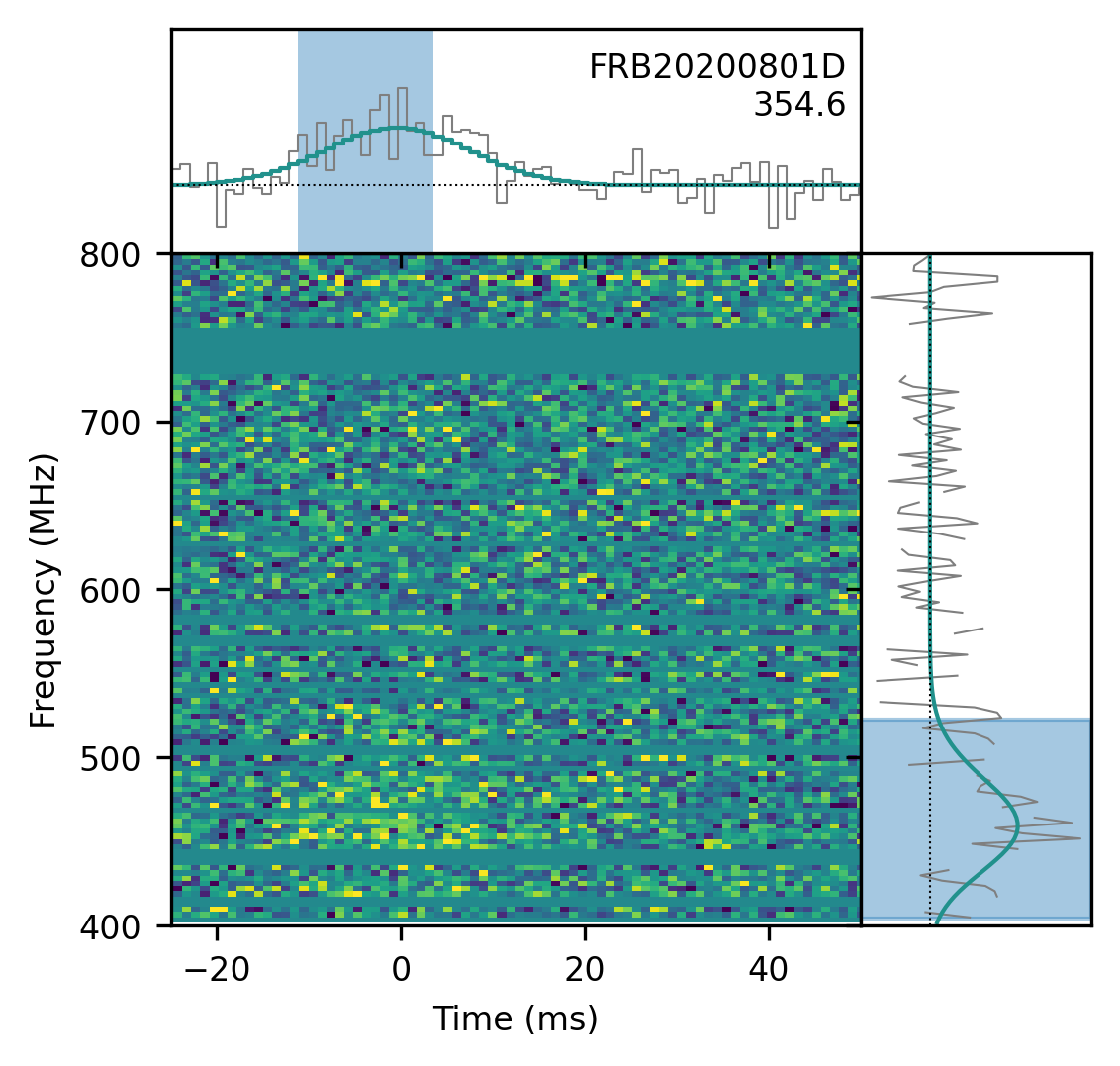

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
109.330± 0.225degrees
dec
13.299± 0.296degrees
gl
203.84degrees
gb
11.68degrees

Detection and dispersion

bonsai_snr
9.9
snr_fitb
12.7
bonsai_dm
355.8pc cm⁻³
dm_fitb
354.5934± 0.46358pc cm⁻³
dm_exc_ne2001
241.4pc cm⁻³
dm_exc_ymw16
198.3pc cm⁻³

Arrival time

mjd_400
59062.77325927121± 3.66 × 10⁻⁸MJD
mjd_inf
59062.77315294119± 1.44 × 10⁻⁷MJD

Burst shape

bc_width
0.01475s
width_fitb
0.007871± 0.0008297s
scat_time
0.000000s

Flux and spectrum

flux
0.38± 0.25Jy
fluence
3.62± 0.75Jy ms
peak_freq
459.4MHz
low_freq
404.0MHz
high_freq
522.3MHz
sp_idx
38.50± 9.92
sp_run
-139.57± 34.37

Exposure and fluence thresholds

exp_up
70.98± 48.98hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.8Jy ms
low_ft_95
—
up_ft_95
4.7Jy ms

Fit quality

chi_sq
1866726.662
dof
1866882
flag_frac
0.297
