FRB 20200806B

One-off burst

Event ID
113441114
Arrival, 400 MHz
2020-08-06 11:43:08.213 UTC
Right ascension
10.382°
Declination
63.699°

Loading

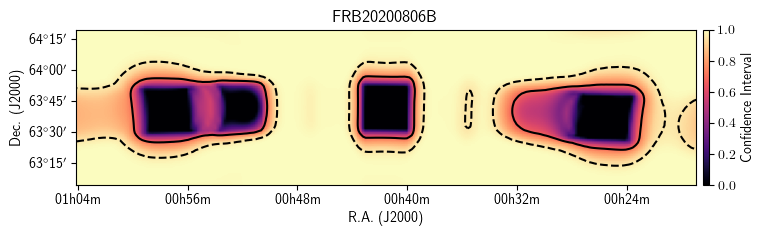

Localization

Loading

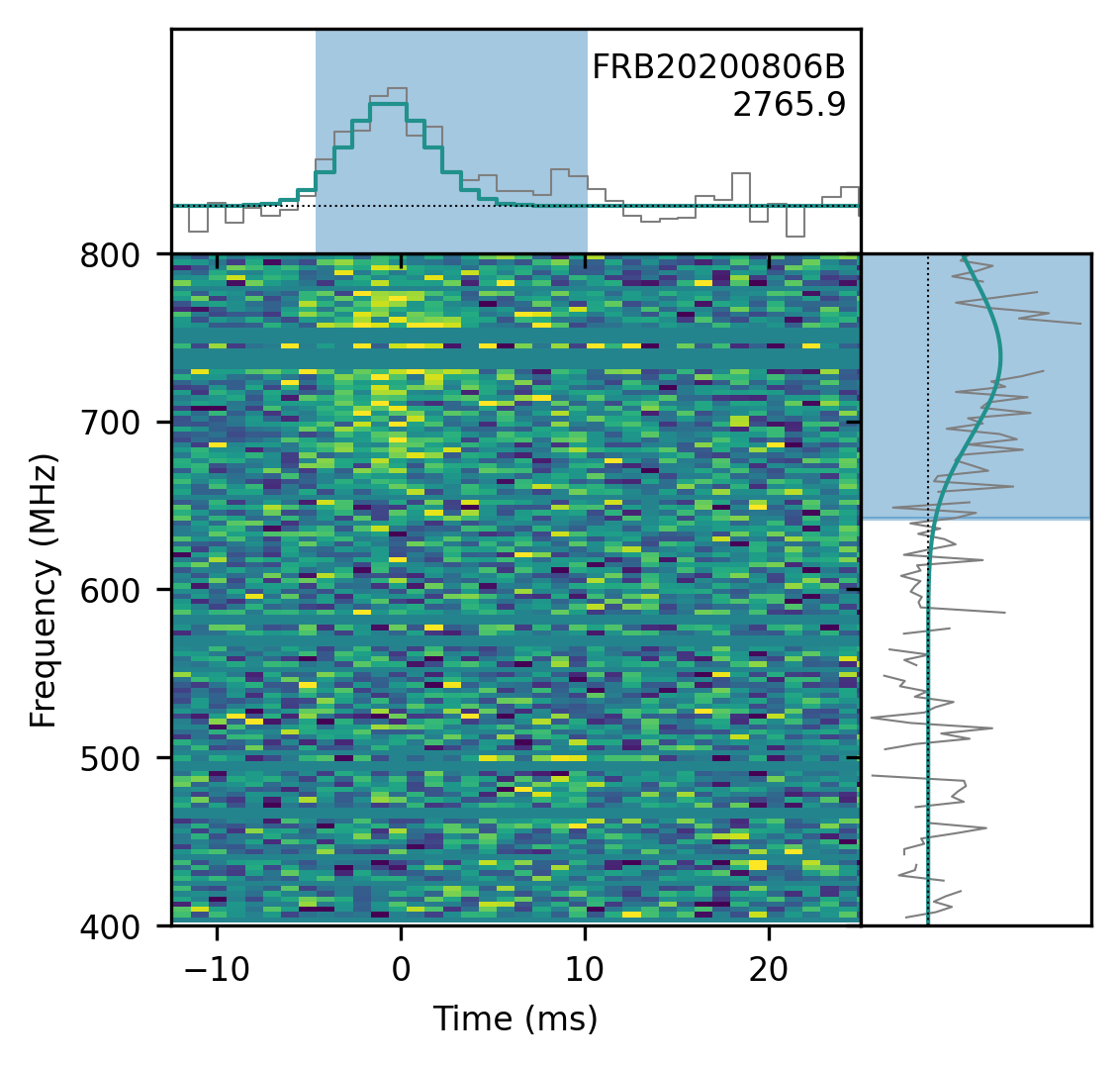

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
10.382± 0.230degrees
dec
63.699± 0.251degrees
gl
121.83degrees
gb
0.85degrees

Detection and dispersion

bonsai_snr
10.4
snr_fitb
16.3
bonsai_dm
2765.9pc cm⁻³
dm_fitb
2765.8583± 0.24073pc cm⁻³
dm_exc_ne2001
2539.3pc cm⁻³
dm_exc_ymw16
2434.2pc cm⁻³

Arrival time

mjd_400
59067.48828950445± 5.05 × 10⁻⁸MJD
mjd_inf
59067.4874601214± 8.81 × 10⁻⁸MJD

Burst shape

bc_width
0.01475s
width_fitb
0.002211± 0.0001992s
scat_time
0.000000s

Flux and spectrum

flux
0.40± 0.24Jy
fluence
5.12± 1.42Jy ms
peak_freq
738.3MHz
low_freq
642.1MHz
high_freq
800.2MHz
sp_idx
144.48± 28.30
sp_run
-117.96± 23.31

Exposure and fluence thresholds

exp_up
169.58± 100.12hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
3.2Jy ms
low_ft_95
—
up_ft_95
5.7Jy ms

Fit quality

chi_sq
1847021.576
dof
1847280
flag_frac
0.304
