FRB 20200809F

One-off burst

Event ID
114140813
Arrival, 400 MHz
2020-08-09 04:33:52.766 UTC
Right ascension
267.739°
Declination
60.635°

Loading

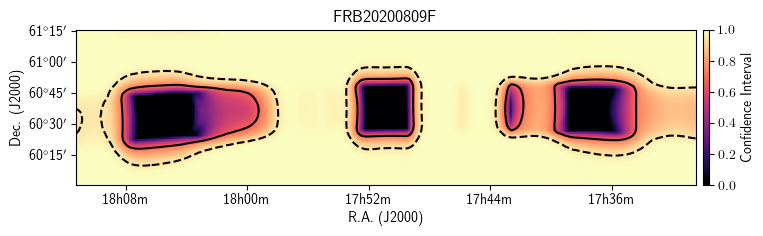

Localization

Loading

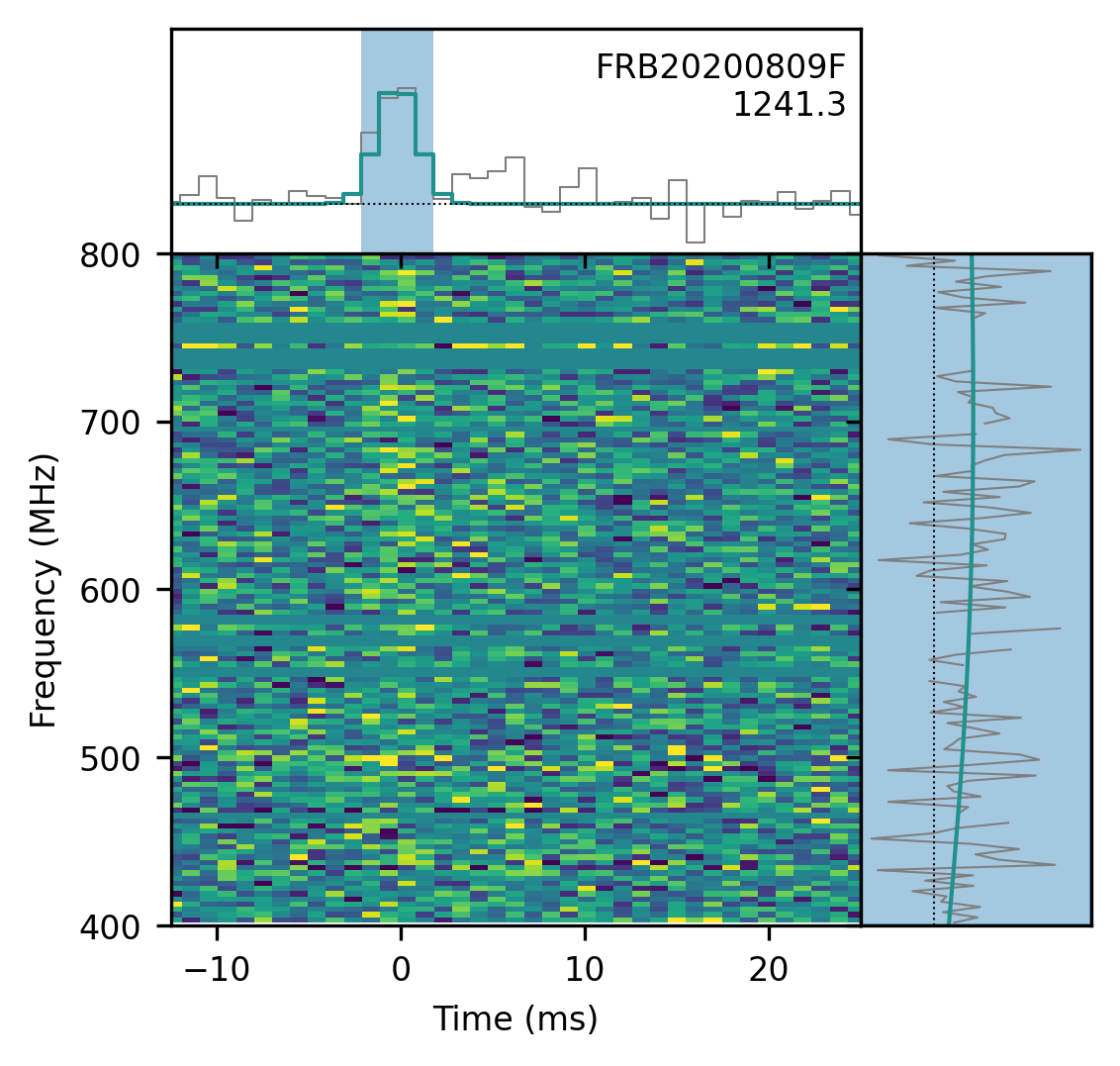

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
267.739± 0.234degrees
dec
60.635± 0.235degrees
gl
89.51degrees
gb
30.75degrees

Detection and dispersion

bonsai_snr
10.6
snr_fitb
11.2
bonsai_dm
1240.6pc cm⁻³
dm_fitb
1241.2692± 0.02079pc cm⁻³
dm_exc_ne2001
1194.3pc cm⁻³
dm_exc_ymw16
1200.2pc cm⁻³

Arrival time

mjd_400
59070.19019404773± 3.72 × 10⁻⁹MJD
mjd_inf
59070.18982183501± 7.26 × 10⁻⁹MJD

Burst shape

bc_width
0.00393s
width_fitb
0.000930± 0.0000906s
scat_time
0.000000s

Flux and spectrum

flux
0.45± 0.15Jy
fluence
1.79± 0.40Jy ms
peak_freq
702.3MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
2.84± 2.51
sp_run
-2.53± 2.97

Exposure and fluence thresholds

exp_up
150.11± 90.66hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.7Jy ms
low_ft_95
—
up_ft_95
3.0Jy ms

Fit quality

chi_sq
2143620.234
dof
2143740
flag_frac
0.192
