CHIME/FRBPublic data

FRB 20200813B

One-off burst

Event ID
116154972
Arrival, 400 MHz
2020-08-13 14:06:06.331 UTC
Right ascension
54.565°
Declination
36.340°

Loading

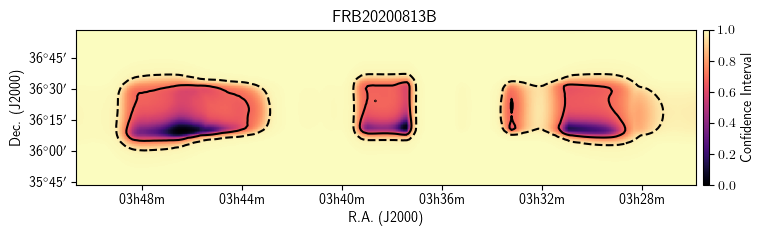

Localization

Loading

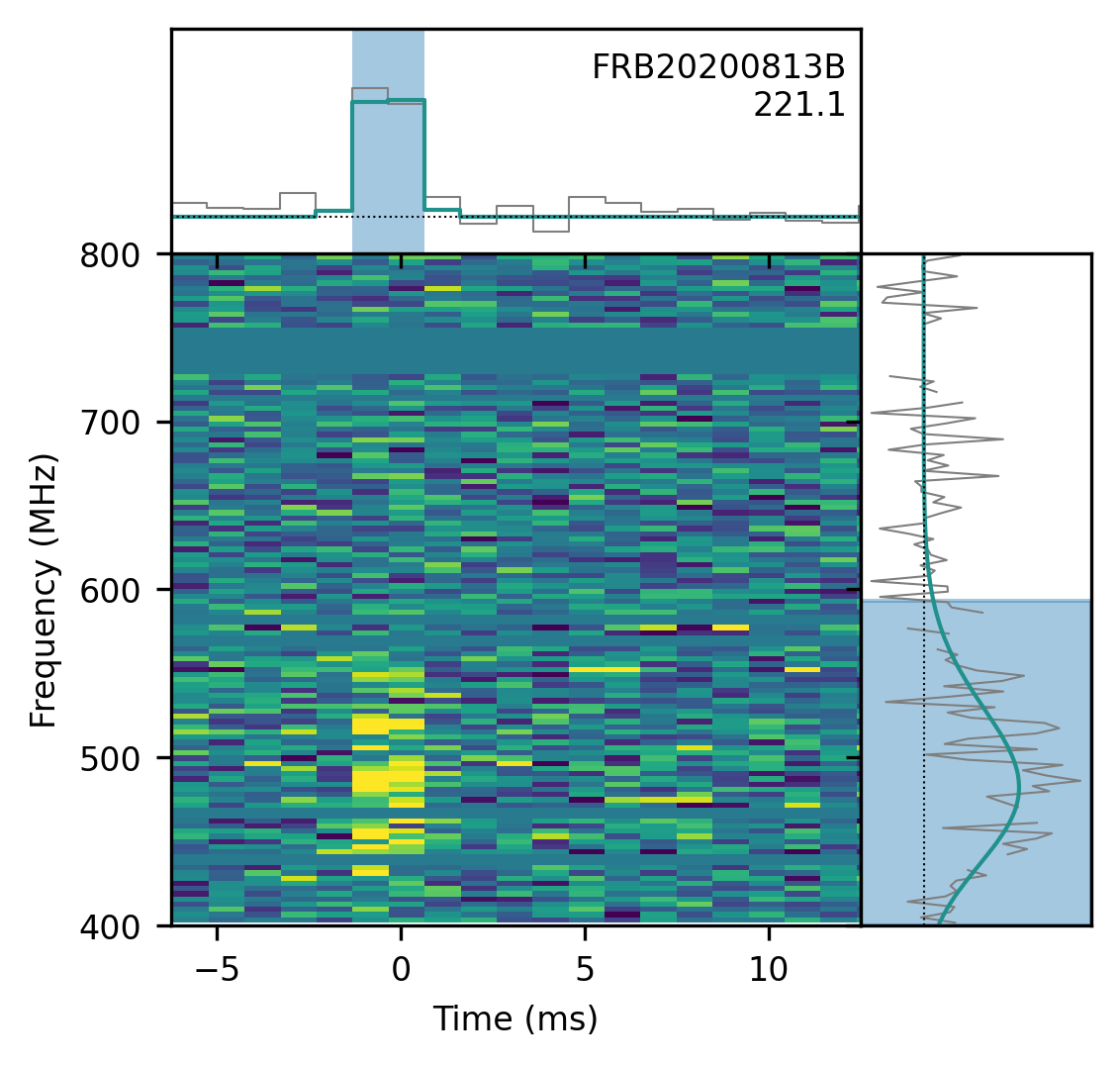

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
54.565± 0.208degrees
dec
36.340± 0.212degrees
gl
156.70degrees
gb
-15.37degrees

Detection and dispersion

bonsai_snr
15.1
snr_fitb
18.9
bonsai_dm
221.6pc cm⁻³
dm_fitb
221.0625± 0.00971pc cm⁻³
dm_exc_ne2001
125.3pc cm⁻³
dm_exc_ymw16
110.4pc cm⁻³

Arrival time

mjd_400
59074.587573280885± 9.99 × 10⁻¹⁰MJD
mjd_inf
59074.58750699206± 3.08 × 10⁻⁹MJD

Burst shape

bc_width
0.00197s
width_fitb
0.000409± 0.0000214s
scat_time
0.000000s

Flux and spectrum

flux
0.54± 0.28Jy
fluence
1.20± 0.47Jy ms
peak_freq
482.1MHz
low_freq
400.2MHz
high_freq
593.4MHz
sp_idx
19.88± 3.10
sp_run
-53.35± 8.04

Exposure and fluence thresholds

exp_up
84.47± 58.20hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
1.0Jy ms
low_ft_95
—
up_ft_95
1.7Jy ms

Fit quality

chi_sq
2114230.099
dof
2114580
flag_frac
0.203
