CHIME/FRBPublic data

FRB 20200814F

One-off burst

Event ID
116735828
Arrival, 400 MHz
2020-08-14 12:40:43.258 UTC
Right ascension
214.240°
Declination
77.152°

Loading

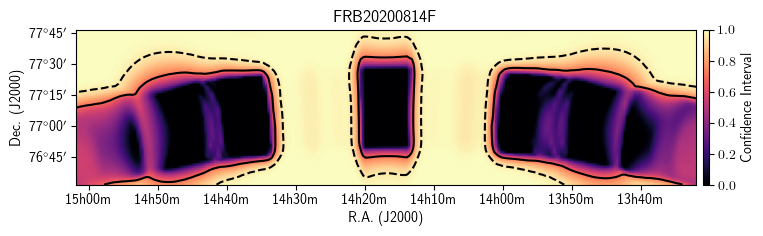

Localization

Loading

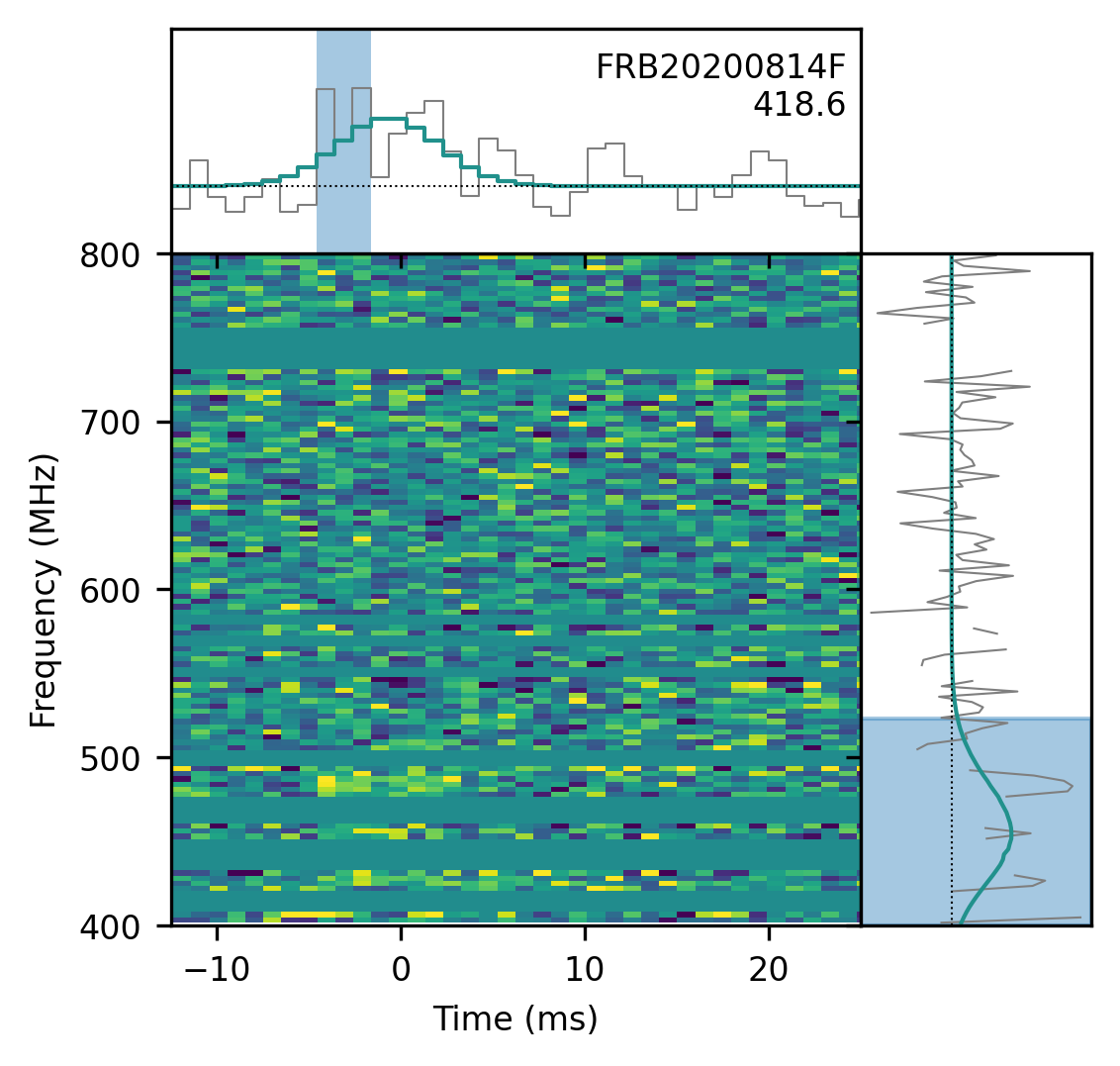

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
214.240± 0.230degrees
dec
77.152± 0.408degrees
gl
116.95degrees
gb
38.97degrees

Detection and dispersion

bonsai_snr
8.8
snr_fitb
7.8
bonsai_dm
417.3pc cm⁻³
dm_fitb
418.6324± 0.44876pc cm⁻³
dm_exc_ne2001
377.9pc cm⁻³
dm_exc_ymw16
384.7pc cm⁻³

Arrival time

mjd_400
59075.528278450685± 3.78 × 10⁻⁸MJD
mjd_inf
59075.52815291766± 1.40 × 10⁻⁷MJD

Burst shape

bc_width
0.00295s
width_fitb
0.002713± 0.0004880s
scat_time
0.000000s

Flux and spectrum

flux
0.38± 0.17Jy
fluence
1.53± 0.24Jy ms
peak_freq
454.8MHz
low_freq
400.2MHz
high_freq
523.2MHz
sp_idx
30.05± 10.83
sp_run
-117.36± 34.76

Exposure and fluence thresholds

exp_up
310.10± 162.44hour
exp_low
318.50± 194.96hour
low_ft_68
1.4Jy ms
up_ft_68
0.3Jy ms
low_ft_95
2.2Jy ms
up_ft_95
0.5Jy ms

Fit quality

chi_sq
1785016.931
dof
1785072
flag_frac
0.327
