FRB 20200816B

One-off burst

Event ID
116942313
Arrival, 400 MHz
2020-08-16 05:22:30.565 UTC
Right ascension
285.457°
Declination
-3.696°

Loading

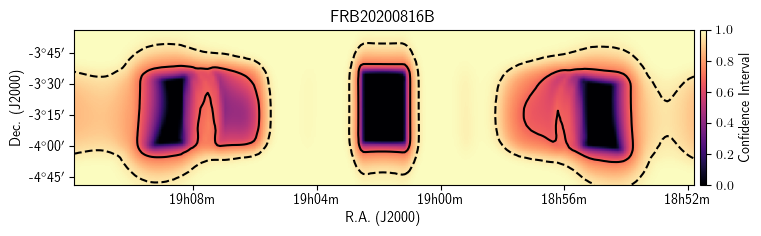

Localization

Loading

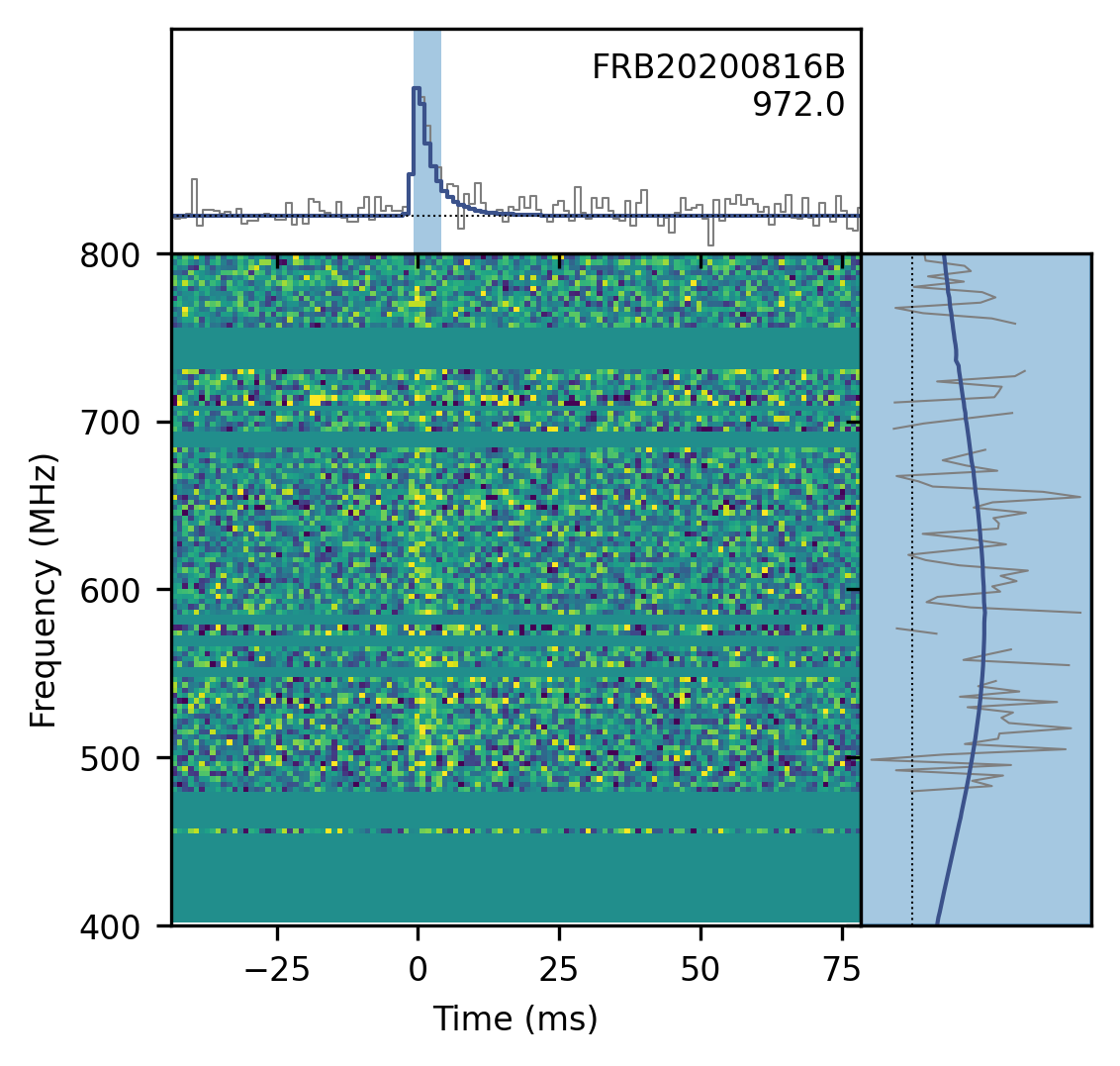

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
285.457± 0.210degrees
dec
-3.696± 0.356degrees
gl
30.82degrees
gb
-3.99degrees

Detection and dispersion

bonsai_snr
12.3
snr_fitb
16.7
bonsai_dm
972.1pc cm⁻³
dm_fitb
971.9874± 0.02609pc cm⁻³
dm_exc_ne2001
465.7pc cm⁻³
dm_exc_ymw16
644.1pc cm⁻³

Arrival time

mjd_400
59077.2239648686± 5.21 × 10⁻⁹MJD
mjd_inf
59077.22367340396± 9.40 × 10⁻⁹MJD

Burst shape

bc_width
0.00492s
width_fitb
0.000396± 0.0000853s
scat_time
0.013877± 0.0021673s

Flux and spectrum

flux
2.19± 0.79Jy
fluence
10.90± 2.98Jy ms
peak_freq
492.9MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
1.94± 2.22
sp_run
-4.66± 2.64

Exposure and fluence thresholds

exp_up
73.59± 47.18hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
10.9Jy ms
low_ft_95
—
up_ft_95
19.4Jy ms

Fit quality

chi_sq
1594124.969
dof
1594397
flag_frac
0.399
