CHIME/FRBPublic data

FRB 20200824B

One-off burst

Event ID
121510885
Arrival, 400 MHz
2020-08-24 20:15:02.266 UTC
Right ascension
156.776°
Declination
49.034°

Loading

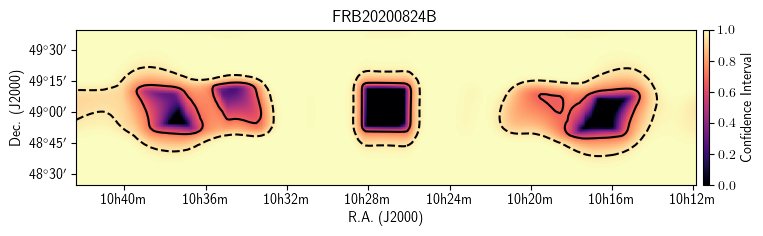

Localization

Loading

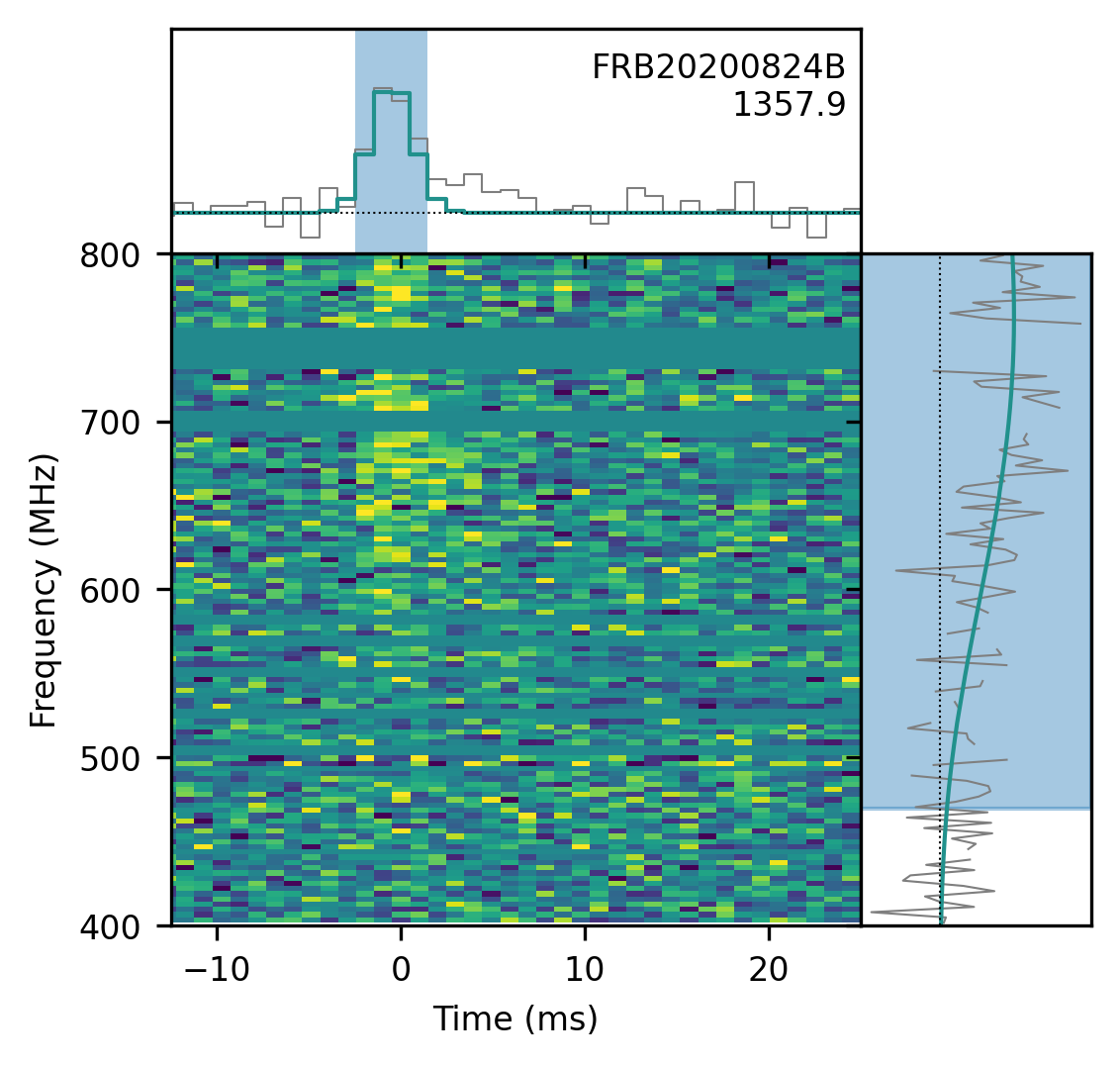

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
156.776± 0.199degrees
dec
49.034± 0.198degrees
gl
164.83degrees
gb
54.67degrees

Detection and dispersion

bonsai_snr
16.2
snr_fitb
19.3
bonsai_dm
1357.1pc cm⁻³
dm_fitb
1357.9334± 0.04892pc cm⁻³
dm_exc_ne2001
1322.9pc cm⁻³
dm_exc_ymw16
1334.8pc cm⁻³

Arrival time

mjd_400
59085.84377622806± 9.95 × 10⁻⁹MJD
mjd_inf
59085.84336903188± 1.77 × 10⁻⁸MJD

Burst shape

bc_width
0.00393s
width_fitb
0.001047± 0.0000778s
scat_time
0.000000s

Flux and spectrum

flux
0.60± 0.24Jy
fluence
2.73± 0.85Jy ms
peak_freq
761.7MHz
low_freq
469.5MHz
high_freq
800.2MHz
sp_idx
12.66± 4.64
sp_run
-9.84± 4.35

Exposure and fluence thresholds

exp_up
115.85± 60.34hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
2.2Jy ms
low_ft_95
—
up_ft_95
3.8Jy ms

Fit quality

chi_sq
2015715.689
dof
2016084
flag_frac
0.240
