CHIME/FRBPublic data

FRB 20200909B

One-off burst

Event ID
133634735
Arrival, 400 MHz
2020-09-09 14:52:39.049 UTC
Right ascension
92.145°
Declination
56.172°

Loading

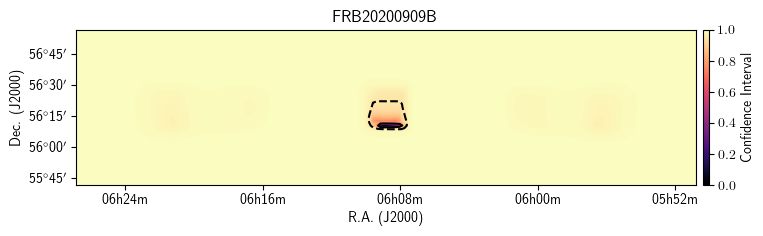

Localization

Loading

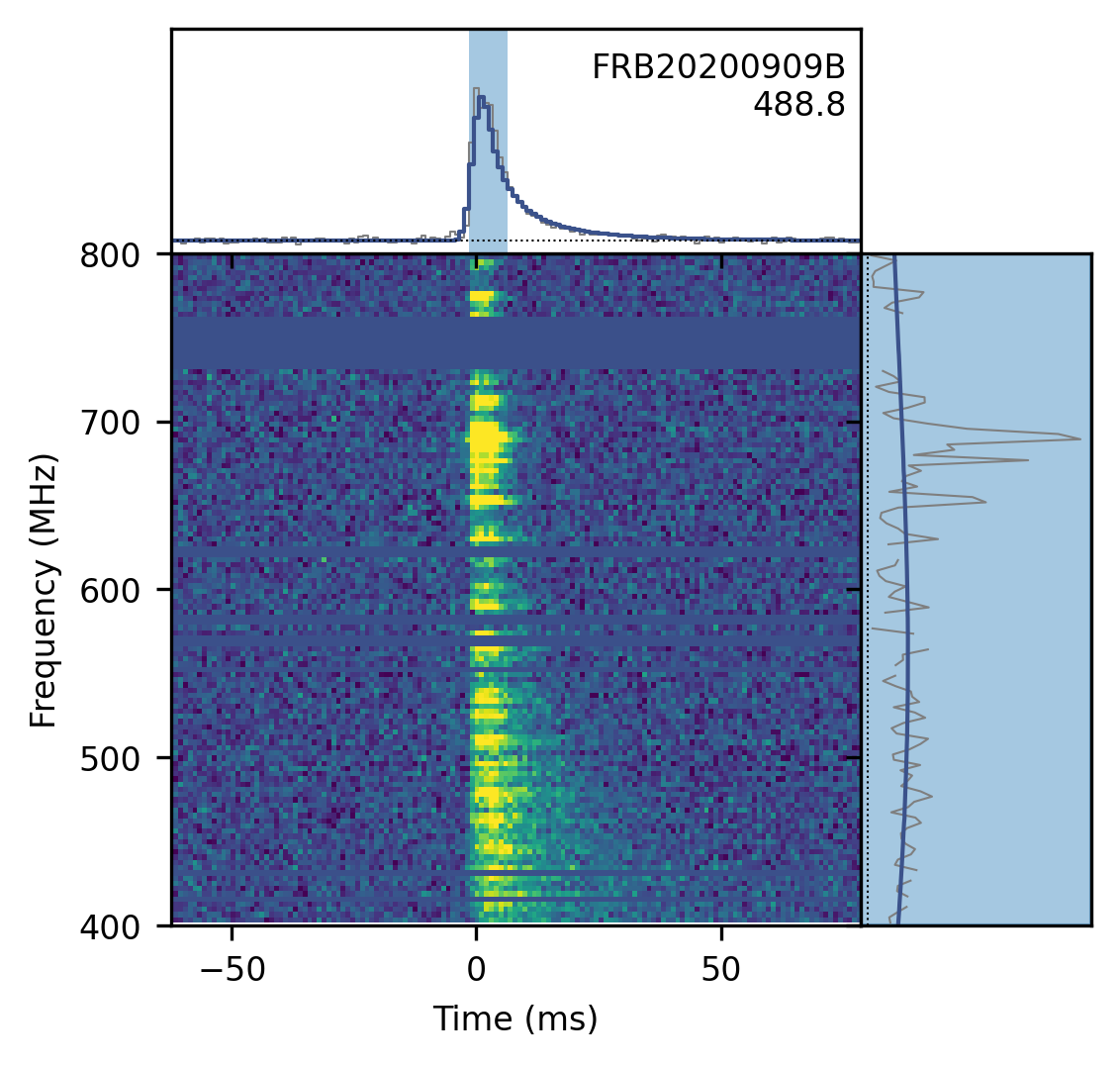

Waterfall

Notes

  • The pulse emission region was extended during fluence estimation.

Position

ra
92.145± 0.098degrees
dec
56.172± 0.016degrees
gl
157.75degrees
gb
16.66degrees

Detection and dispersion

bonsai_snr
69.9
snr_fitb
179.9
bonsai_dm
485.2pc cm⁻³
dm_fitb
488.8300± 0.00461pc cm⁻³
dm_exc_ne2001
399.1pc cm⁻³
dm_exc_ymw16
377.8pc cm⁻³

Arrival time

mjd_400
59101.61989640055± 8.80 × 10⁻¹⁰MJD
mjd_inf
59101.619749817735± 1.64 × 10⁻⁹MJD

Burst shape

bc_width
0.00786s
width_fitb
0.001302± 0.0000377s
scat_time
0.021531± 0.0003949s

Flux and spectrum

flux
3.81± 0.70Jy
fluence
39.05± 6.75Jy ms
peak_freq
400.2MHz
low_freq
400.2MHz
high_freq
800.2MHz
sp_idx
-1.93± 0.10
sp_run
-0.06± 0.14

Exposure and fluence thresholds

exp_up
136.07± 40.99hour
exp_low
0.00± 0.00hour
low_ft_68
—
up_ft_68
5.6Jy ms
low_ft_95
—
up_ft_95
8.8Jy ms

Fit quality

chi_sq
1971410.030
dof
2003771
flag_frac
0.245
